Aluminium Silicate Fiber Paper for Insulation for Electric Apparatus
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:

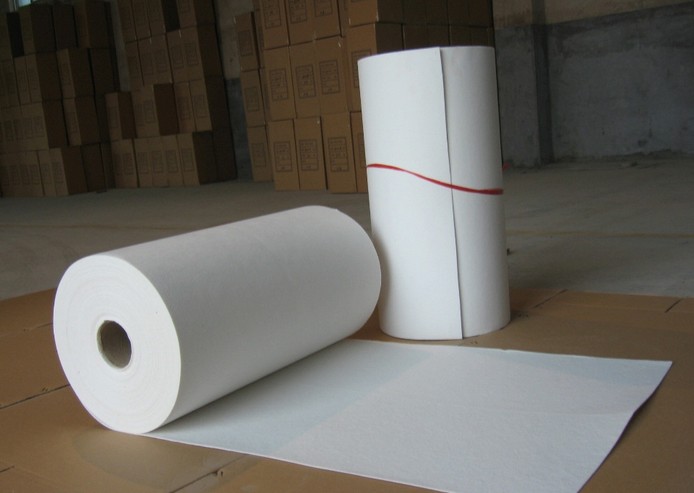

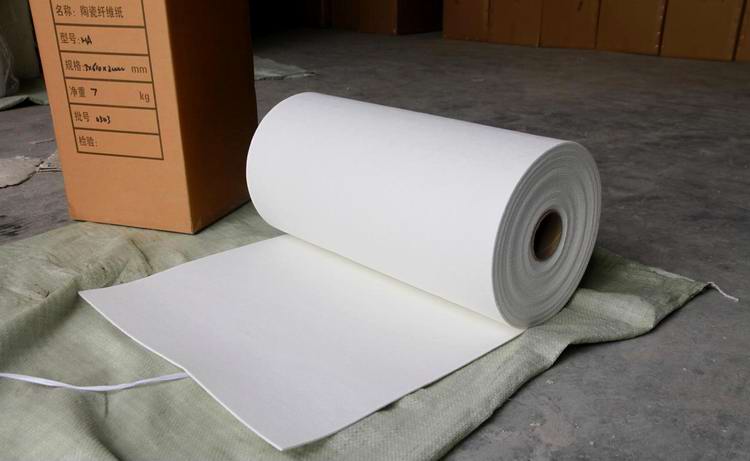

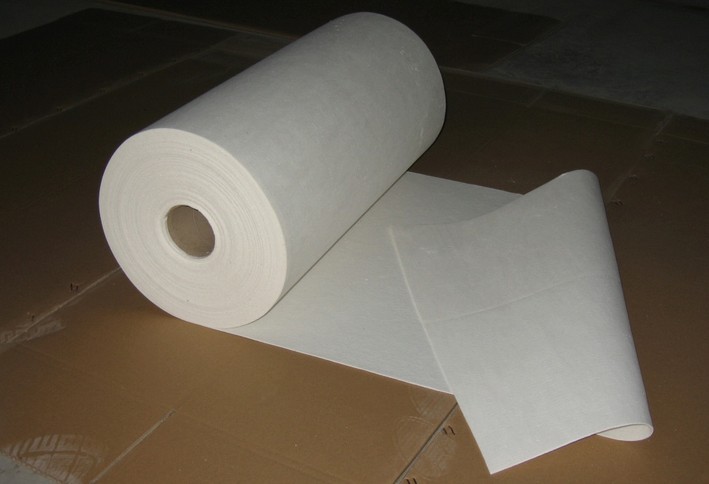

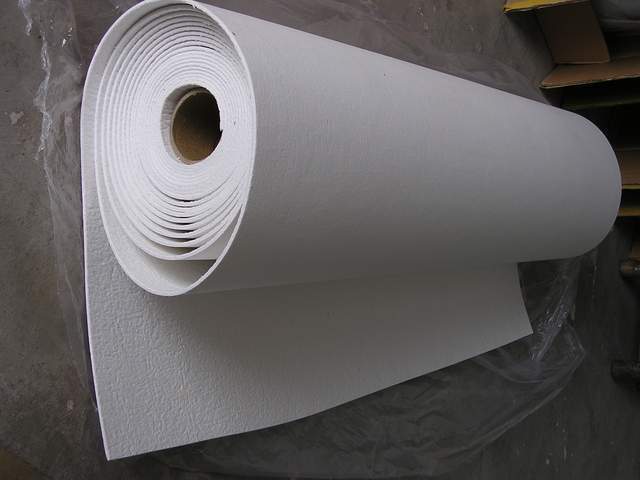

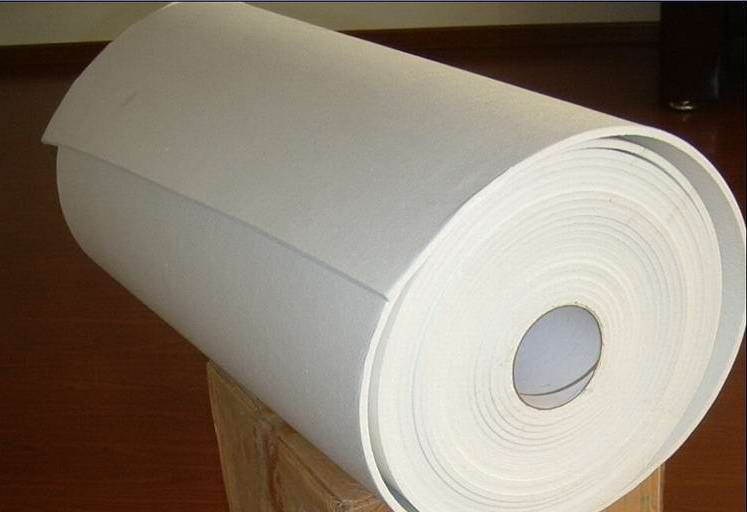

Ceramic fiber, also known as aluminium silicate fiber, are a new type of lightweight refractory material. The material has the advantages of light bulk density, high temperature resistance, good thermal stability, low heat conductivity, small heat capacity, small thermal expansion and good thermal insulation. After special processing, it can be made into Ceramic fiber module, ceramic fiber board, ceramic fiber felt, ceramic fiber rope ,ceramic fiber blanket, ceramic fibre paper and other products.
Characteristic:
1. Uniform thickness and smooth appearance;
2. Contains no asbestos and anticorrosion;
3. Low heat storage;
4. Low thermal conductivity;
5. Good flexibility and toughness and resistance to avulsion;
6. Excellent chemical stability;
7. High temperature filtration;
8. Excellent electric insulation and sound insulation;
Teachnical Data:
Item | ZYC-STD | ZYC-HP | ZYC-HA | ZYC-HZ | |
Classification Temperature (farenhite) | 1260 | 1260 | 1360 | 1430 | |
Permanent Linear Change(%) | 950x24h ≤-3.5 | 1100x24h ≤-3.5 | 1200x24h ≤-3.5 | 1300x24h ≤-3.5 | |
Thermal Conductivity (W/m.k) | 400 | 0.07 | 0.07 | 0.069 | 0.068 |
600 | 0.09 | 0.09 | 0.088 | 0.087 | |
800 | 0.12 | 0.12 | 0.11 | 0.1 | |
Organic Content(%) | 10 | 8 | 8 | 8 | |
Tensile Strength (≥Mpa) | 0.5 | 0.65 | 0.7 | 0.75 | |
Density (kg/m3) | 190-220 | ||||
Moistures(%) | ≤1 | ||||
Size (mm) | 40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5 | ||||
Thickness (mm) | 0.5-6 | ||||
Application:
◎ Industrial insulation, sealing, anti-corrosion materials.
◎ Insulation for electric apparatus.
◎ Insulation materials for apparatus and electrothermal components.
◎ Automotive industry insulation and sound absorption function.
◎ Expansion joint filler material.
◎ Isolation for construction material, metallurgy and glass industries.
◎ Molten metal sealing gasket.
◎ Fireproof material.
In order to better meet your personalized needs and ensure that the customized ceramic fiber paper fully meets your usage scenarios and performance requirements, the following is a detailed description of the customization requirements we provide for you. Please read it carefully and fill in the relevant information according to the actual situation, so that we can provide you with accurate customized services.
I. Product specification requirements
(1) Size
Length: Please specify the specific length of the required ceramic fiber paper (unit: mm). For example, do you need standard sizes (such as 40,000mm, 30,000mm, etc.) or special lengths (such as 50,000mm, 60,000mm, etc.)?
Width: Please specify the width of the ceramic fiber paper (unit: mm). Common widths are 1220 mm, 610 mm, etc. If you have other width requirements, please elaborate.
Thickness: The thickness of ceramic fiber paper ranges from 0.5mm to 6mm. Please choose the appropriate thickness according to your application requirements. For example, thicker paper may be needed for high-temperature filtration to enhance strength and filtration effect, while thinner paper may be more suitable for thermal insulation.
(2) Density
The density range of ceramic fiber paper is 190-220kg/m3. Density will affect the strength, thermal insulation and service life of paper. If your application scenario requires high thermal insulation performance, it is recommended to choose paper with lower density; If the requirements for strength and durability are higher, you can choose paper with higher density.
(3) Quantity
Please specify the specific quantity of ceramic fiber paper you need (unit: roll, sheet or square meter, etc.). If you have long-term cooperation plans or bulk purchase requirements, please let us know in advance so that we can provide you with more favorable prices and more stable supply guarantee.
II. Performance requirements
(1) Temperature resistance
Ceramic fiber paper has good high temperature resistance, the highest temperature resistance can reach 1300℃. Please specify the required temperature resistance level according to your actual use environment. For example, if it is used for thermal insulation of high-temperature equipment in metallurgical industry, paper with temperature resistance above 1200℃ may be needed; For thermal insulation of ordinary industrial equipment, paper with temperature resistance of about 1000℃ can meet the demand.
(2) Thermal insulation performance
Thermal conductivity: Ceramic fiber paper has low thermal conductivity, which can effectively prevent heat transfer. Please specify the required thermal conductivity range according to your thermal insulation requirements. For example, the thermal conductivity should be as low as possible (for example, 0.068-0.07 W/m·k) to reduce heat loss when it is used for high temperature furnace wall insulation.
Heat capacity: ceramic fiber paper with low heat capacity can respond quickly when the temperature changes, reducing the storage and release of heat. If you need to heat up or cool down the equipment quickly, please choose paper with lower heat capacity.
(3) chemical stability
Ceramic fiber paper has good chemical stability and can resist the erosion of many chemicals. Please tell us the kinds of chemicals (such as acid, alkali, salt, etc.) that you may come into contact with in your use environment, so that we can choose the appropriate chemical composition and treatment process for you to ensure the stability and service life of the paper in a specific chemical environment.
(4) Mechanical properties
Tensile strength: the tensile strength of ceramic fiber paper ranges from 0.5 MPa to 0.75 MPa. Please select the appropriate tensile strength according to your application requirements. For example, when used to make heat insulation gaskets or sealing materials, the tensile strength should be high enough to withstand certain mechanical stress; When used for simple thermal insulation filling, lower tensile strength may be enough.
Flexibility: Ceramic fiber paper has good flexibility and can adapt to different installation environments and shape requirements. If you need to bend or fold the paper during installation, please specify the flexibility requirements so that we can provide you with suitable products.
III. Requirements for application fields
(1) Industrial thermal insulation
If you need ceramic fiber paper for thermal insulation of industrial equipment, please specify the type of equipment (such as high-temperature furnace, reaction kettle, pipeline, etc.), working temperature range, thermal insulation parts (such as furnace wall, roof, outer wall of pipeline, etc.) and thermal insulation requirements (such as thermal insulation effect, installation method, etc.). For example, for the wall insulation of high-temperature furnace, it may be necessary to use thick and high-density ceramic fiber paper, and adopt special installation and fixing methods to ensure the insulation effect and safety.
(2) sealing material
If it is used for sealing purposes, such as flange sealing of high-temperature equipment, pipeline interface sealing, etc., please tell us the size, shape, working pressure and temperature range of the sealing part, as well as the sealing requirements (such as sealing performance and durability, etc.). We will customize the appropriate ceramic fiber paper sealing material for you according to your needs to ensure that it has good sealing effect and stability in high temperature and high pressure environment.
(3) high temperature filtration
When ceramic fiber paper is used to filter high-temperature gas or liquid, please provide the properties (such as particle size, chemical composition, etc.), filtration temperature, filtration pressure and filtration accuracy requirements of the filter medium. By adjusting the thickness, density and pore structure of the paper, we can customize ceramic fiber paper products to meet your specific filtering needs.
(4) Electrical insulation
When used in the electrical field, such as insulation of transformers, motors and other equipment, please specify the required electrical insulation level (such as voltage withstand level, insulation resistance, etc.), working temperature range and installation environment (such as wet environment and high temperature environment, etc.). We will choose suitable ceramic fiber paper for you to ensure that it has good insulation performance and safety and reliability in electrical equipment.
IV. Other special requirements
(1) Color
The standard color of ceramic fiber paper is white. If you have other color requirements, such as black and gray, please let us know in advance and we will try our best to meet your requirements.
(2) Surface treatment
Coating: According to your needs, we can coat the surface of ceramic fiber paper with special coatings, such as waterproof coating, fireproof coating and anticorrosive coating. Please make clear whether coating is needed, and the type and performance requirements of coating.
Printing: If it is necessary to print on ceramic fiber paper (such as logo, pattern, etc.), please provide the printing content, printing method (such as screen printing, inkjet printing, etc.) and printing quality requirements.
(3) Packaging requirements
Please tell us your specific requirements for ceramic fiber paper packaging, such as packaging materials (plastic bags, cartons, etc.), packaging methods (roll packaging, folding packaging, etc.), packaging identification (product name, specification, quantity, production date, etc.) and performance requirements such as moistureproof and shockproof of packaging. We will pack according to your requirements to ensure the safety and integrity of the products during transportation and storage.
(4) Delivery date
Please specify the delivery time you need. We will try our best to meet your delivery requirements according to your order quantity and customization requirements. If you have an urgent order, please communicate with us in advance, and we will give priority to production to ensure timely delivery of products.
(5) Quality assurance and after-sales service
We promise to provide quality assurance for customized ceramic fiber paper. After the delivery of the product, if you encounter any quality problems or need technical support during use, please contact us in time. We will provide you with professional after-sales service, including product consultation, technical guidance, quality complaint handling, etc., to ensure that your rights and interests are protected.
Please fill in the detailed information according to the above customization requirements and feedback the relevant information to us. We will customize ceramic fiber paper products that meet the requirements according to your needs and provide you with quality services. If you have any questions or need further communication.

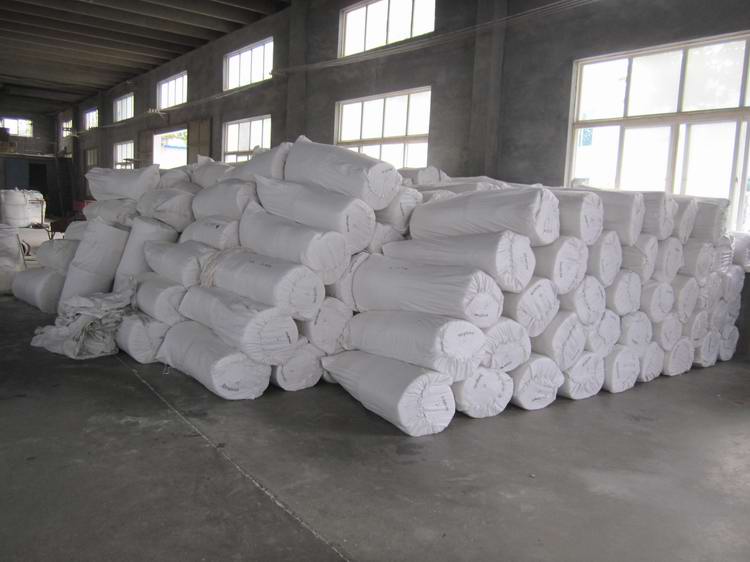

Packaging & shipping:
Packaging:

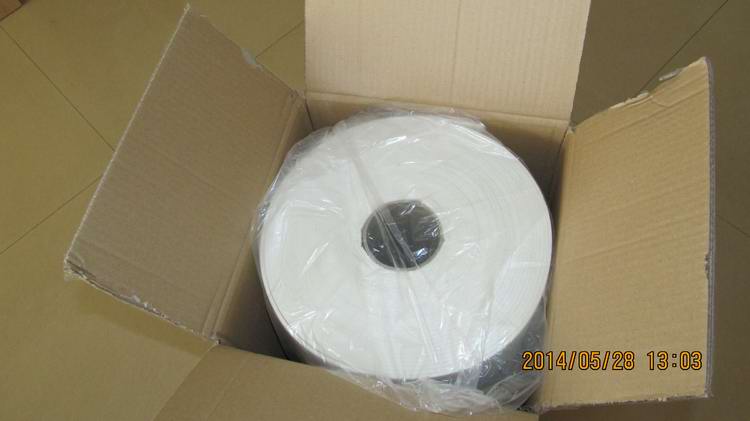

1.Plastic bag 2.Carton
Shipping:
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
