Product Description:

Product Brief Introduction:

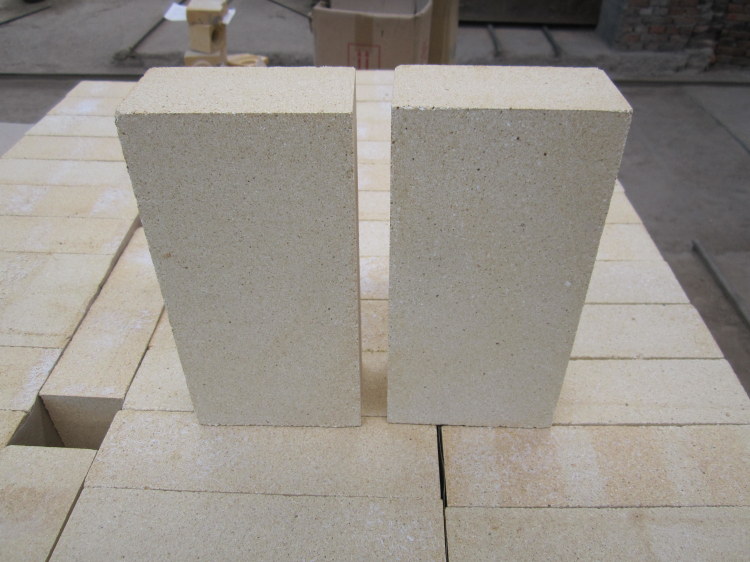

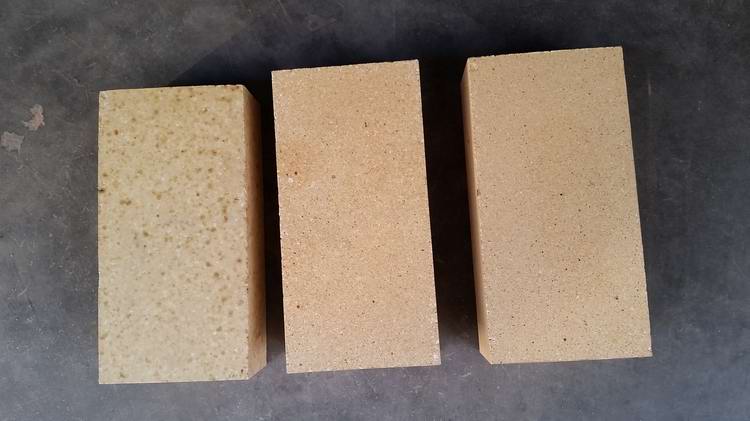

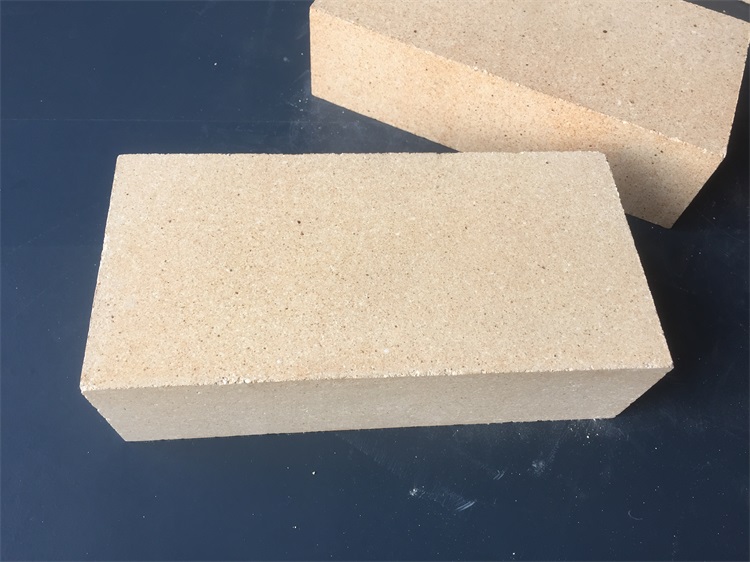

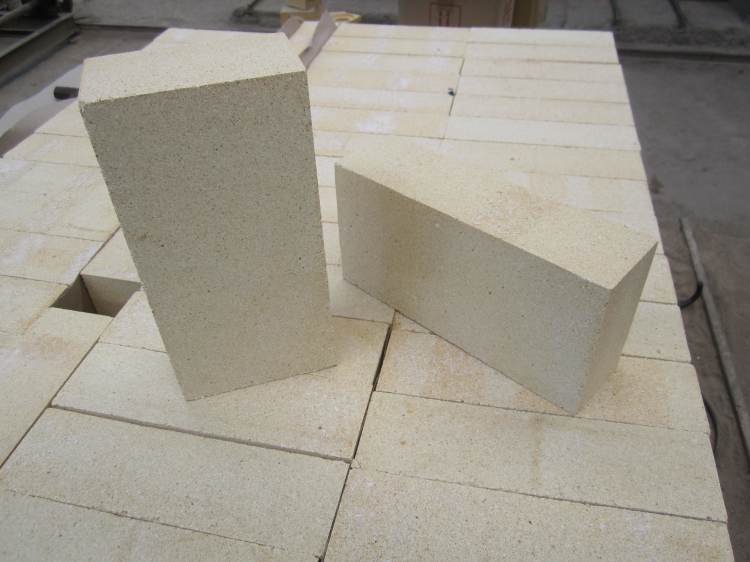

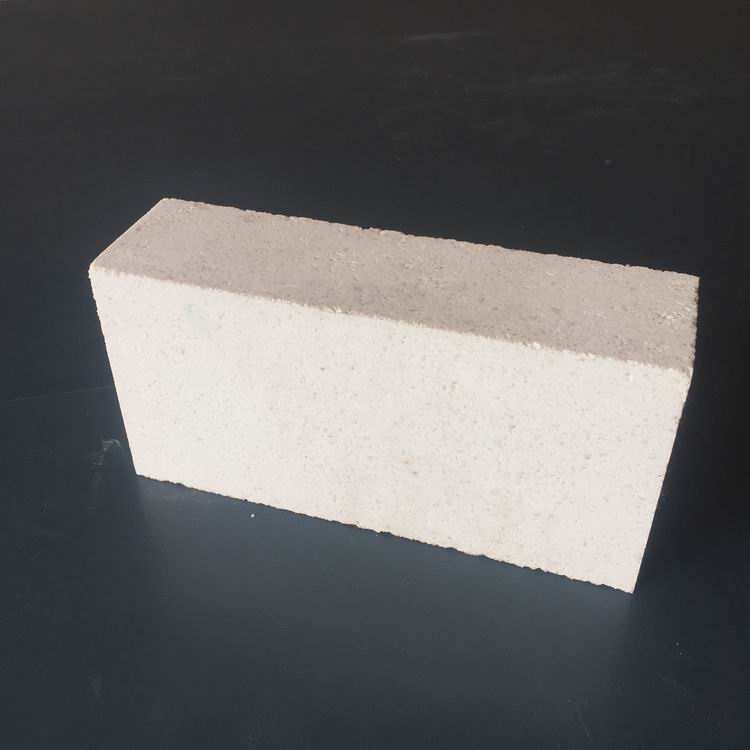

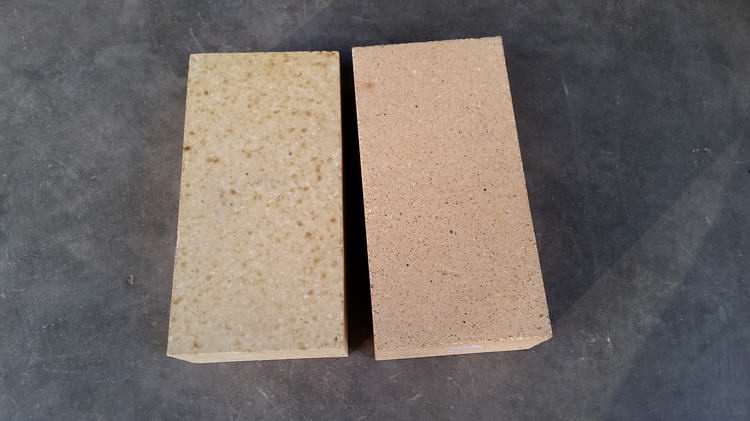

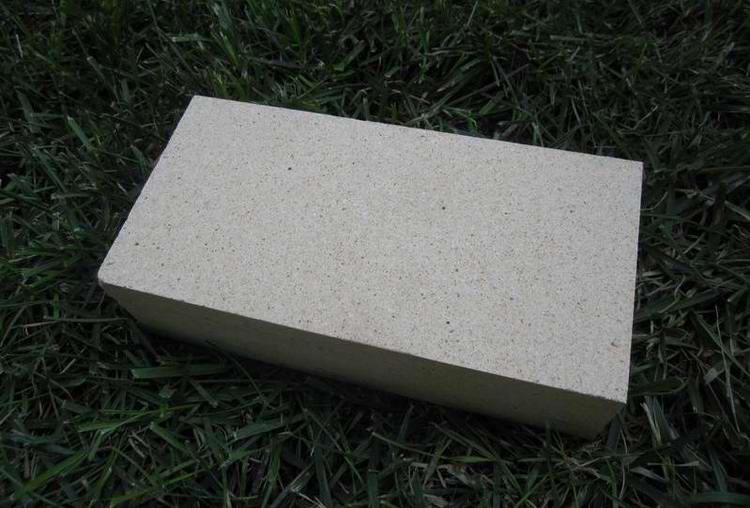

Fire brick is also called refractory brick, It is shaped refractory product. It is made from chamotte or bauxite and combining clay, Through high pressure molding and sintered at high temperature. The AL₂O₃ content range from 30% to 90%.The refractoriness range from 1580°C to 1850°C. It has characteristic of high temperature resistance, corrosion resistance, wear resistance and thermal shock resistance.which decide fire brick is the ideal lining material for various kinds of industrial high temperature furnace and other thermal equipment.

Teachnical Data:

Characteristics:

1. High precision of dimensions.

2. Excellent spalling resistance and wear resistance.

3. Excellent corrosion resistance.

4. Excellent thermal shock resistance.

5. Low iron content and impurities.

6. High-temperature creep rate is low.

7. Excellent volume stability at high temperature.

Application:

These are widely used in liner,Arch,Roof,Combustor,Bottom for various kinds of industrial high temperature furnace and other thermal quipment.

In order to meet your individual needs, we provide customized services. The following are the detailed requirements you need to provide when customizing clay bricks:

I. Product specifications

(1) Size requirements

Please specify the length, width and height of the clay brick you need (unit: mm). We provide a variety of standard sizes, such as 230×114×65mm, 230×114×75mm, 230×114×32mm and so on. The size of arch brick is 230×114×65/55mm, 230×114×65/45mm, etc. The dimensions of wedge-shaped bricks are 230×114×65/55mm and 230×114×65/45mm, etc. If you have special size requirements, please specify, and we will make customized production according to your requirements.

If your project needs a large number of bricks of different sizes, please make a detailed size list, including the quantity requirements of each size brick, so that we can accurately evaluate the production plan and cost.

(2) Shape requirements

In addition to the common straight, arch and wedge bricks, if you need clay bricks with special shapes, such as runner brick, cast steel bricks, round bricks, kiln car bricks, steel lining bricks, large slab bricks, glass kiln bricks, hanging bricks, checker bricks, carbon furnace bricks, anchor bricks and round hole bricks, please provide detailed shape descriptions or drawings. Drawings should include the outline of bricks, the dimensions of each part and the matching relationship with adjacent bricks, so that we can make molds and produce bricks accurately.

II. Chemical Composition and Physical Properties

(1) chemical composition requirements

You can put forward specific requirements for the chemical composition of clay bricks according to the actual use scenarios. For example, the content of alumina (AL₂O₃) is an important factor affecting the performance of clay bricks. The alumina content of our clay bricks is generally in the range of 30%-85%. If you have a specific range of alumina content requirements, please point it out clearly so that we can choose suitable raw materials for production.

At the same time, there are certain restrictions on the contents of other chemical components such as iron (Fe₂O₃) and other impurities. Our standard is that the FeO content should not exceed 2.5% (for some special products such as high alumina bricks, the FeO content is lower, such as 2.0%). If you have stricter requirements on impurity content, please let us know and we will take corresponding measures to control it.

(2) Physical performance requirements

Refractory degree: Refractory degree refers to the performance index that bricks do not soften at high temperature. The fire resistance of our clay bricks is generally in the range of 1580 C-1850 C. Please specify the required fire resistance range according to the service temperature of your furnace and other high-temperature equipment, so that we can choose the appropriate raw material formula and production process to meet the requirements.

Load softening temperature: this is an index to measure the resistance to deformation of brick under the combined action of high temperature and pressure. For example, the load softening temperature (2 kg/cm) of SK-32 clay brick is not lower than 1350°C, and the load softening temperature (2 kg/cm) of SK-38 clay brick is not lower than 1560 C. Please specify the required load softening temperature according to your actual working conditions.

Apparent porosity: Apparent porosity affects the corrosion resistance and thermal insulation performance of brick. The apparent porosity of our clay bricks is generally less than 24%, and the apparent porosity of high alumina bricks is generally below 22%. If you have special requirements for apparent porosity, please let us know, and we will control it by adjusting the production process and raw material ratio.

Volume density: Volume density reflects the compactness of brick and affects its strength and wear resistance. For example, the bulk density of SK-32 clay brick is 2.0-2.1g/cm³, and that of SK-38 clay brick is 2.4-2.6g/cm³. Please specify the appropriate volume density range according to your use requirements.

Compressive strength at room temperature: this is an index to measure the ability of brick to resist pressure at room temperature. The room temperature compressive strength of our clay bricks is generally above 250 kg/cm, and the room temperature compressive strength of high-alumina bricks is higher, for example, the room temperature compressive strength of SK-38 clay bricks is not lower than 550 kg/cm. Please specify the required compressive strength at room temperature according to your actual use scenario.

Thermal expansion rate: the thermal expansion rate affects the dimensional stability of bricks during high temperature use. The thermal expansion rate of our clay bricks is between 0.4% and 0.7% (1000 C). If you have special requirements for thermal expansion rate, please let us know, and we will control it by optimizing raw material formula and production process.

Permanent linear change rate: this is an index to measure the dimensional change of brick after firing at high temperature. For example, under the condition of 1500°C×2Hrs, the change rate of permanent line is generally between 0 and-0.4%. Please specify the range of permanent line change rate according to your use requirements.

III. Quality Standards and Inspection Requirements

(1) Quality standards

We follow KS, JIS, ASTM, ASME, AMS, DIN and other international quality standards for production. If you have specific quality standards, please clearly point out that we will produce according to the standards you specify and ensure that the products meet the requirements of the standards.

(2) Inspection requirements

You can ask us to carry out specific inspection items in the production process. For example, in addition to our routine chemical analysis (including aluminum oxide, iron and other components detection), physical performance detection (such as fire resistance, load softening temperature, apparent porosity, etc.) and appearance inspection (including dimensional tolerance, deformation, cracks, corner defects, molten holes, color, etc.), if you need to add other special inspection items, such as ultrasonic flaw detection and X-ray detection, please inform us in advance.

IV. Packaging and Transportation Requirements

(1) Packaging requirements

Our standard packaging is to put clay bricks on a tray, fix them with PET packing tape and cover them with plastic film for protection. The standard export pallet size is 1000×1000mm, and the loading weight of each pallet is 1.0-2.0 tons. If you have special packaging requirements, such as using special packaging materials, adding protective measures for packaging (such as moistureproof, shockproof, etc.), changing the tray size or loading weight, please explain in detail, and we will design and adjust the packaging according to your requirements.

(2) Transportation requirements

We offer various modes of transportation, including 20-foot containers (which can carry 24 tons) and 40-foot containers (which can carry 28 tons). If you have any special requirements on the mode of transportation, such as the designated transportation company, transportation route and transportation time, please inform us in advance so that we can arrange a suitable transportation plan. At the same time, if you have requirements for cargo insurance during transportation, please specify the scope and amount of insurance, and we will assist you in handling relevant insurance procedures.

V. Delivery date and payment method

(1) Delivery date

Our standard delivery time is 10-40 days after the order is confirmed. The length of delivery depends on the complexity of your customization requirements, the number of orders and our production schedule. If you have urgent delivery requirements, please clearly tell us the specific delivery date requirements when placing an order, and we will try our best to give priority to production and strive to deliver the products in advance or on time. Please note, however, that the tight delivery date may have a certain impact on product quality and cost, and we will fully communicate and negotiate with you to ensure that the delivery date is met and the product quality is guaranteed.

(2) Method of payment

We accept various payment methods, including T/T, L/C, Western Union, MoneyGram, Paypal, etc. Please choose the appropriate payment method according to your actual situation and let us know clearly when placing an order. Different payment methods may involve different handling fees and funds arrival time. Please understand and consider relevant factors in advance. For example, telegraphic transfer is a common and safe payment method, and the funds arrive relatively quickly, but it may generate certain bank charges; Letter of credit is a relatively safe way of trade settlement, but the procedures are more complicated, and it is necessary to pay a certain opening fee and deposit.

VI. Other requirements

(1) Sample requirements

If you need samples for testing or evaluation, please let us know in advance. We provide stock samples, which you can get for free, but you have to bear the transportation cost of the samples. Please determine the quantity and specifications of samples according to your actual needs, and we will arrange delivery for you as soon as possible.

(2) Application description

Please explain in detail what kind of equipment or scene you plan to apply customized clay bricks to, such as blast furnace and hot blast stove in iron and steel manufacturing industry, smelting furnace and refining furnace in nonmetal industry, cement kiln and glass kiln in building materials industry, coke oven and boiler in energy and incineration field, fireplace and pizza oven in civil field, etc. At the same time, explain the equipment's service temperature range, working environment (such as corrosive gas, mechanical wear, etc.), service life requirements and other information, which will help us better understand your needs and provide you with products that are more in line with actual use requirements.

(3) Special requirements

If you have any other special requirements, such as product color requirements (although the color of clay brick is usually affected by raw materials and firing process, it can be adjusted to some extent by adjusting raw material ratio or surface treatment), environmental protection requirements (such as special provisions on environmental protection indicators of products during production or use) and brand identification requirements (whether it is necessary to print specific brand logo or words on products, etc.), please let us know at the same time, and we will try our best to meet your requirements.

In order to ensure that we can accurately understand your customization needs and provide products that meet the requirements, please provide the above information in as much detail as possible. If you are uncertain about some requirements or have any questions, please feel free to contact our sales or technical support team, and we will provide you with professional advice and help.

Quality Control:

We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.

Our quality inspection items:

1. Professional quality testing.

① Chemical analysis.②Physical properties.

2. Appearance check.

①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .

Packaging & shipping:

Packaging:

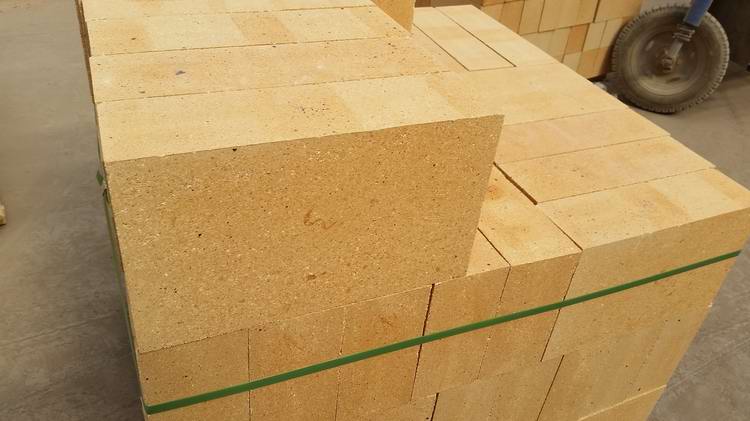

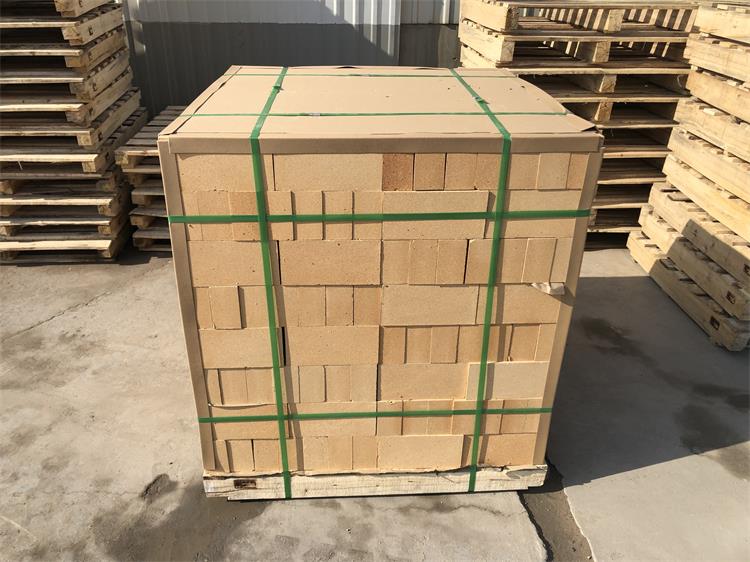

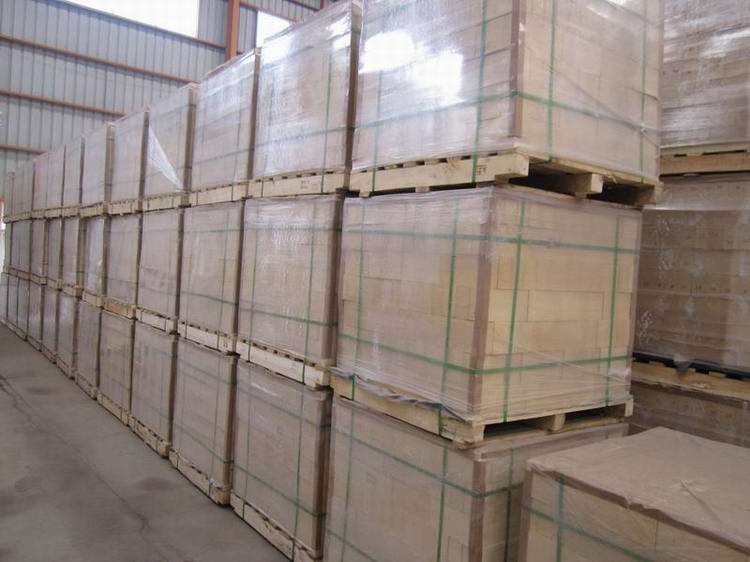

1. Fire bricks will be packed by pallet with PET strap fixed , covering by plastic films.

2. The size of standard export pallet is 1000*1000mm.

Load weight of each pallet:1.0-2.0 Tons.

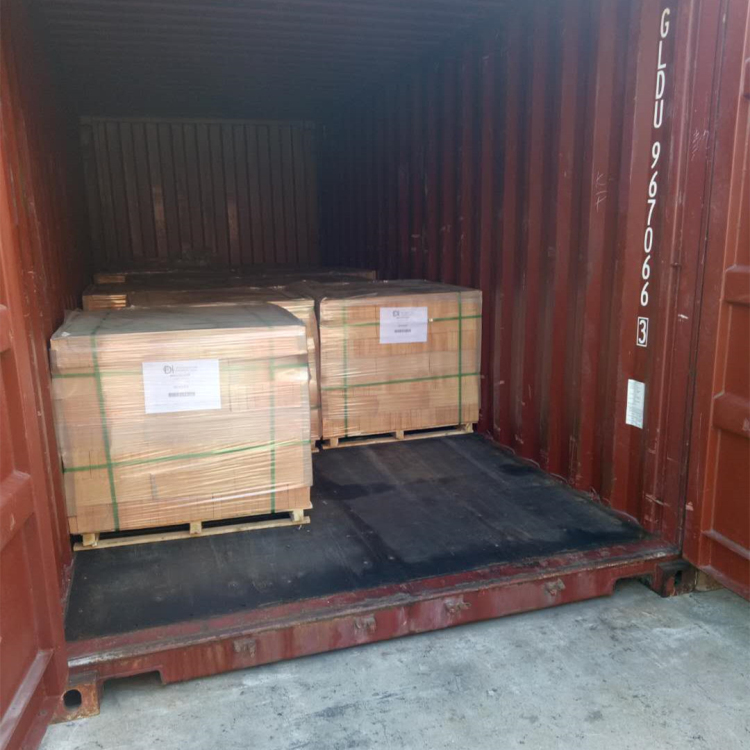

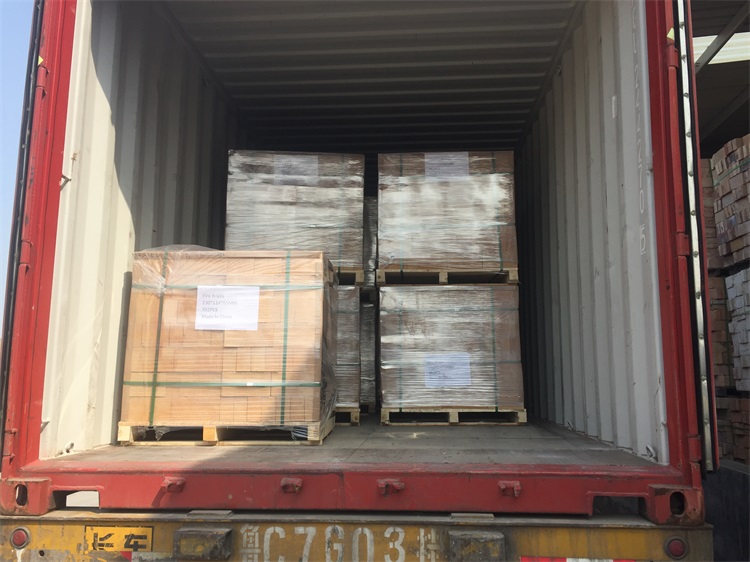

Shipping:

20 Foot Container can be loaded 24Tons,

40 Foot Container can be loaded 28Tons.

FAQ:

Q1. How to get the exact price?

A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.

Q2. What is the service life of your bricks?

A: The service life of different bricks is unlike.It also depends on your using condition and method.

Q3. How to slove the quality problems?

A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.

Company Description:

ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.

1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.

2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.

3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).

Our Services:

In order to make you more assured of our products, we can provide you with more services:

1. We can provide you with photos of every link of the product.

2. We can provide you with the authoritative test report of the product.

3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.

4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
