Calcined kaolin of rock series, also known as chamotte or flint clay , has heat resistance and sinterability,mainly used for refractory materials and investment casting materials. It is formed by high temperature calcination of kaolin ore. The common colors of kaolin after high temperature calcination are: pure white, light gray, light Yellow brown.
The composition of calcined kaolin is stable, the teture is uniform, the structure is compact, the glaze is bright and magnetic. The main chemical components are AL2O3 and SiO2, accompanied by a small amount of Fe2O3 and trace amounts of Na2O, K2O and other impurities. The high-quality coke gemstone has a refractoriness of over 1750 °C. The main mineral phase is mullite, which accounts for 35 to 55%, followed by glass phase and cristobalite.
1. High refractoriness.
2. Physicochemical stability.
3. Bulk density high .
4. Low porosity.
5. Low water absorption.
6. Fully calcined
7. Low impurity content.
8. Pure white.
Item/Grade | YNS45 | YNS45 | YNS44 | YNS44 | YNS43 | YNS42 | YNS40 | YNS36 |
A | B | A | B | |||||
AL2O3 % | 45-48 | 45-47 | 44-47 | 44-46 | 43-45 | 42-45 | 40-44 | 36-42 |
SiO2 % | 49-52 | 49-52 | 50-53 | 50-53 | 50-54 | 50-54 | 52-55 | 52-55 |
Fe2O3 % (max) | 0.8 | 1.1 | 1.3 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 |
Ti02 % (max) | 0.8 | 0.8 | 0.9 | 0.9 | 1.0 | 1.1 | 1.2 | 1.3 |
K2O+Na2O % (max) | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 |
Ca0+Mg0 % (max) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 |
Bulk density g/cm³(min) | 2.58 | 2.55 | 2.52 | 2.50 | 2.45 | 2.40 | 2.37 | 2.30 |
Refractoriness °C (min) | 1780 | 1770 | 1760 | 1750 | 1740 | 1720 | 1710 | 1700 |
Impurities % (max) | 0.5 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 |
Calcined kaolin is mainly used for manufacturing high-quality refractory products, refractory castable, sagger, kiln furniture, crucibles, ceramic fiber products, precision casting sand, ceramics products, etc.

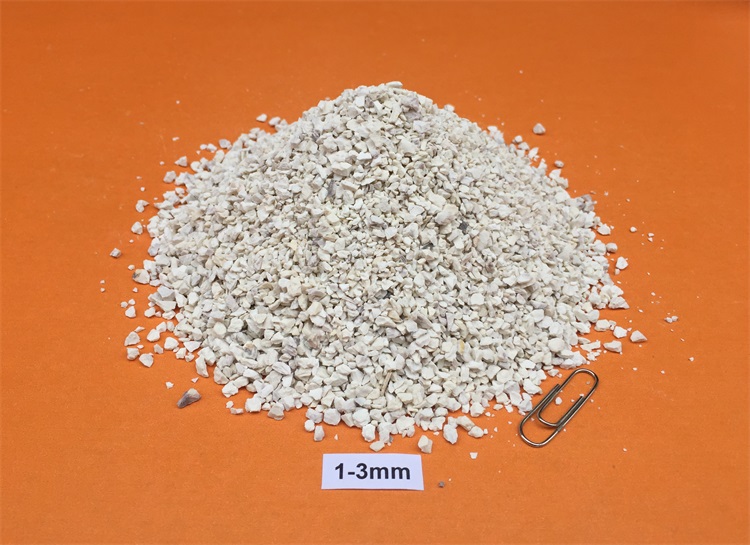

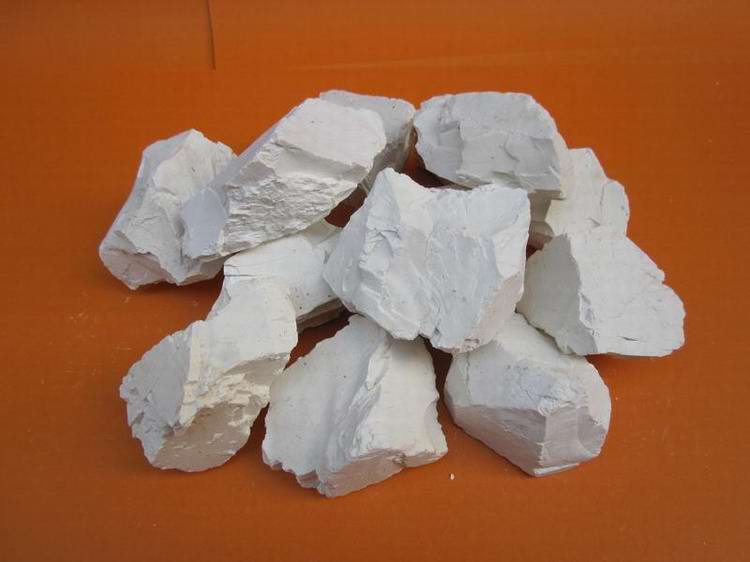

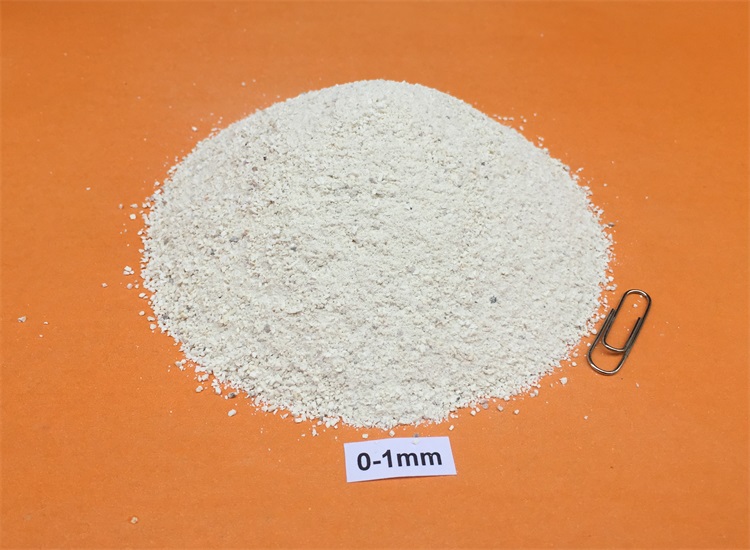

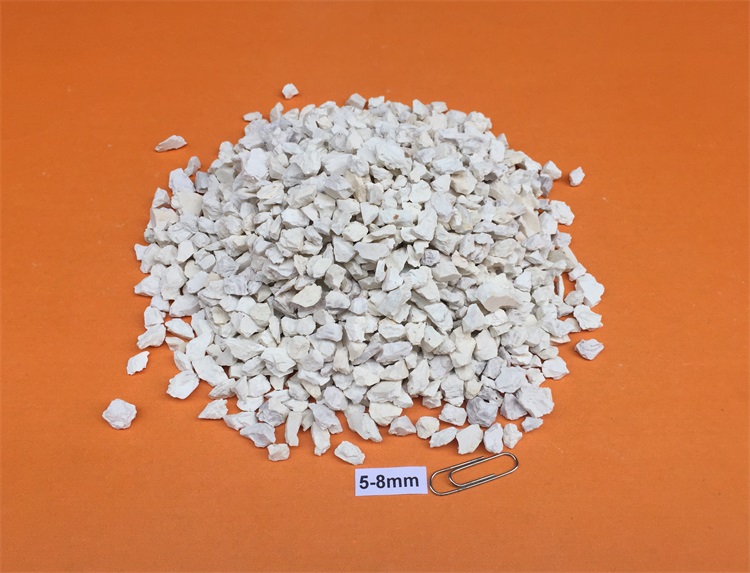

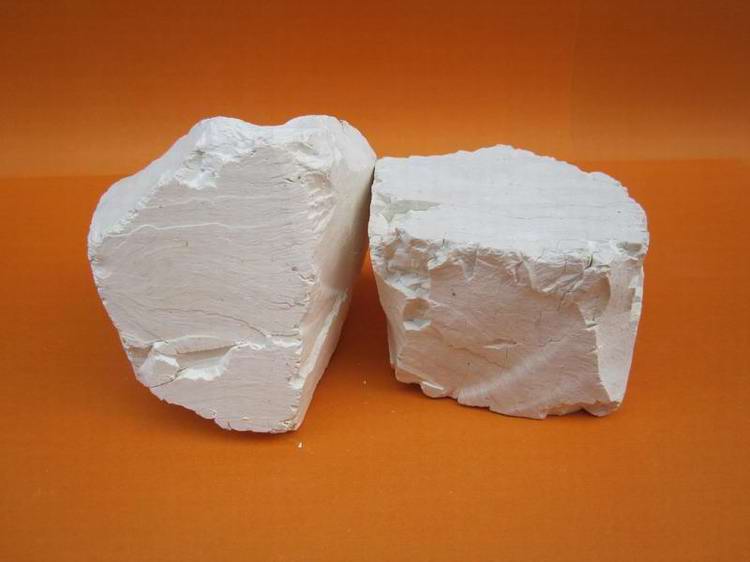

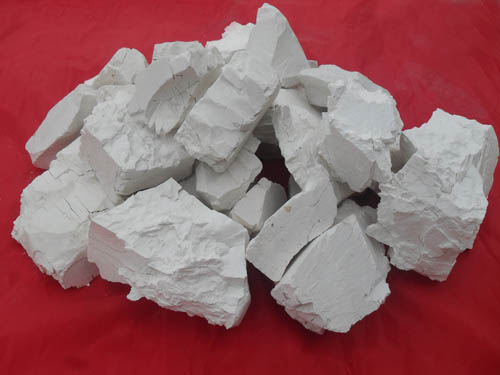

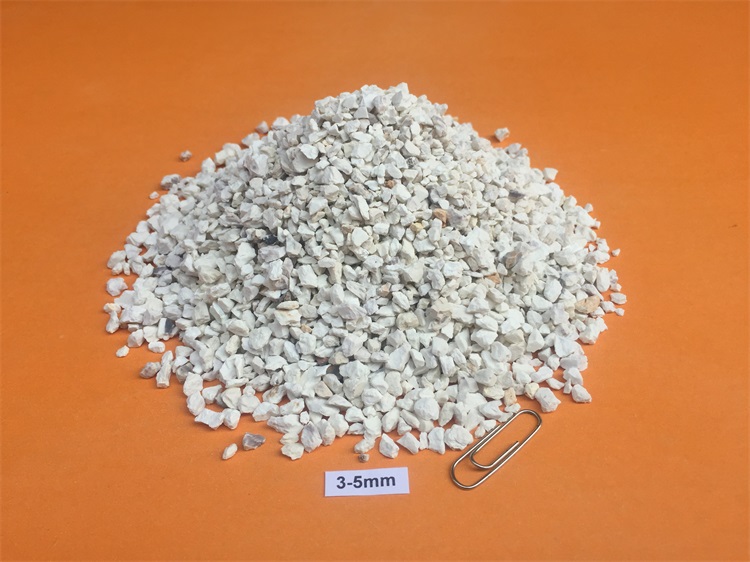

Blocks: Various sizes can be provided, such as 0-1mm, 1-3mm, 3-5mm, 5-8mm, 8-15mm, 0-5mm, 0-50mm, etc.

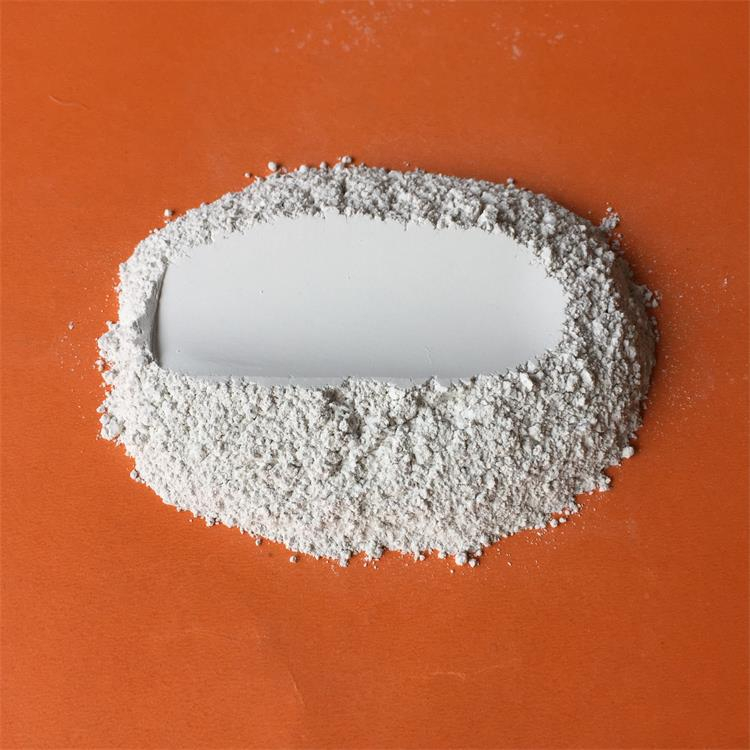

Powder: There are powders with different fineness such as -200 mesh, -270 mesh and -325 mesh to choose from.
Sand for casting: For investment casting purposes, we can customize sand with different particle sizes such as 8-16 mesh, 16-30 mesh, 30-60 mesh, 30-80 mesh, 60-80 mesh and 80-120 mesh.
Chemical composition: The contents of AL₂O₃, SiO₂, Fe₂O₃, TiO₂, KO, Na₂O, CaO and MgO can be adjusted and controlled according to the specific needs of customers to meet specific use requirements.
Technical specifications: according to the customer's application scenarios and related standards (such as KS, JIS, ASTM, ASME, AMS, DIN, etc.), customized products that meet specific technical indicators, such as fire resistance, whiteness, density, porosity, water absorption, etc.
Demand communication: the customer gets in touch with the supplier to explain in detail the purpose, specific performance requirements and expected application scenarios of the calcined kaolin, so that the supplier can accurately understand the customer's customized needs.
Sample supply: the supplier provides relevant samples for customers to test and evaluate according to their needs. Customers can test the chemical composition, physical properties, particle size distribution and other aspects of the sample to determine whether the sample meets the requirements.
Technical confirmation: after receiving the sample, the customer will test and analyze all the indicators of the sample. If the sample meets the requirements, the customer and supplier will confirm the technical specifications and quality standards of the product and sign relevant technical agreements.
Contract signing: After the technical confirmation is correct, both parties sign a formal sales contract. The specification, quantity, price, delivery time, payment method, quality assurance clause, liability for breach of contract, etc. of the product shall be specified in the contract.
Production customization: the supplier organizes production according to the requirements of the contract and technical agreement. In the production process, strictly control the product quality to ensure that the products meet the customer's customization requirements.
Quality inspection: After the production is completed, the supplier's quality inspection department conducts strict quality inspection on the products, including chemical composition analysis, physical performance test and particle size distribution detection. Only qualified products can be packaged and delivered.
Packaging and delivery: according to the packaging requirements of customers, the products are packaged. After the packaging is completed, the products will be sent to the place designated by the customer according to the delivery time and transportation mode agreed in the contract.
After-sales service: the supplier provides corresponding after-sales service after the product is delivered. If the customer finds product quality problems during use, the supplier shall communicate with the customer in time, negotiate solutions and bear corresponding responsibilities according to the contract.
Clear requirements: When customizing calcined kaolin, customers need to explain their requirements in detail as much as possible, including the purpose, performance requirements and quality standards of the products, so that suppliers can provide products that meet the requirements.
Sample testing: sample testing is a very important link in the customization process, and customers should fully test and evaluate the samples to ensure that the samples meet the requirements. If there is a problem with the sample, it should communicate with the supplier in time and put forward the modification opinions.
Technical Agreement: Signing a technical agreement is an important measure to protect the rights and interests of both parties. The technical agreement should specify the technical specifications, quality standards and inspection methods of the products in detail to avoid disputes caused by inconsistent understanding.
Quality monitoring: customers can ask suppliers to provide quality monitoring records in the production process to ensure the stability of product quality. At the same time, customers can also conduct on-site inspections during the production process to understand the production progress and quality.
Delivery date: The delivery date of customized products may be affected by many factors, such as the supply of raw materials, the status of production equipment and the adjustment of production technology. The customer should fully communicate with the supplier, arrange the delivery time reasonably, and specify the liability for breach of contract in the contract.
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Particle size distribution.
2. Chemical analysis.
3. Physical properties.
4. Mineralogical composition.
5. PH value.

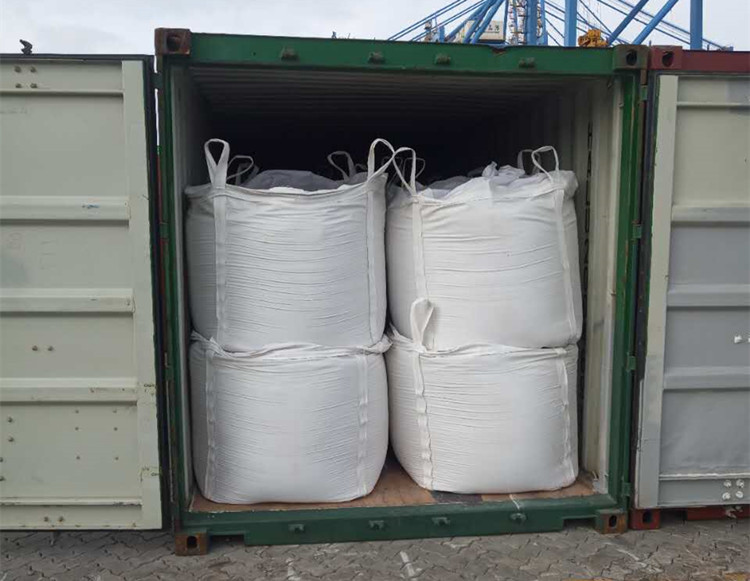

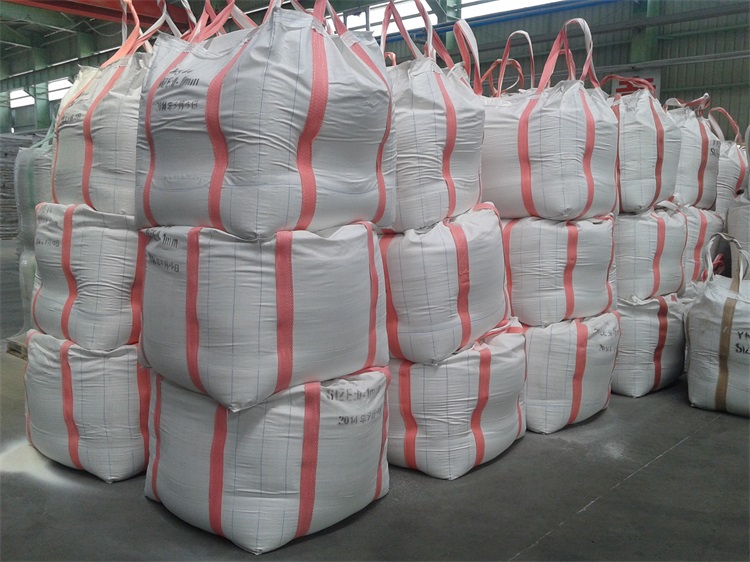

1. 25kg plastic woven bag or kraft paper bag in 1000-1500kg big bag.

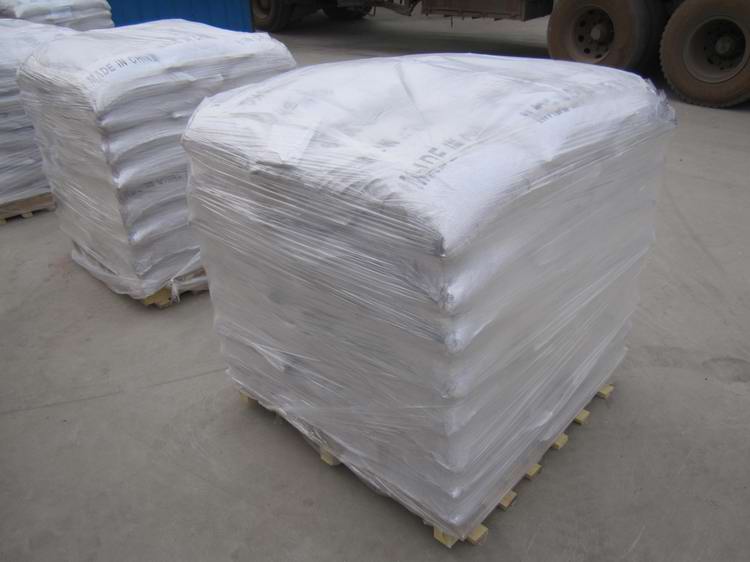

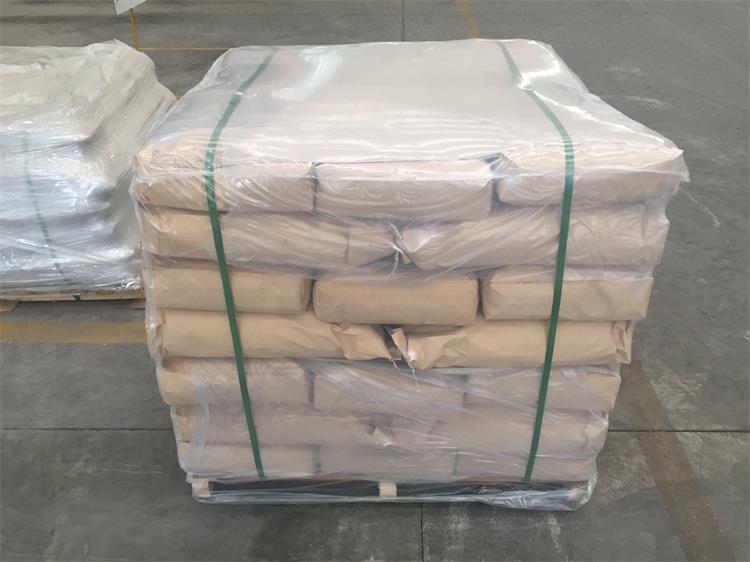

2. 25kg plastic woven bag or kraft paper bag on pallet and covering by plastic films.

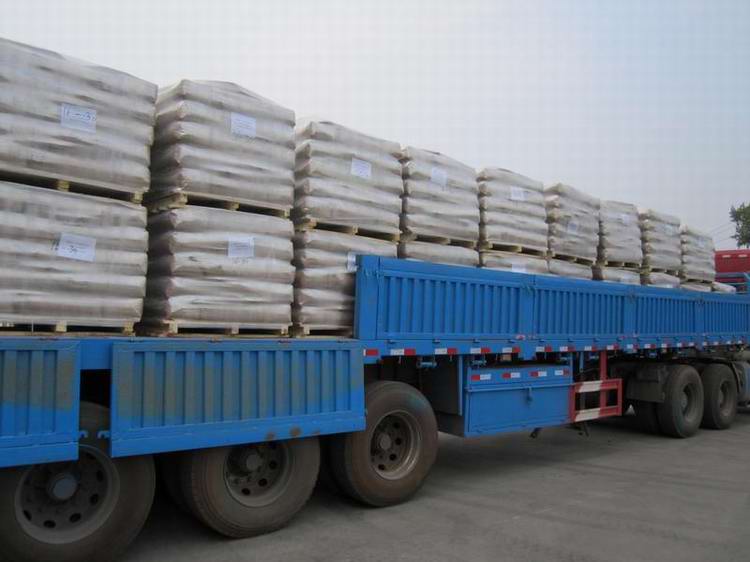

20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data,Quantity, Application and Port of discharge etc. we'll quote you our best price as soon.
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Calcined flint clay, Calcined kaolin,Bauxite,Chamotte sand, Chamotte flour,Mullite etc.
2. Production capacity : Calcination shaft kiln: 8 sets,
Sand production line: 3 sets,
Flour production line: 3 sets,
3. Main market : Products are exported to more than10 countries (Such as South Korea, German, Japan, Indonesia, Italy, US, Vietnam, Israel, Turkey, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, usage method,etc.
4. If the quality of the goods have any problems, we will negotiate with you and pay compensation according to the evidence if necessary.
