Direct Bonded Magnesia Chrome Brick
| Quantity: | |
|---|---|
Product Description:
Product Introduction:

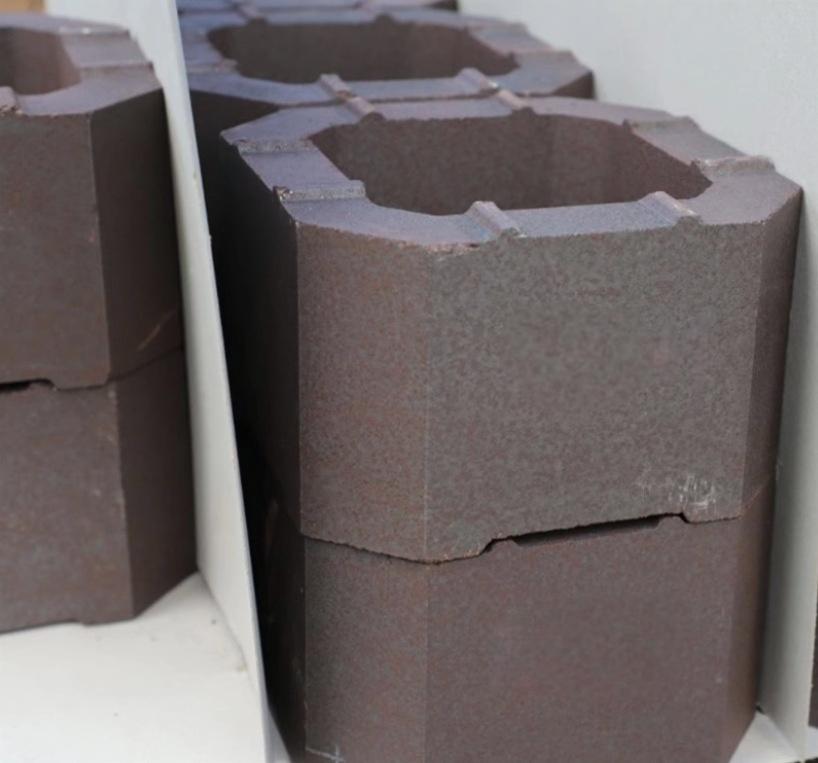

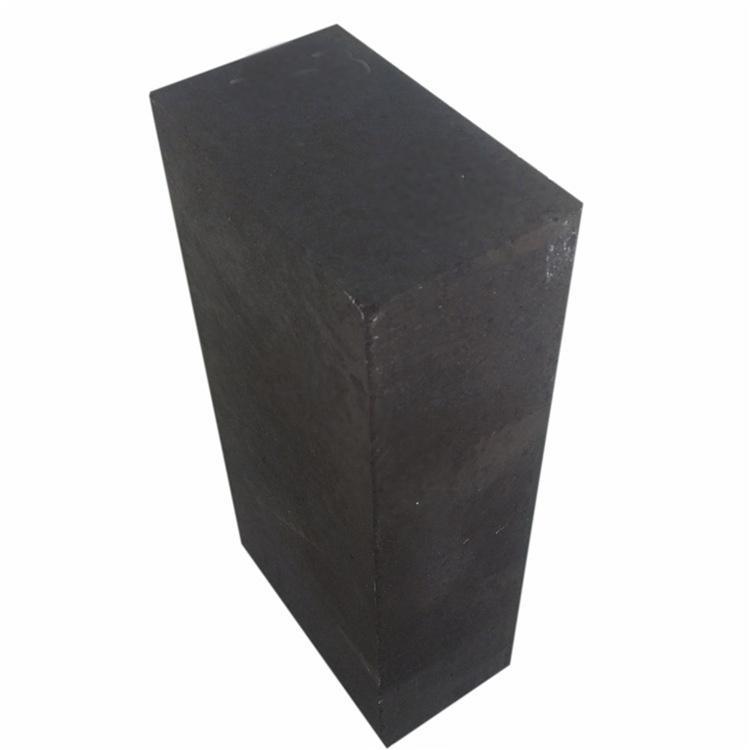

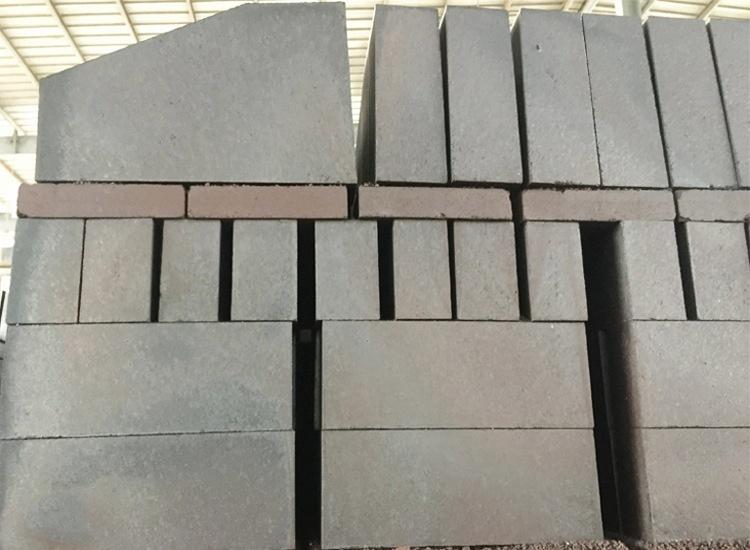

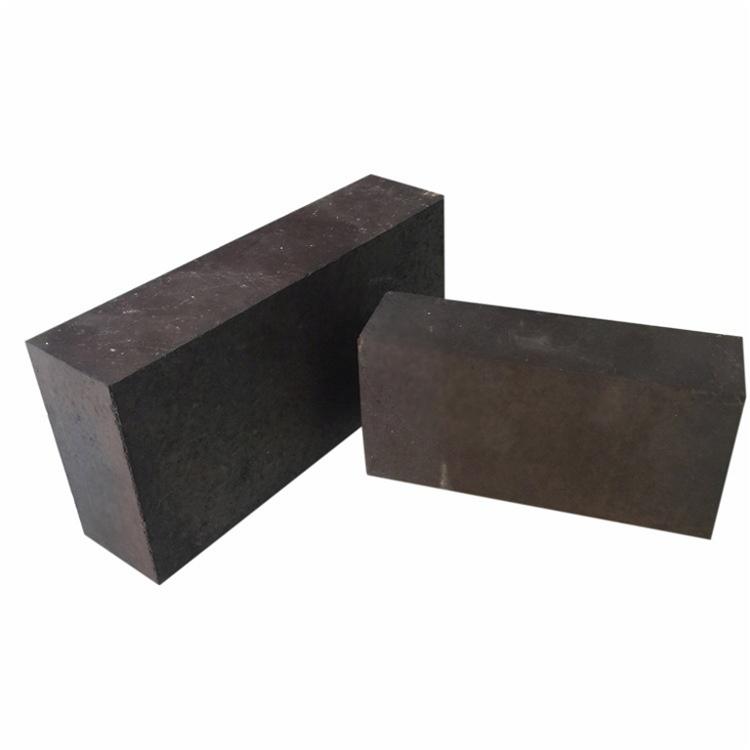

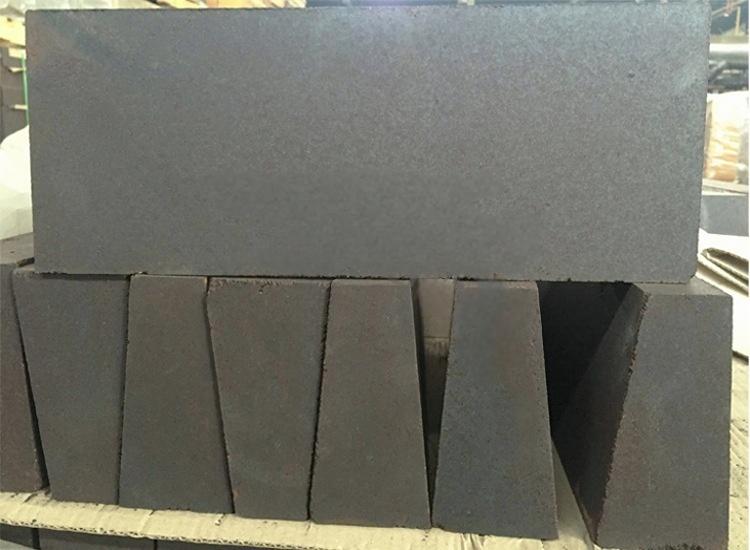

Direct bonded magnesia chrome brick is a product made from high-purity or sub high-purity sintered or fused magnesia and chromium concentrates as raw materials. High purity sintered magnesia and chromite with SiO2 less than 2% are used as raw materials and produced through high-temperature sintering. This product has few impurities and is fired at high and ultra-high temperatures. The glass phase is concentrated in the triangular region of the crystal phase, and the crystal phases are directly combined.
Product performance:
It has the characteristics of high temperature structural strength, high load softening temperature, and strong resistance to chemical erosion.
Main purpose:
Widely used in cement rotary kiln firing belts, glass melting furnaces, steelmaking electric furnaces, converters, and non-ferrous metal smelting furnaces.
Direct bonded magnesia chrome brick:
Brand | Chemical Analysis(%) | Physical Properties(≥)
| ||||||||
MgO ≥ | Gr202 ≥ | SiO2 ≤ | Al203 ≤ | Fe203 ≤ | CaO ≤ | Cold Crushing Strength (Mpa) | Apparent Porosity (%)
| Bulk Density (g/cm3) | Refractornessunder load ℃ | |
ZHMGe-14 | 70 | 14 | 1.5 | 5.0 | 8.0 | 1.2 | 55 | 17 | 3.15 | 1700 |
ZHMGe-12 | 72 | 12 | 2.0 | 4.5 | 7.5 | 1.5 | 55 | 17 | 3.10 | 1700 |
ZHMGe-10 | 75 | 10 | 2.0 | 4.5 | 6.5 | 1.5 | 50 | 18 | 3.10 | 1650 |
MGe-8 | 75 | 8 | 2.5 | 4.0 | 5.5 | 1.8 | 45 | 18 | 3.05 | 1650 |
In order to ensure that the products we provide fully meet your actual application needs, please assist in providing the following customized information:
I. Product specification information
Model or brand: Please specify the specific model of magnesia-chrome brick you need (such as DMC-4, DMC-6, ZHMGe-14, etc.), or tell us the specific chemical composition and physical performance requirements.
Dimensions and tolerances: Please provide brick drawings or detailed dimensions (length× width× height) and allowable tolerance range.
Quantity: Please let us know the total quantity of the required products and the delivery plan in batches (if any).
II. Technical Index Requirements
Chemical composition: If there are special requirements, please specify the control range of MgO, Cr₂O₃, SiO₂, Al₂O₃, Fe₂O₃, CaO and other components.
Physical properties: Please specify the key performance indexes such as bulk density, apparent porosity, compressive strength at room temperature and softening temperature under load.
Appearance quality: If you have any special requirements on appearance indexes such as size deviation, cracks, missing corners, melting holes and colors, please specify them in detail.
III. Packaging and Transportation Requirements
Packaging: If there are no special requirements, we use export standard tray+plastic steel belt+plastic film packaging by default; If you have other requirements (such as wooden cases, cartons, moisture-proof, earthquake-proof, etc.), please let us know in advance.
Mode of transportation: Please confirm the mode of transportation (sea, railway, highway, etc.) and the destination port or delivery place, so that we can arrange the most suitable logistics scheme.
Marks and marks: If there are any special requirements for marks, labels or marks, please provide detailed information.
IV. Quality Inspection and Documentation Requirements
Inspection items: Please confirm whether third-party inspection is required or specify inspection items (such as chemical composition, physical properties, appearance dimensions, etc.).
Quality inspection report: Please indicate whether factory inspection report, third-party inspection report or other certification documents are required.
Other documents: such as certificate of origin, quality certificate, packing list, commercial invoice, etc., please inform the required number of copies and format requirements in advance.
V. Delivery date and after-sales service
Delivery time: Please tell us your expected delivery time so that we can arrange the production plan reasonably.
After-sales service: If you have on-site construction guidance, technical consultation or other after-sales needs, please explain in advance, and we will arrange professional and technical personnel to provide you with support.
Please provide the above information in as much detail as possible so that we can accurately quote and arrange production. If you have any questions or need further communication, please feel free to contact us. We will wholeheartedly provide you with the best quality products and services.
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Packaging & shipping:

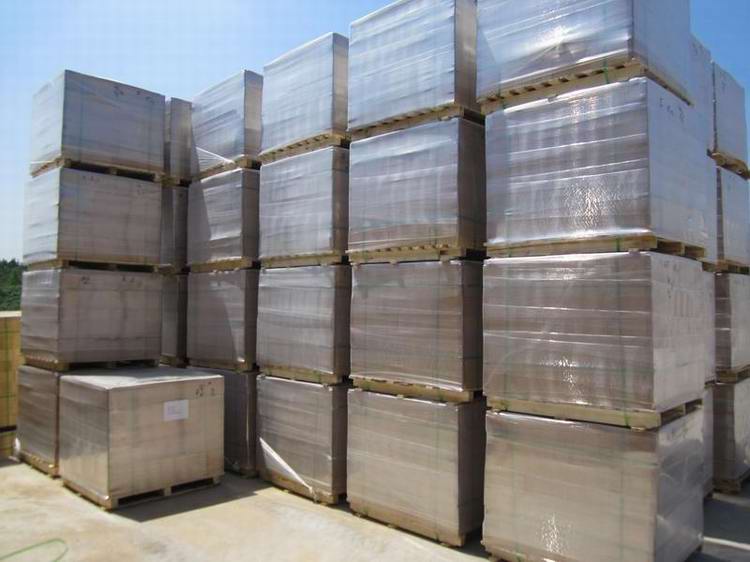

Packaging:

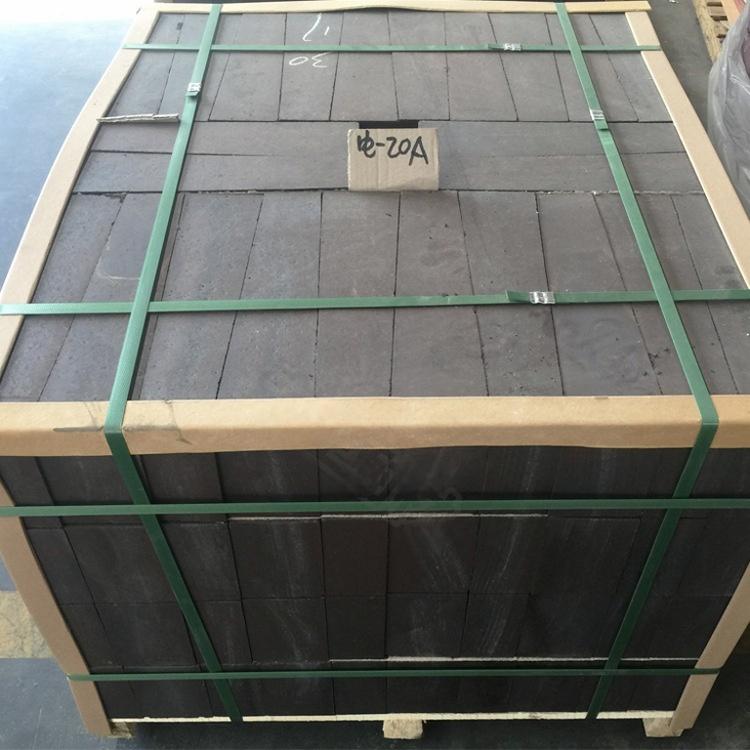

1. magnesia chrome brick will be packed by pallet with PET strap fixed , covering by plastic films.
2. The size of standard export pallet is 1000*1000mm.
Load weight of each pallet:1.5-2.0 Tons.

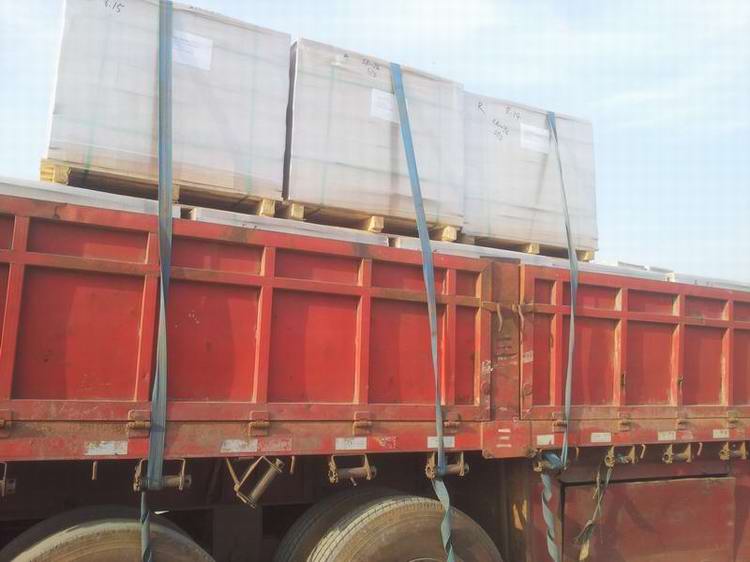

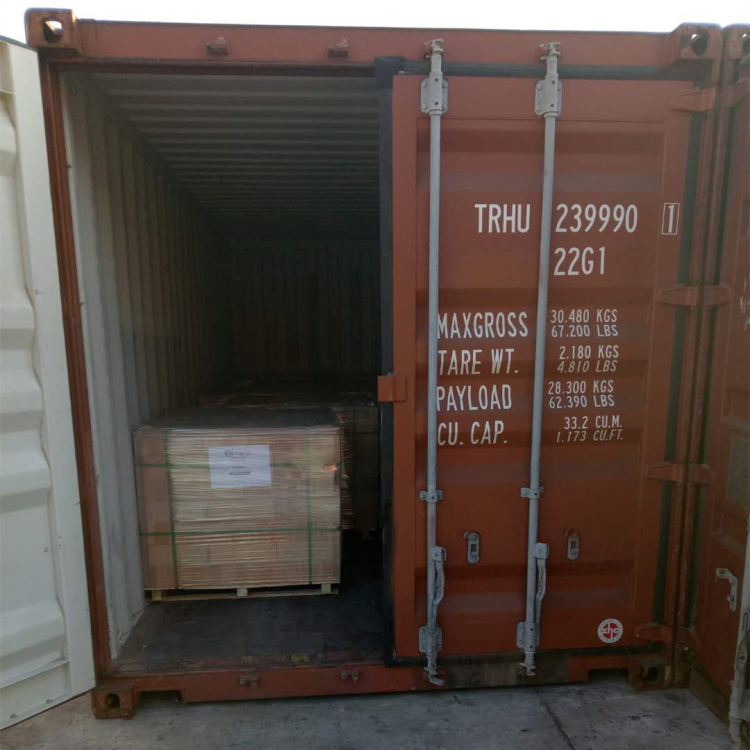

Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products:magnesia chrome brick, Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
