For Kiln Furniture Calcined Fireclay
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Calcined flint clay, also known as chamotte or calcined kaolin,has heat resistance and sinterability, mainly used for refractory materials and investment casting materials.It is formed by high temperature calcination of flint clay ore.The common colors of flint clay after high temperature calcination are: pure white, light gray, light Yellow brown.
The composition of calcined flint clay is stable, the teture is uniform, the structure is compact, the glaze is bright and magnetic. The main chemical components are AL2O3 and SiO2, accompanied by a small amount of Fe2O3 and trace amounts of Na2O, K2O and other impurities. The high-quality coke gemstone has a refractoriness of over 1750 °C. The main mineral phase is mullite, which accounts for 35 to 55%, followed by glass phase and cristobalite.
Characteristics：
1. High refractoriness.
2. Physicochemical stability.
3. Bulk density high .
4. Low porosity.
5. Low water absorption.
6. Fully calcined
7. Low impurity content.
8. Pure white.
Teachnical Data:
Item/Grade | YNS45 | YNS45 | YNS44 | YNS44 | YNS43 | YNS42 | YNS40 | YNS36 |
A | B | A | B | |||||
AL2O3 % | 45～48 | 45～47 | 44～47 | 44～46 | 43～45 | 42～45 | 40～44 | 36～-42 |
SiO2 % | 49～52 | 49～52 | 50～53 | 50～53 | 50～54 | 50～54 | 52～55 | 52～55 |
Fe2O3 % （max） | 0.8 | 1.1 | 1.3 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 |
Ti02 % （max） | 0.8 | 0.8 | 0.9 | 0.9 | 1.0 | 1.1 | 1.2 | 1.3 |
K2O+Na2O % （max） | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 |
Ca0+Mg0 % （max） | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 |
Bulk density g/cm³（min） | 2.58 | 2.55 | 2.52 | 2.50 | 2.45 | 2.40 | 2.37 | 2.30 |
Refractoriness °C （min） | 1780 | 1770 | 1760 | 1750 | 1740 | 1720 | 1710 | 1700 |
Impurities % （max） | 0.5 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 |
Applications:
Calcined flint clay is mainly used for manufacturing high-quality refractory products, refractory castable, sagger, kiln furniture, crucibles, ceramic fiber products, precision casting sand, ceramics products, etc.
Flint clay customization requirements:
I. Product specifications
Chemical composition: the content of AL₂O₃ should be between 45% and 47%, the content of SiO₂ should be controlled in [specific numerical range], the content of Fe₂O₃ should not exceed [specific numerical value], and the content of other impurities (such as Na₂O and KO) should meet the industry quality standards. For details, please refer to the relevant standard documents provided by our company.
Particle size distribution: This customized flint clay product should contain various particle size specifications for different application scenarios. The details are as follows:

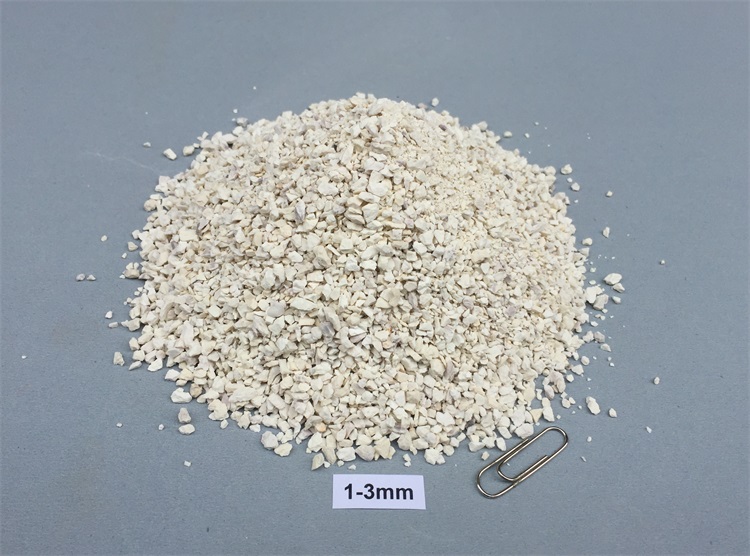

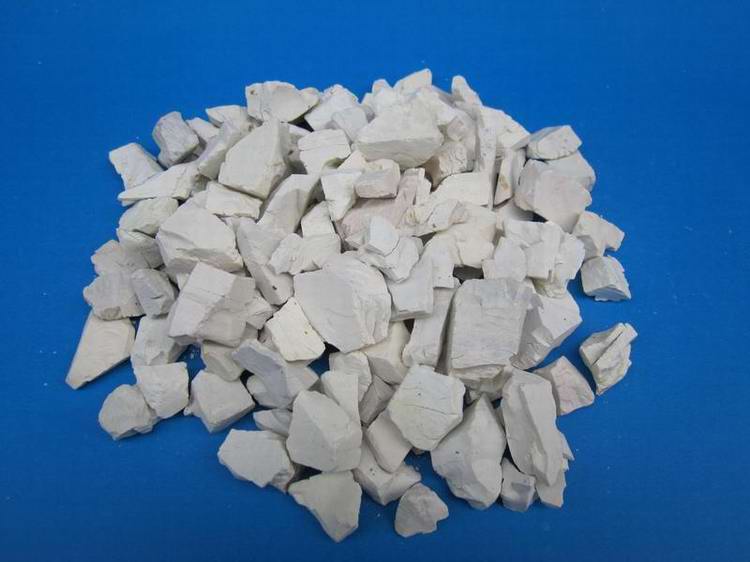

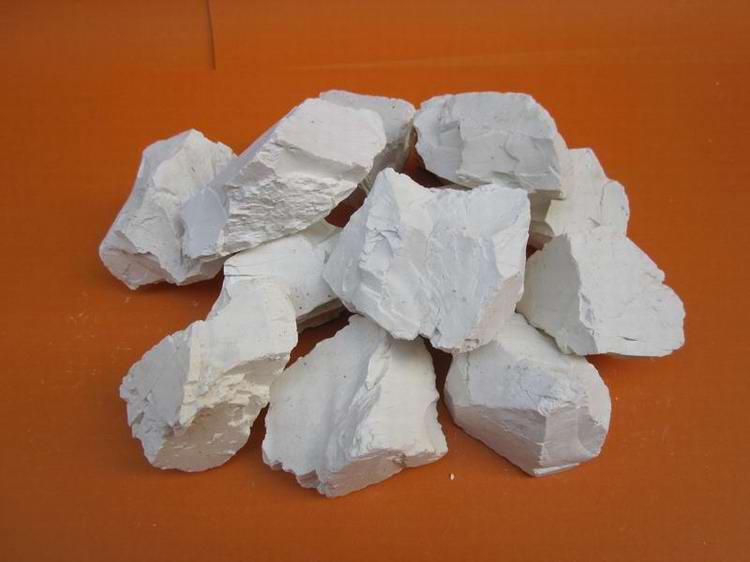

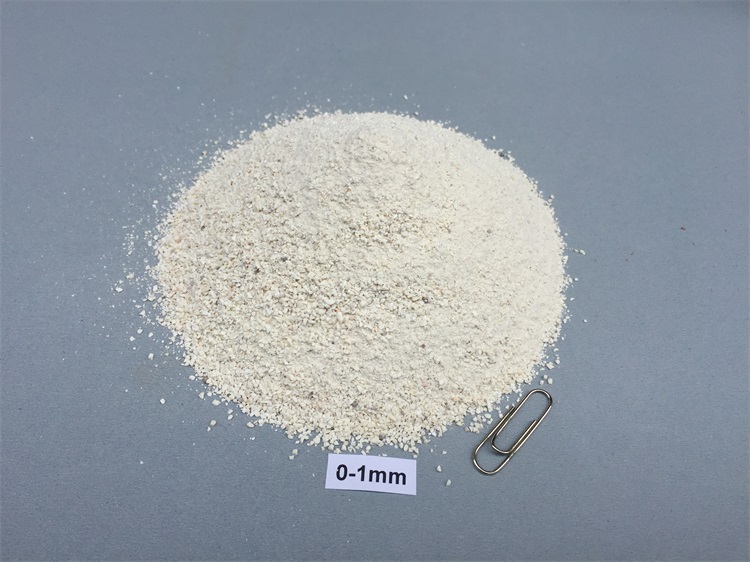

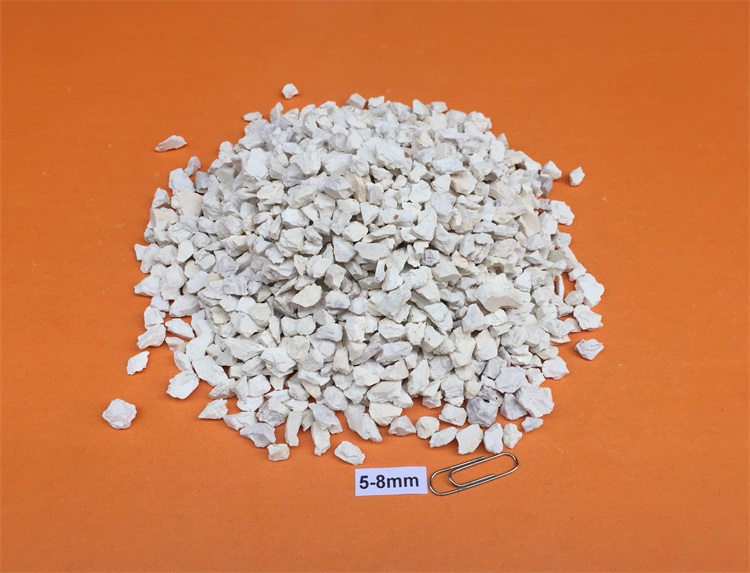

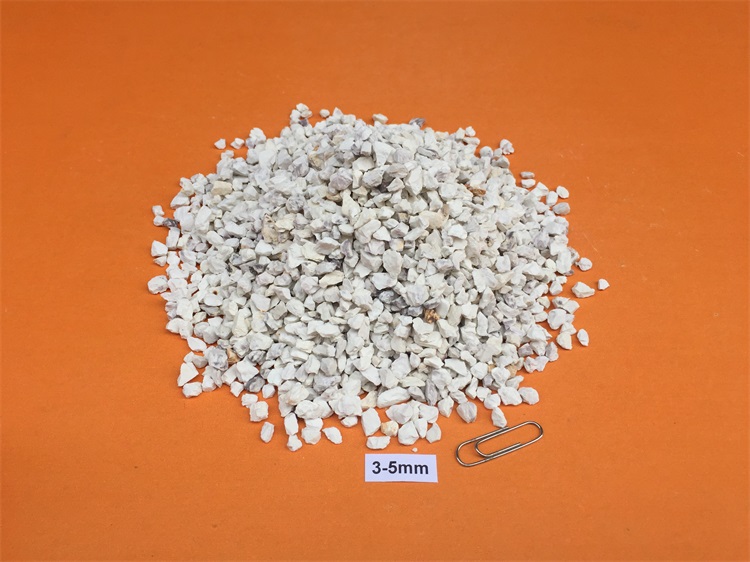

Blocks: 0-1mm, 1-3mm, 3-5mm, 5-8mm, 8-15mm and other specifications. The proportion of each specification should be accurately allocated according to the ratio table provided by our company to ensure that the products can meet the specific filling and structural requirements in subsequent use.

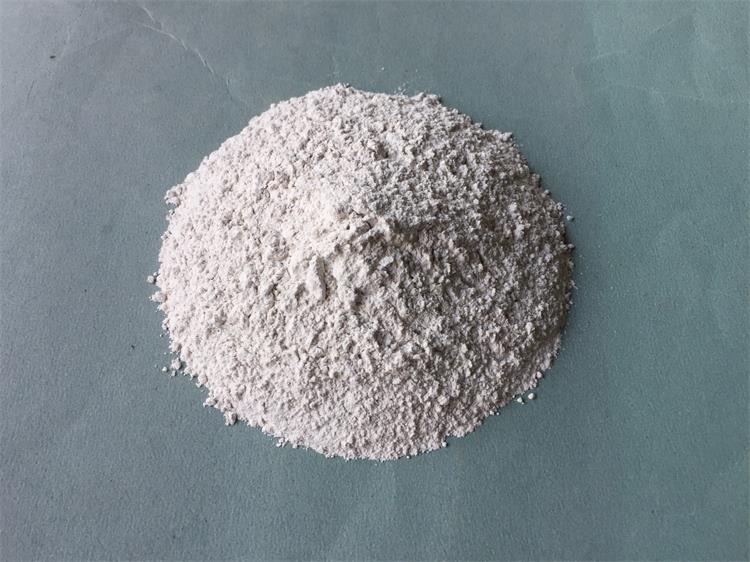

Powder: -200 mesh, -270 mesh, -325 mesh, etc. The fineness uniformity of powder should reach [specific percentage] or more to ensure the consistency of performance in fine processing or mixed use.
II. Product performance
Fire resistance: the product must have high fire resistance, and the fire resistance temperature should reach above 1780℃ to meet the demand of our company in high temperature environment and ensure the stability of product structure under extreme conditions.
Physico-chemical stability: under the normal use environment, the product should have good thermal shock resistance, corrosion resistance and chemical corrosion resistance, which can keep its physical and chemical properties unchanged for a long time and reduce the product performance attenuation caused by environmental factors.
Other characteristics: the product should have low porosity and low water absorption (the water absorption rate should be controlled below [specific value]), and it is a fully calcined product to ensure its high strength and durability during use.
III. Quality Control
Your company needs to carry out strict quality inspection on customized products according to the quality inspection standards provided by our company (see the attachment for details), including but not limited to particle size analysis, chemical composition analysis, physical performance test, mineral composition test and PH value test, so as to ensure that each batch of products meets the customization requirements.
Before the products leave the factory, a complete quality inspection report should be provided, which should record the results of various inspection indexes in detail, and attach the inspection methods and basis for our acceptance and filing.
If quality problems are found during the use of the products, your company should deal with them in time according to the contract and bear the corresponding responsibilities and losses.
IV. Packaging and Transportation
Packaging: The product should be packaged in 1000kg big bags or 25kg small bags, and the firmness and tightness of the packaging should be ensured to prevent the product from being affected by moisture, damage or pollution during transportation. The product name, specification, weight, production date, batch number and contact information of your company should be clearly marked on the package.
Transportation: The transportation mode is arranged by your company, but it is necessary to ensure the safety during transportation and avoid the damage of products due to bumps and collisions. Appropriate protective measures should be taken during transportation, such as moistureproof and rainproof, to ensure that the quality of products is intact when they arrive at our company.
V. Time and place of delivery
Delivery time: According to our production plan, the delivery time of the first batch of customized products is [specific date], and the delivery time of subsequent batches will be notified to your company [X] days in advance according to the actual demand, so you need to deliver the products on time according to the agreed time to ensure the continuity of our production.
Delivery place: the products need to be transported to the warehouse designated by our company (address: [detailed address]), and your company is responsible for unloading the products to the designated location and handling the handover procedures with the warehouse management personnel of our company.
VI. Other requirements
Your company needs to provide our company with product samples within [X] working days after the signing of the customization contract, and the number of samples is not less than [X]kg for our company to conduct quality inspection and performance evaluation. Only after the samples have passed the test can mass production be carried out.
In the process of customization, if our company changes the product specifications, performance and other requirements, we will inform your company in time. Both parties need to reach an agreement before making adjustments, and confirm the changes in writing.
Please keep close communication with our company during the customization process, and give timely feedback on the production progress and possible problems, so that both parties can solve them through consultation and ensure the smooth customization work.
I hope that your company can produce in strict accordance with the above customization requirements. If you have any questions or need further communication, please contact us in time.
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Particle size distribution.
2. Chemical analysis.
3. Physical properties.
4. Mineralogical composition.
5. PH value.
Packaging & shipping:

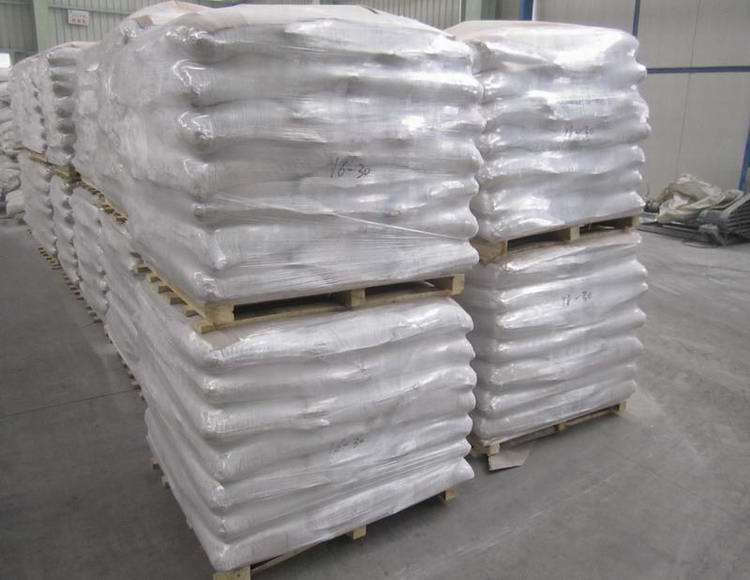

Packaging:

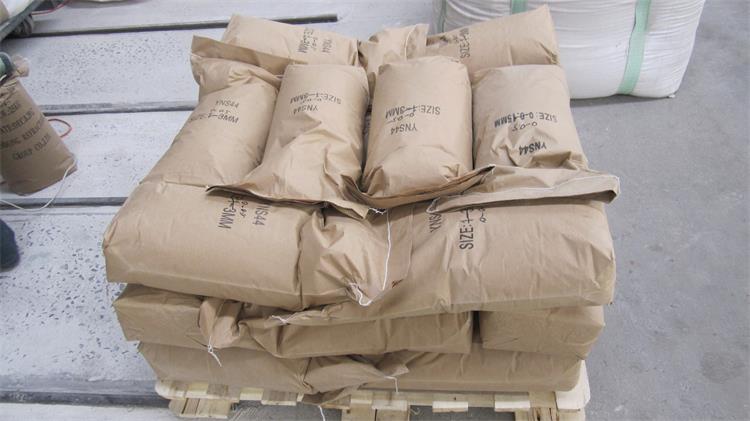

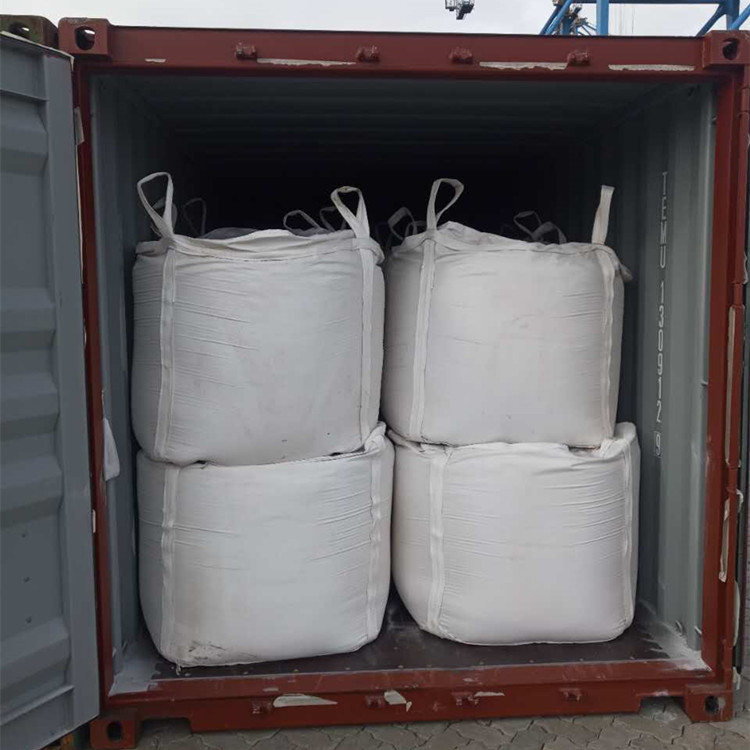

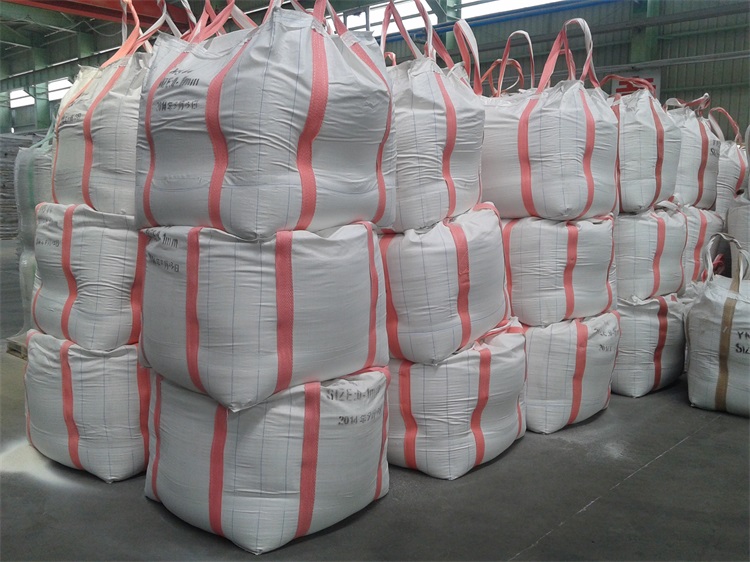

1. 25kg plastic woven bag or kraft paper bag in 1000-1500kg big bag.

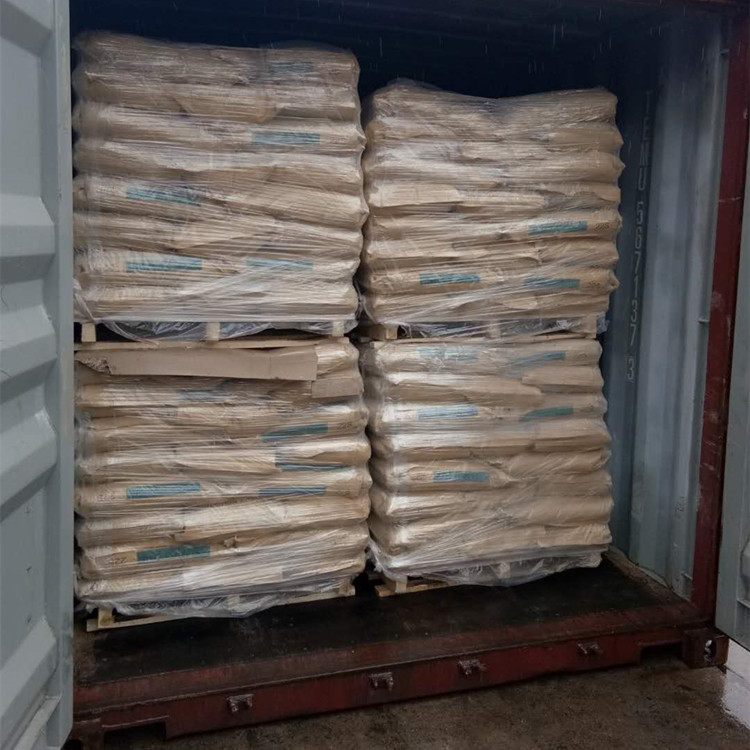

2. 25kg plastic woven bag or kraft paper bag on pallet and covering by plastic films.
Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data,Quantity, Application and Port of discharge etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description:
Our company is a specialized manufacturer and exporter of casting material in China, Focus on service precision casting industry for 20 years, Production capacity of over 50,000 tons per year.
1. Mainly products: Calcined flint clay, Calcined kaolin,Bauxite,Chamotte sand, Chamotte flour,Mullite etc.
2. Production capacity : Calcination shaft kiln: 8 sets,
Sand production line: 3 sets,
Flour production line: 3 sets,
3. Main market : Products are exported to more than10 countries (Such as South Korea, German, Japan, Indonesia, Italy, US, Vietnam, Israel, Turkey, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, usage method,etc.
4. If the quality of the goods have any problems, we will negotiate with you and pay compensation according to the evidence if necessary.
