For Machine Building Industry Heat Insulating Brick
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:

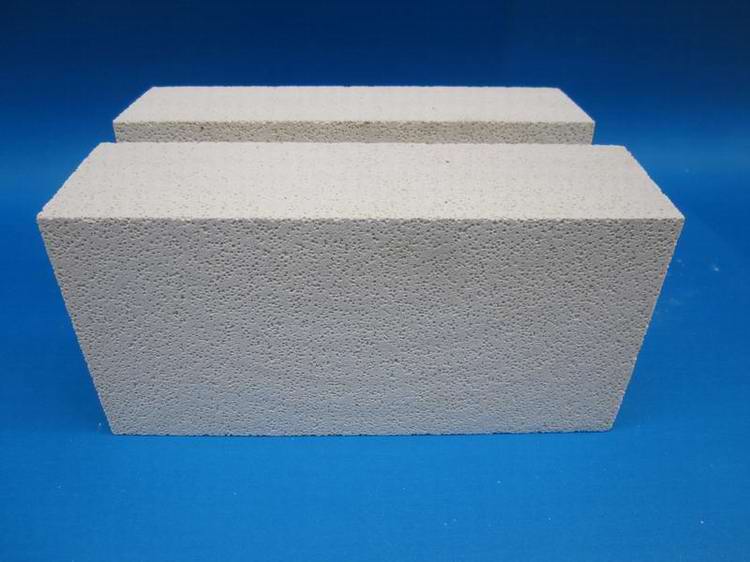

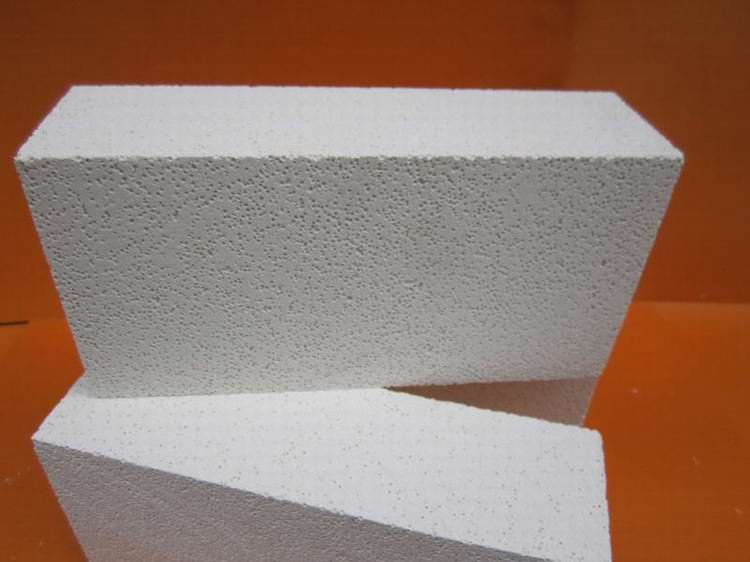

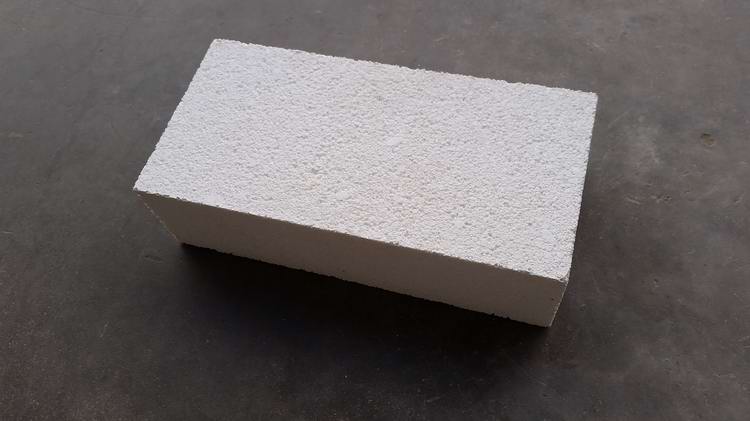

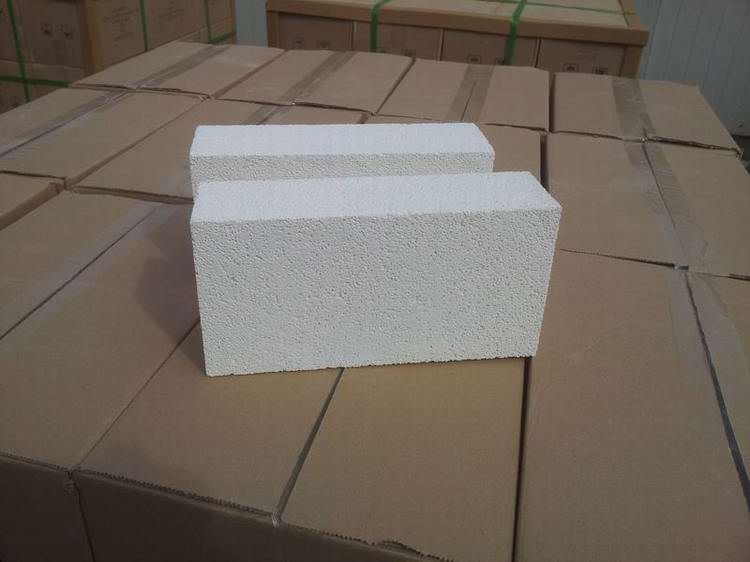

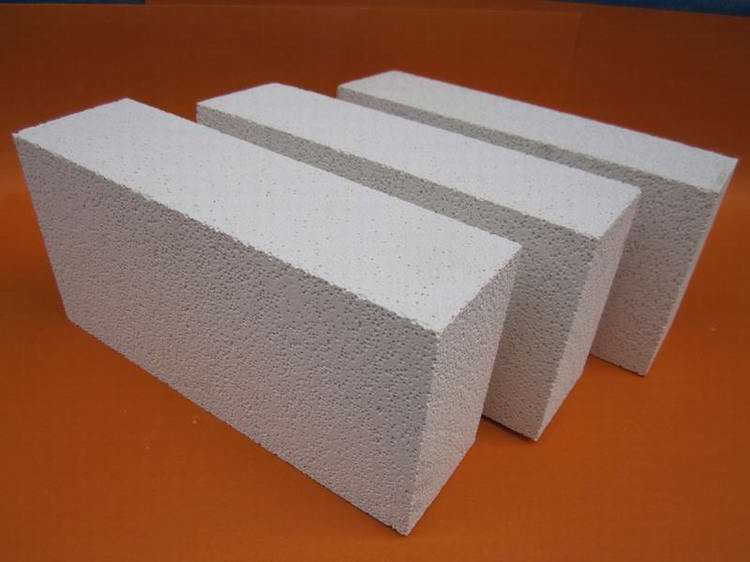

Insulating brick, also known as light refractory brick, is a kind of lightweight heat insulating refractory material. It has the characteristics of low thermal conductivity and high refractory temperature, and is widely used in various high temperature furnaces.
Features:
1. Low thermal conductivity.
2. High strength and resistance to corrosion.
3. Low heat capacity.
4. Low shrinkage after heavy firing.
5. High insulation.
6. High refractoriness.
7. Low density.
8. Good thermal shock resistance under high temperature.
9. Thermal insulation energy-saving effect is good.
Teachnical Data:

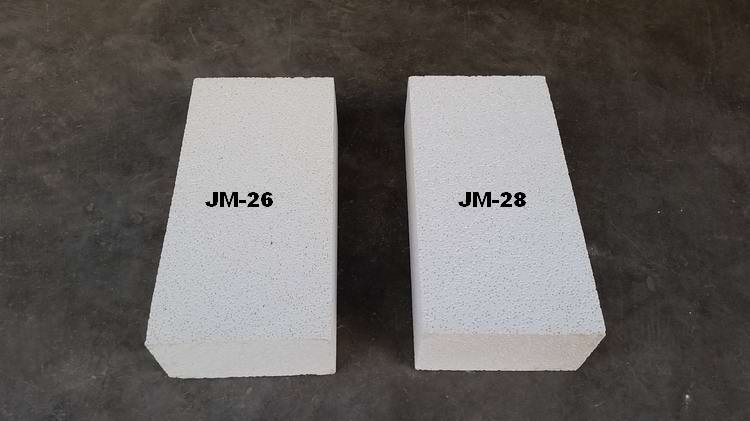

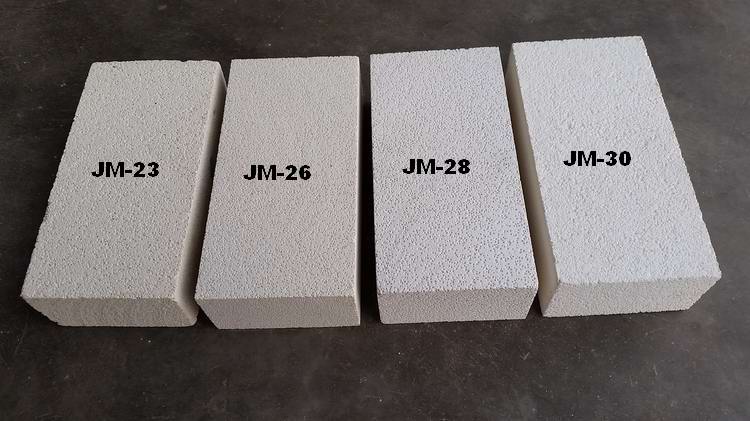

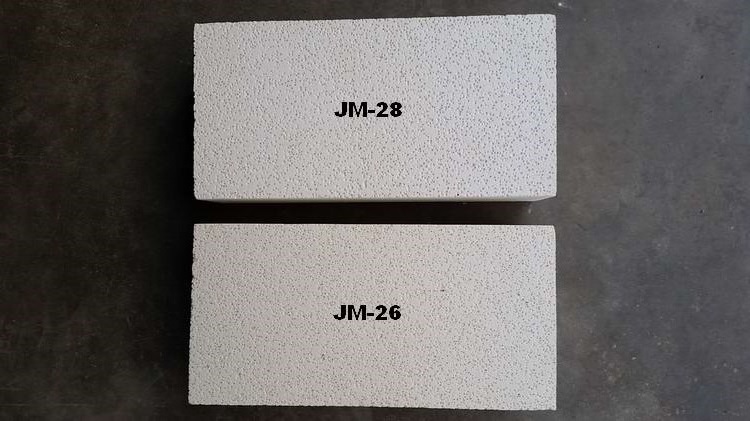

Item/Type | JM-23 | JM -26 | JM -28 | JM -30 | JM -32 | |
Classification temperature,Reference using temperature (oC) ≥ | 1260 | 1430 | 1540 | 1650 | 1760 | |
Bulk density (g/cm3) | 0.8 | 0.9 | 0.9 | 1.0 | 1.25 | |
Crushing strength (Mpa) ≥ | 1.3 | 1.6 | 2.1 | 16 | 16 | |
Modulus of rupture (Mpa) ≥ | 0.9 | 1.4 | 1.6 | 2.1 | 2.1 | |
Permanent linear change (oCX24h)% ≤ | 1350℃×4h | 1400℃×24h | 1510℃×24h | 1620℃×24h | 1730℃×24h | |
Thermal conductivity (W/m.k) ≤ | 800oC | 0.18 | 0.31 | 0.32 | 0.44 | 0.50 |
1000oC | 0.2 | 0.34 | 0.35 | 0.45 | 0.52 | |
1200oC | - | 0.40 | 0.41 | 0.47 | 0.56 | |
Chemical Analysis (%) | Al2O3 ≥ | 37 | 58 | 67 | 73 | 77 |
Fe2O3 ≤ | 1.0 | 0.8 | 0.8 | 0.6 | 0.4 | |
Application:
1. Insulating brick can be widely used for lining or insulation layers of various industrial furnaces and kilns,For example, metallurgical industry, machine building industry, ceramic industry, chemical industry.
2. Insulating brick can replace heavy refractory bricks, build new energy-saving industrial kiln, improve the insulation and energy saving effect of kiln, and thus reduce production costs.
Customized insulating brick demand specification:
I. Product specifications and performance requirements
(1) Size requirements
Length: [X] cm
Width: [X] cm
Height: [X] cm
The allowable size deviation range is [x]%, so as to ensure that insulating brick can accurately adapt to the reserved space of our equipment or building structure and avoid installation problems caused by size mismatch.
(2) Density requirements
Batch density should be controlled between [x] g/cm and [x] g/cm. The lower density helps to reduce the weight of the structure, and at the same time, it ensures that insulating brick has good thermal insulation performance, which meets our dual requirements for lightweight and energy-saving equipment or buildings.
(3) Thermal conductivity requirements
At the temperature of [X]℃, the thermal conductivity shall not exceed [x] w/m k. Low thermal conductivity is the core performance index of insulating brick. Only by meeting this requirement can we effectively block heat transfer, provide reliable thermal protection for our high-temperature working environment or heat-sensitive areas, reduce energy consumption and ensure the safety of equipment and personnel.
(4) compressive strength requirements
Compressive strength should reach [X] MPa and above. Insulating brick may bear certain pressure in actual use, such as self-weight of equipment, accumulation of materials, etc. Sufficient compressive strength can ensure its structural stability in the long-term use process, and avoid the influence of thermal insulation effect and overall structural safety due to compressive deformation or damage.
(5) Fire-resistant temperature requirements
The fire resistance temperature shall not be lower than [X]℃. Our application scenario involves high temperature environment. insulating brick should have excellent fire resistance, be able to work continuously and stably under high temperature conditions, prevent potential safety hazards caused by excessive heat conduction, prolong the service life of equipment and ensure the smooth production process.
II. Chemical Composition Requirements
The chemical composition of insulating brick shall meet the following standards:
The content of Al₂O₃ (alumina) is not less than [X]%, so as to ensure that the brick has good fire resistance and chemical stability, can resist chemical erosion at high temperature, and maintain long-term stability of thermal insulation performance.
The content of SiO (silicon dioxide) is controlled between [X]% and [X]%. Too high or too low SiO content may affect the sintering performance and mechanical strength of the brick, so it needs to be accurately controlled to meet our customized needs.
The total content of other impurities shall not exceed [X]%. Too many impurities may produce harmful gases or reduce the performance of the brick at high temperature, which should be strictly controlled to ensure the product quality and the safety of the use environment.
III. Appearance and packaging requirements
(1) Appearance requirements
The surface should be flat and smooth, without obvious cracks, pores, sand holes and other defects, so as to ensure the beauty and integrity of insulating brick and prevent the strength reduction and thermal insulation performance reduction caused by surface defects.
The colors shall be uniform and consistent, and conform to the color number or sample standard specified by us. If there is no specific color number requirement, it can be produced according to the conventional insulating brick color, but it is necessary to ensure that the color deviation of the same batch of products is within an acceptable range to meet our unified requirements for product appearance quality.
(2) Packaging requirements
Each piece of insulating brick needs to be packaged separately with [specific packaging materials, such as plastic film and bubble film] to prevent damage caused by collision during transportation and storage, and at the same time, it plays the role of moisture-proof and dust-proof, so as to ensure that the appearance and performance of the products are intact when they arrive in our country.
Packaged products should be neatly stacked on pallets, and the dimensions of pallets should meet the required international standards or the dimensions specified by us, which is convenient for loading, unloading and transportation. Product name, specification, quantity, production date, batch number and other information should be marked on the pallet, so that we can quickly identify and manage the goods.
IV. Customized Quantity and Delivery Time Requirements
(1) Customized quantity
The total quantity of customized insulating brick this time is [X] pieces. The specific arrangement of batch production and delivery can be determined through consultation according to the supplier's production capacity and our actual demand, but it is necessary to ensure that all products are delivered within the specified time to meet the progress requirements of our project.
(2) Delivery time requirements
The delivery date shall be calculated from the date of signing the contract, and the first batch of products shall be delivered within [X] working days, and the remaining products shall be delivered one after another according to the schedule negotiated by both parties. If the delivery is delayed due to the supplier's reasons, we shall pay a penalty of [X]% of the contract amount for each day of delay. If the delay exceeds [X] days, we have the right to terminate the contract and ask the supplier to bear the corresponding compensation responsibilities.
V. Quality Inspection and Acceptance Requirements
(1) Quality inspection standards
The supplier shall conduct a comprehensive quality inspection on the produced insulating brick according to relevant national standards (such as GB/T [specific standard number]) and the above-mentioned customization requirements put forward by us, including but not limited to dimensional accuracy, density, thermal conductivity, compressive strength, fire resistance temperature, chemical composition analysis, appearance quality, etc., to ensure that each piece of insulating brick meets the quality standards.
In the production process, the supplier should establish a strict quality control system to monitor the whole process of raw material procurement, production process and finished product inspection to ensure the stability and consistency of product quality. Each batch of products should be accompanied by a detailed quality inspection report, including inspection methods, inspection data, inspection results and other information for our acceptance and traceability.
(2) Acceptance method
We will sample and accept the products according to the quality inspection report provided by the supplier and our acceptance standard within [X] working days after receiving the goods. In the process of acceptance, if we find that the products have quality problems or do not meet the customization requirements, we have the right to reject the batch of products and ask the suppliers to make rectification or re-production within the specified time. The rectified products need to be accepted by us again until they are qualified. If our project schedule is delayed or other losses are caused due to quality problems, the supplier shall bear the corresponding compensation responsibilities.
VI. After-sales Service Requirements
(1) Technical support
After the product is delivered, the supplier shall provide necessary technical support, including but not limited to insulating brick's installation instructions, precautions for use, maintenance suggestions, etc., to ensure that we can use the product correctly and safely, give full play to its thermal insulation performance, and extend the service life of the product. If technical problems are encountered in the course of use, the supplier shall respond within [X] hours after receiving our notice and provide effective solutions.
(2) Quality assurance and after-sales maintenance
The supplier shall provide the insulating brick with a quality guarantee period of [X] months. During the quality guarantee period, if the product is damaged or its performance is degraded due to quality problems, the supplier shall be responsible for free repair or replacement, and the warranty period of the repaired or replaced product shall be recalculated from the date of repair or replacement. After the warranty period expires, the supplier still needs to provide paid after-sales maintenance service, and the maintenance cost shall be determined by both parties through consultation according to the actual situation, but the supplier shall ensure that the quality of the maintenance parts is consistent with the original products, and provide corresponding maintenance records and quality assurance commitments.
(3) Customer feedback and improvement
Suppliers should pay attention to our customer feedback, pay regular visits to our usage, collect opinions and suggestions, improve and optimize products in time according to our problems and needs, and constantly improve product quality and service level, so as to enhance the cooperation satisfaction of both parties and the possibility of long-term cooperation.
We look forward to establishing a long-term and stable cooperative relationship with your company, and hope that your company can provide us with high-quality and high-performance customized insulating brick products according to the above requirements. Please contact us in time if you have any questions or need further communication.
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Packaging & shipping:

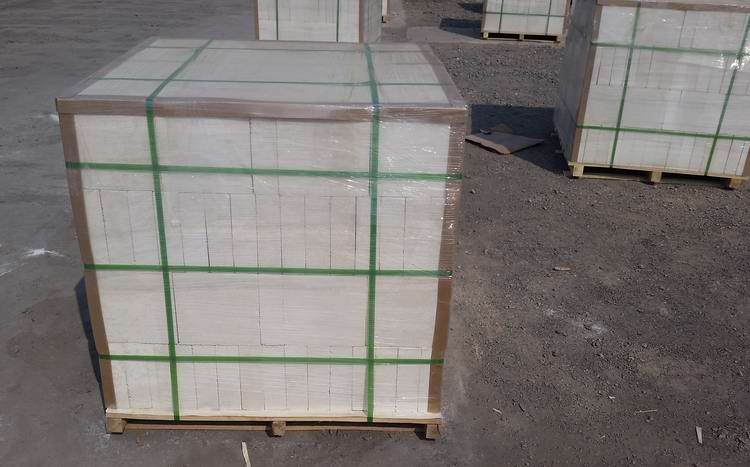

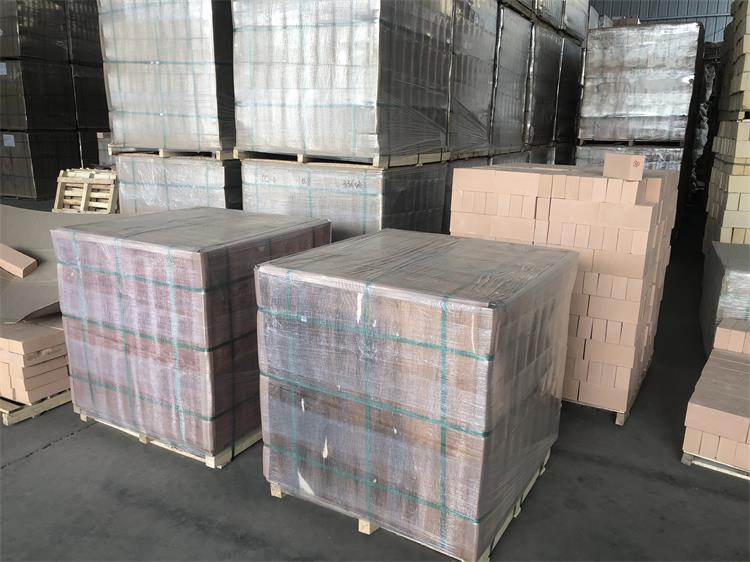

Packaging:
1. Fire bricks will be packed by pallet with PET strap fixed , covering by plastic films.
2. The size of standard export pallet is 1000*1000mm.

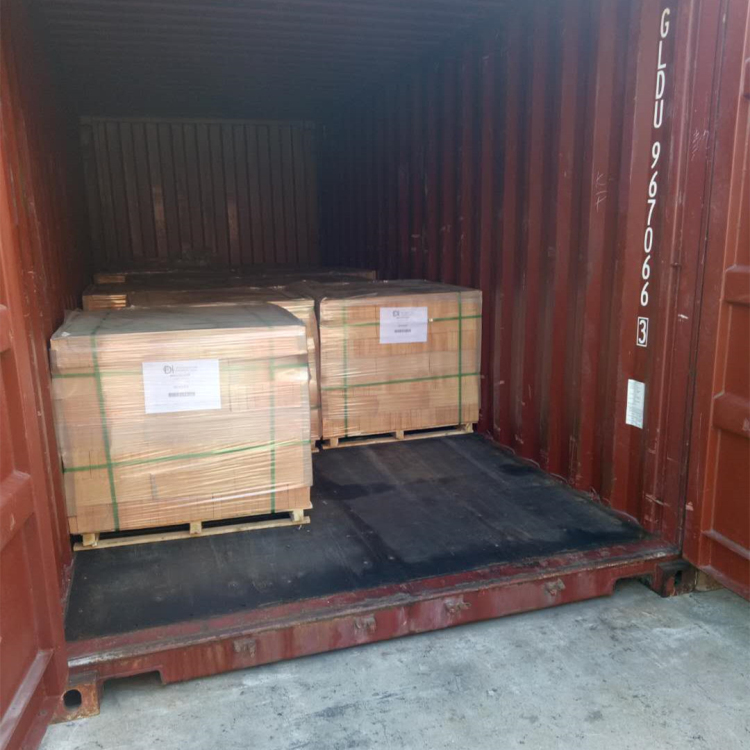

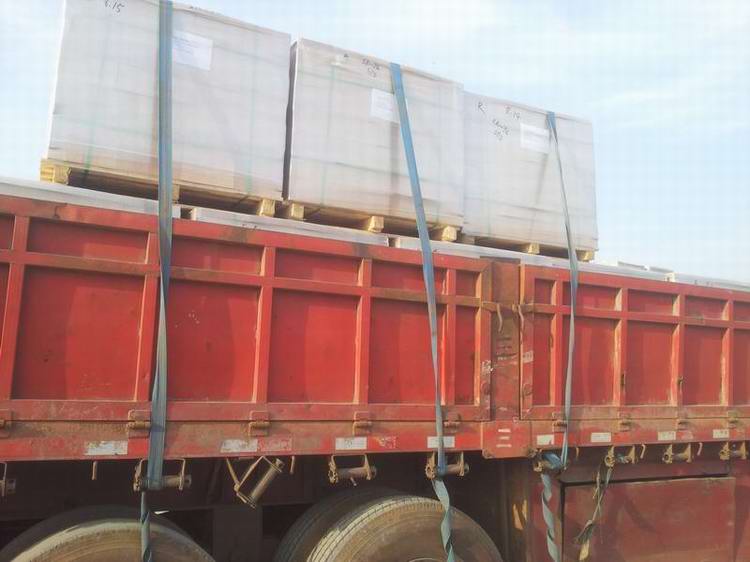

Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
