For Metallurgy Industry Furnace High Alumina Castable
| Quantity: | |
|---|---|

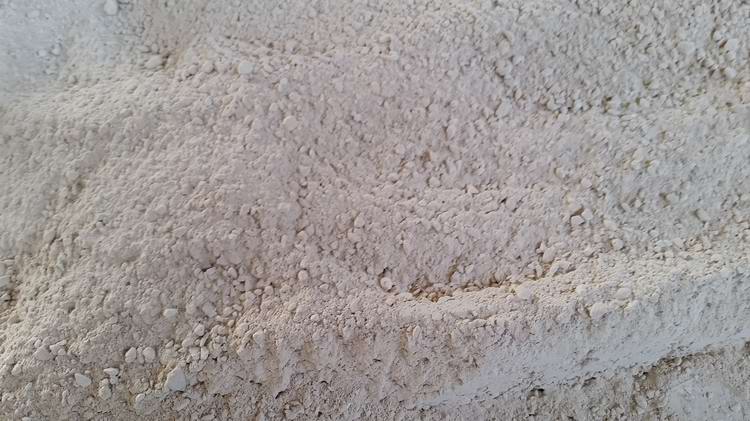

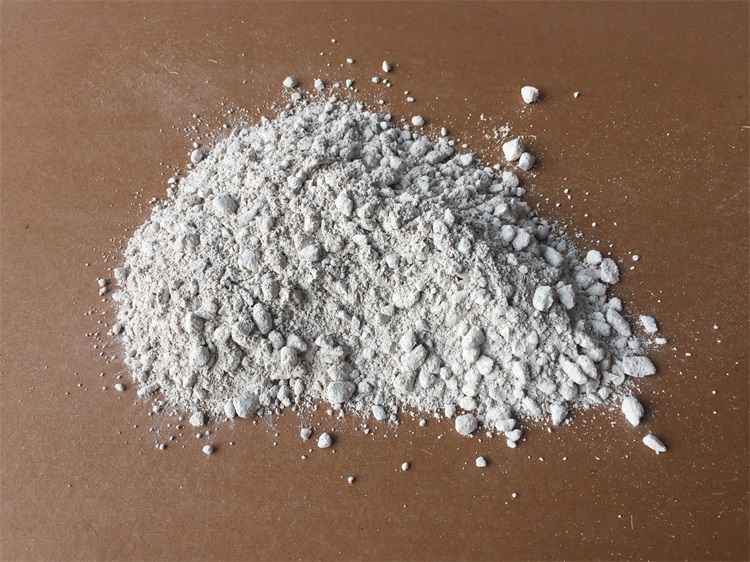

Product Description:

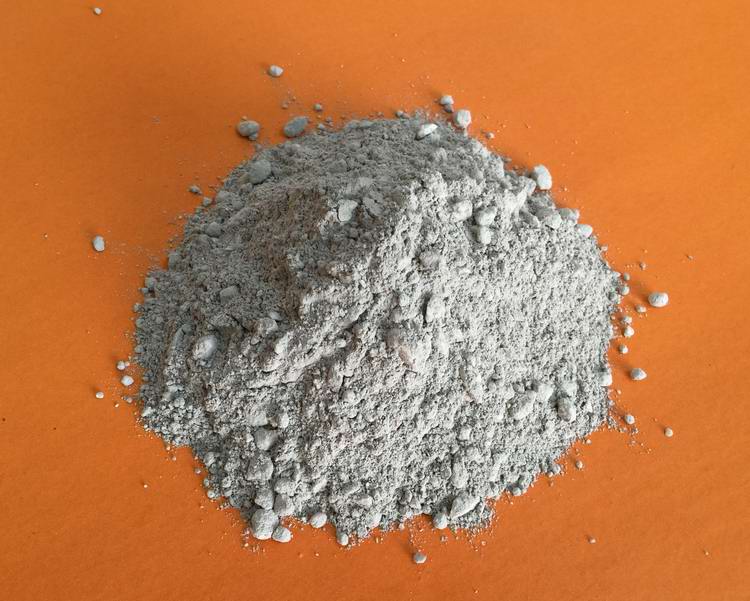

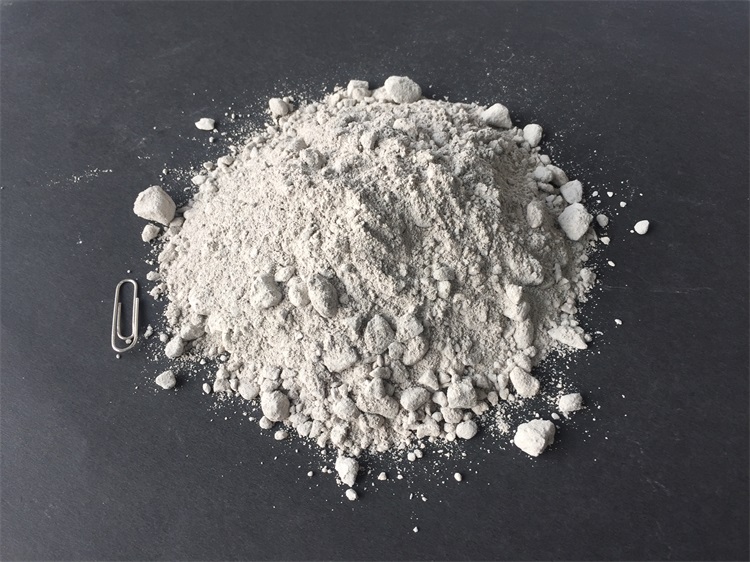

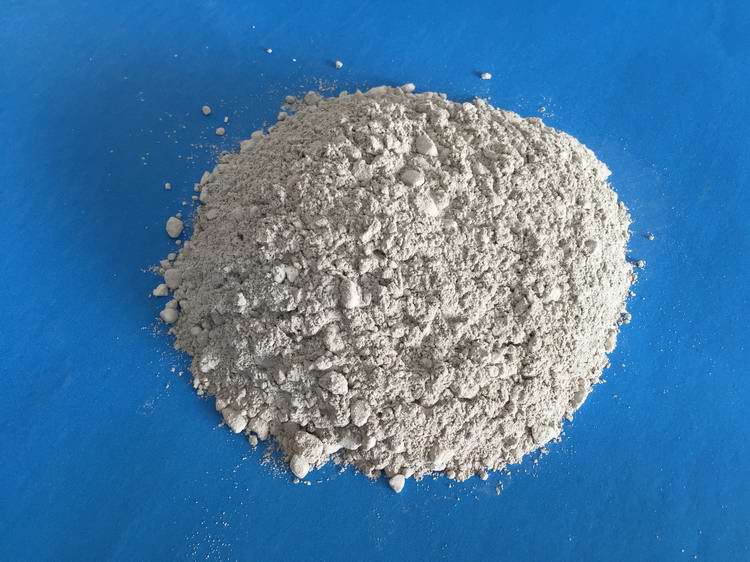

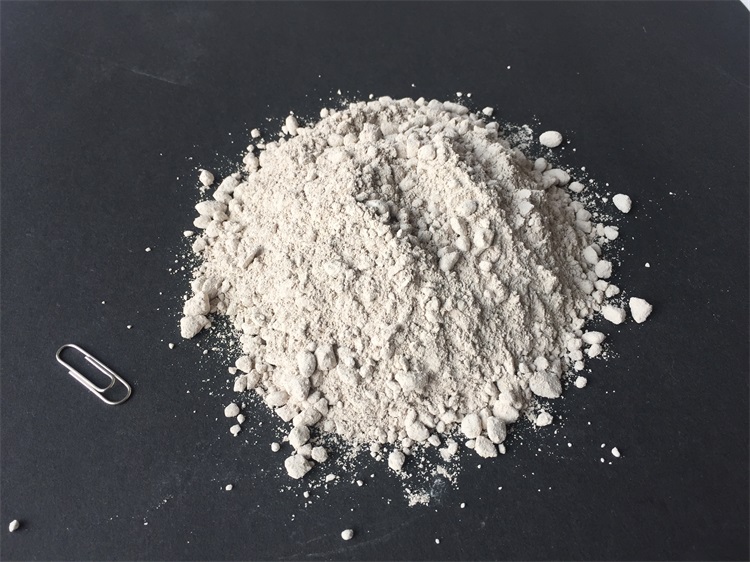

Refractory castable is one of the unshaped refractory materials. It is made of refractory aggregate, refractory powder, binders,admixtures,water or other liquid materials,By optimizing the formula design. It is loose,Has high liquidity, And can be hardened without heating.Generally in the use site,Can use directly after add certain amount water or other liquid, It is molded by pour,vibration or ramming method.and can also be made into refractory preforms, It is one of the new type refractory material of don't need sintering.
Features:
1. High working temperature.
2. High density, low porosity.
3. Good corrosion resistance and scouring resistance.
4. Good hot strength and wear resistance.
5. Good thermal shock stability.
6. Easy to install, good overall.
Teachnical Data:
Item/Grade NO. | Alumina cement refractory castable | Low calcium aluminate refractory cement castable | ||||
Clay refractory castable | High alumina refractory castable | |||||
AL-40 | AL-50 | AL-55 | AL-65 | AL-70 | ||
Bulk density (110°C±5°Cx24h) ≥ | kg/m3 | 1900 | 2100 | 2200 | 2300 | 2500 |
Crushing strength after drying (110°C±5°Cx24h) ≥ | Mpa | 20 | 23 | 20 | 23 | 40 |
Flexural strength after drying(110°C±5°Cx24h ) ≥ | Mpa | 4 | 5 | 4 | 5 | 6 |
800°C High-temperature residual strength | % | 40 | 50 | 40 | 50 | 60 |
Heat shock stability（900°C，water-cooling）≥ | times | 15 | 15 | 15 | 15 | 20 |
Linear change after heating, moisturizing 3h, ≤±1% Testing temperature | °C | 1200 | 1250 | 1300 | 1350 | 1400 |
Refractoriness ≥ | °C | 1650 | 1670 | 1700 | 1730 | 1770 |
AL2O3 ≥ | % | 40 | 50 | 55 | 65 | 75 |
Refractory aggregate limiting grain size | mm | When pouring thickness≤60mm,≤5mm | ||||
When pouring thickness 60-100mm,≤10mm | ||||||
When pouring thickness≥100mm,≤15mm | ||||||
Note:The AL - 40 ~ AL - 70 refers to AL2O3 content in finished products, token that such materials level. | ||||||
Application:
1. Metallurgy industry furnace, Heat treatment furnace.
2. Garbage incineration furnace, Circulating fluidized bed boilers.
3. Furnaces of chemical industry and construction industry.
4. Insulating layer of industry furnace and Lining of high temperature chimney.
Such as：Tunnel kiln,Rotary kiln, Boiler,Ladle,Hot metal ladle,Heating furnace, Soaking furnace,Cement kiln,Lime kilns,etc.
Customization requirements of refractory castable:
I. Product specifications and performance requirements
(1) Chemical composition
Alumina (Al₂O₃) content: ≥[X]%, so as to ensure that the material has sufficient fire resistance and chemical stability, and meet the requirements of high temperature environment and possible chemical erosion in the project.
Calcium oxide (CaO) content: ≤[X]%, which reduces the risk of high-temperature performance degradation of materials caused by too high calcium content.
Other components: please adjust according to the detailed chemical composition table provided by our company, strictly control the impurity content and ensure the purity of the material.
(2) Physical properties
Bulk density: ≥ [x] g/cm (110 C× 24h), ensuring the compactness of the material, thus improving its wear resistance and erosion resistance.
Compressive strength at room temperature:
110°C×24h：≥[X] MPa
[x] c× 3h: ≥ [x] MPa (select the appropriate test temperature according to the actual use temperature range, such as 1350°C, 1500°C, etc.).
Normal temperature flexural strength:
110°C×24h：≥[X] MPa
[X]°C×3h：≥[X] MPa
Linear change rate: [x] c× 3h, ≤ [x]%, which ensures good dimensional stability of the material in high temperature environment and avoids structural damage caused by thermal expansion or contraction.
Wear resistance: Tested according to ASTM C-704 standard, the wear amount is ≤ [x] cm, so as to meet the wear resistance requirements under high temperature, high-speed airflow or material scouring environment in the project.
Thermal conductivity: at [x] C, the thermal conductivity shall be ≤ [x ≤[X] W/m·K, which shall be customized according to actual requirements to achieve good thermal insulation effect or meet specific heat transfer requirements.
Thermal shock stability: after [X] times of thermal shock ([x] C water cooling), it will not crack or peel off, which is suitable for the working conditions with frequent temperature fluctuations in the project.
II. Construction performance requirements
Fluidity: The material should have good fluidity, and it can be smoothly formed in the construction site by pouring, vibrating or ramming, filling all corners of the formwork, and achieving ideal construction effect without adding additional additives.
Setting time: the initial setting time is ≥[X] hours, and the final setting time is ≤[X] hours, so as to ensure that the construction operation has enough time, and at the same time, ensure that the material has a certain strength within a reasonable time, which is convenient for the subsequent construction process.
Expansibility: During the construction process and after hardening, the material should have appropriate expansibility to compensate the shrinkage at high temperature, ensure close combination with surrounding structures and avoid cracks.
III. Packaging and Transportation Requirements
Packaging: [specific packaging method, such as 25kg plastic woven bag or kraft paper bag] is adopted, lined with moisture-proof film, to ensure that the materials are protected from moisture and pollution during transportation and storage. Each bag should be accompanied by product certification, production date, batch number and other identification information.
Transportation: Rain-proof, sun-proof and moisture-proof measures should be taken during transportation to avoid the materials from caking due to moisture. The means of transport shall be clean and dry, and shall not be mixed with acid, alkali, oil and other substances.
IV. Quality Control and Inspection
Your company needs to provide detailed product quality control system documents, including operation procedures and records of raw material procurement inspection, production process monitoring and finished product inspection.
Before leaving the factory, each batch of products should be sampled and inspected according to the inspection standards provided by our company, and complete inspection reports should be provided, including chemical composition analysis and physical performance test results.
Our company has the right to re-examine the goods after receiving them. If quality problems are found, you need to deal with them within [X] working days and bear all the expenses and losses arising therefrom.
V. Delivery Date and After-sales Service
Delivery date: production and delivery shall be completed within [X] days from the date of signing the contract, and the specific delivery date shall be subject to our written notice.
After-sales service: Your company should provide a quality guarantee period of at least [X] years. During this period, if the product is damaged or its performance is degraded due to quality problems, your company should be responsible for free maintenance or replacement and bear relevant expenses. At the same time, your company should provide technical support, including construction guidance and product use training.
Please provide detailed quotation scheme and technical scheme according to the above requirements and reply within [X] working days. If you have any questions or need further communication, please feel free to contact us.
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
① Chemical analysis.
②Physical properties.
Packaging & shipping:

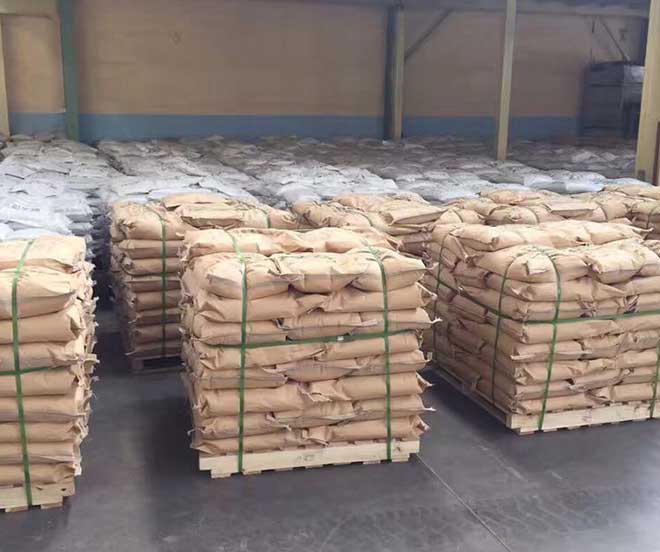

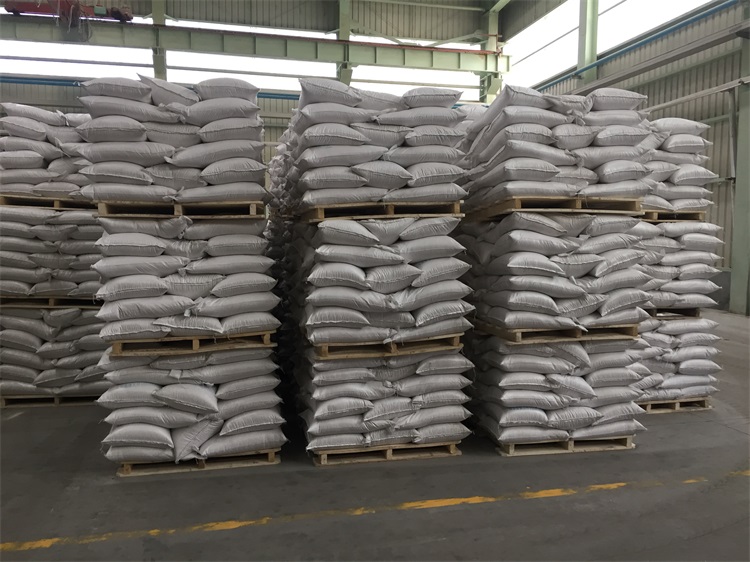

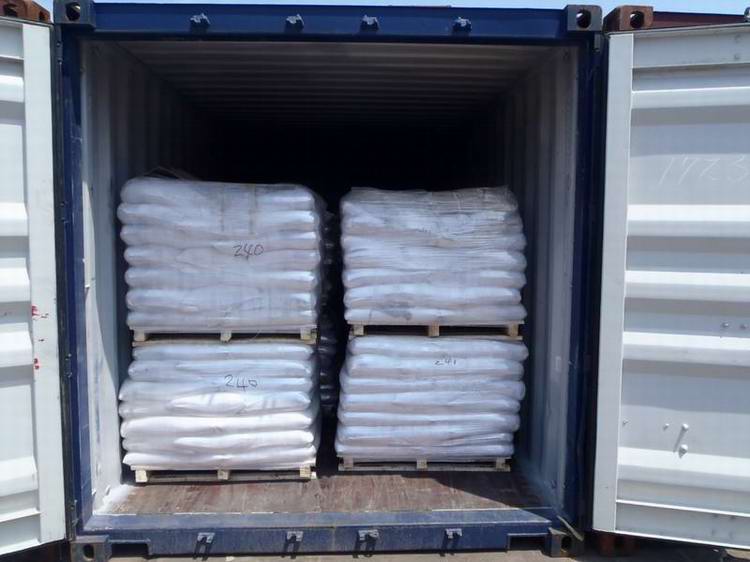

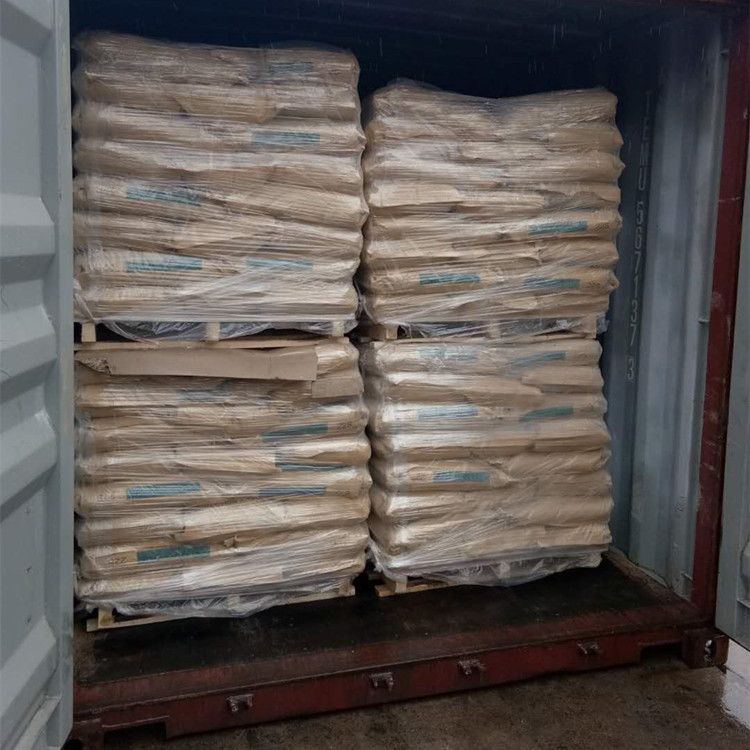

Packaging:

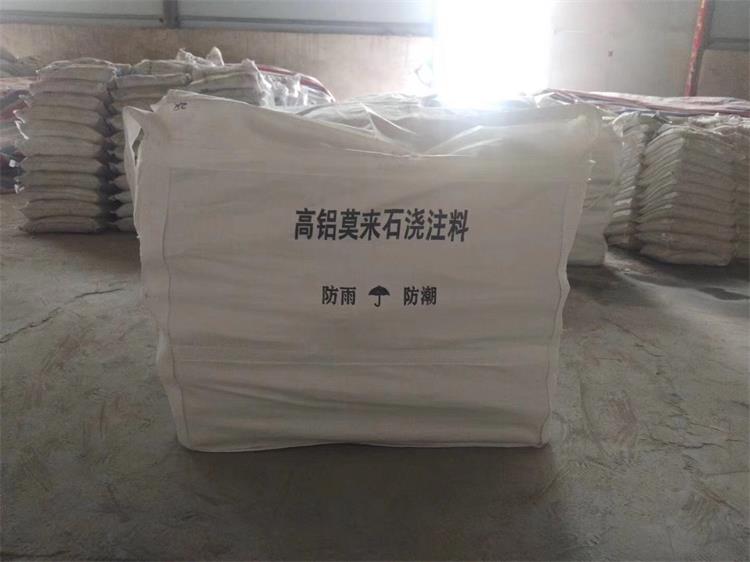

1. 25kg plastic woven bag or kraft paper bag in 1000-1500kg big bag.
2. 25kg plastic woven bag or kraft paper bag on pallet and covering by plastic films.
Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data,Quantity, Application and Port of discharge etc. we'll quote you our best price as soon.
Q2. What is the service life of your castable?
A: The service life of different castable is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
