In the field of high-temperature industries, refractory materials are key to ensuring the stable operation of equipment and production efficiency. Calcined flint clay, as an important refractory raw material, is widely used in the production of refractories due to its excellent high-temperature and physical and chemical stability. This article will detail the characteristics, applications, production process, and the important position of calcined flint clay in the refractory material field.

I. Definition and Properties of Calcined Flint Clay

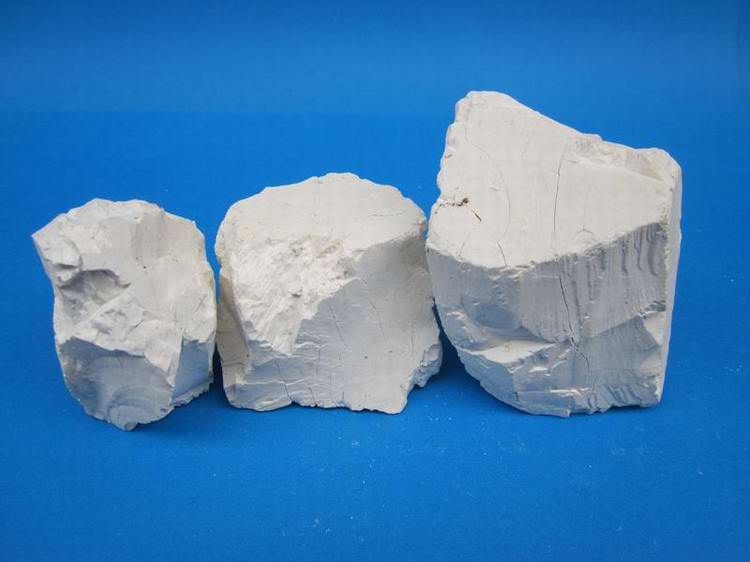

Calcined flint clay, also known as calcined flint or calcined flint clinker, a refractory clay mineral that has undergone high-temperature calcination treatment. Its main components include alumina (Al₂O₃) and silica (SiO₂) usually with a small amount of iron oxide (Fe₂O₃) and other impurities. Calcined flint clay has the following significant properties:

High refractoriness The refractoriness of calcined flint clay usually exceeds 1750°C, which allows it to maintain stability in extreme high-temperature environments without melting or de.

Physical and chemical stability: Calcined flint clay has good chemical stability at high temperatures, resisting the erosion of acidic and alkaline substances and is not to chemical reactions with other substances.

High density and low porosity: Calcined flint clay has a dense structure, high density, and low porosity, thus providing resistance to erosion and permeability.

Low water absorption: Calcined flint clay has extremely low water absorption, which can effectively prevent evaporation and expansion of moisture at high temperatures thereby reducing structural damage caused by moisture.

Pure white color: After high-temperature calcination, calcined flint clay usually appears pure white, which gives it high application in the ceramics and precision casting fields.

II. Applications of Calcined Flint Clay

Due to its excellent properties, calcined flint clay is used in several high-temperature industrial fields, mainly including:

1. Refractories

Calcined flint clay is a key raw material for producing high-qualityractory bricks, refractory castables, ceramic fiber products, etc. Its high refractoriness and physical and chemical stability allow it to be used in high-temperature furn for a long time, protecting the furnace body structure and extending the life of equipment. For example:

Metallurgical industry: Used as the lining material for equipment such as furnaces, converter, and heating furnaces.

Building materials industry: Used as the insulation layer and lining material for cement rotary kilns.

Ceramics industry Used as the lining and insulation material for ceramic kilns.

2. Precision Casting

In precision casting, calcined flint clay is used as casting sand and core. Its high refractoriness and low water absorption can ensure the smooth flow of molten metal during the casting process, reduce casting defects, and improve casting quality. For example:

Aerospace field: Used in the manufacture of high-precision aircraft engine components.

Automotive manufacturing industry: Used in the production of high-quality car engine blocks transmission parts.

3. Ceramic Products

Fused alumina is one of the important raw materials for ceramic products. Its pure color and high density can improve the quality and appearance of ceramic products, and its good chemical stability can also ensure the stability of ceramic products during the high-temperature firing process. For:

Daily-use ceramics: Used for the production of high-quality tableware, sanitary ceramics, etc.

Industrial ceramics: Used manufacturing wear-resistant ceramic parts and high-temperature ceramic materials.

4. Other High-temperature Applications

Fused alumina can also be used to produce crucibles,n furniture, high-temperature furnaces and other high-temperature equipment. Its high refractoriness and corrosion resistance allow it to operate stably for a long time under extreme, reducing equipment maintenance costs.

III. Production Process of Fused Alumina

The production process of fused alumina includes raw material preparation, high-temperature sintering cooling and crushing and screening, etc.:

1. Raw Material Preparation

Selecting high-quality fused alumina ore is the key to ensuring product quality. The ore crushed, screened and selected to remove impurities, ensuring that its chemical composition and physical properties meet the requirements.

2. High-temperature Sintering

The processed ore is placed a high-temperature sintering furnace, sintered at 1300-1500°C, and physical and chemical changes occur, forming a stable crystal. The sintered fused alumina has higher refractoriness and physical and chemical stability.

3. Cooling and Crushing and Screening

The sintered fused alumina cooled naturally or forcibly, and then crushed and screened to meet the particle size requirements for different application needs. Common particle size specifications include 0-1mm, 13mm, 3-5mm, etc., and powder specifications include -200 mesh, -270 mesh, -325 mesh, etc.4. Quality Inspection

After production is completed, the fused alumina is subject to strict quality inspection, including chemical composition analysis, physical property testing, particle size distribution testing,., to ensure that the product meets the standard.

IV. Quality Control of Fused Alumina

In order to ensure the quality and performance of fused alumina, strict quality control system is needed during the production process. The main quality inspection items include:

Chemical composition analysis: Detect the content of main components such as Al₂₃, SiO₂, Fe₂O₃, etc., to ensure that it meets product standards.

Physical property testing: Detect physical property indicators such as density porosity, water absorption, etc., to ensure that it meets the requirements of refractory materials.

Particle size distribution testing: Ensure that the particle size distribution of alumina is uniform through sieving experiments, to meet different application needs.

Mineral composition analysis: Detect the main mineral composition of fused alumina through X-ray diffraction other technologies, such as the content of mullite (Mullite).

PH value testing: Test the acidity and alkalinity of fused alumina to ensure that will not have adverse effects on other materials during use.

V. Packaging and Transportation of Refractory Materials

Refractory materials are usually packed in ton bags or small packages (2kg/bag) to ensure safety during transportation. The packaging helps to effectively prevent moisture, contamination, and damage, ensuring that the products arrive at the customer's hands in good. Common packaging methods include:

Ton bag packaging: 1000kg large bag packaging, suitable for bulk transportation.

Small packaging: 25kg plastic bags or kraft paper bags, suitable for small-scale transportation.

Pallet packaging: Small packages are placed on pallets and covered with plastic film, which is convenient for and unloading and transportation.

VI. Future Development of Refractory Materials

With the continuous development of high-temperature industrial technology, the application scope of refractory will be further expanded. In the future, refractory materials will develop towards higher purity, higher refractoriness, lower impurity content, and finer particle size. At the same, environmental-friendly and high-performance refractory material products will also become the future development trend to meet the increasingly stringent environmental protection requirements and the needs of high-end industrial.

VII. Summary

As an important raw material for refractory materials, refractory materials, with their excellent characteristics such as high refractoriness, physical and stability, and low water absorption, play an important role in various fields such as refractory materials, precision casting, and ceramic products. Through strict quality control and production process optimization refractory materials can meet the high standards of different industrial scenarios and provide reliable protection for the stable operation of high-temperature industries. With the continuous progress of technology and the in market demand, refractory materials will continue to occupy an important position in the refractory material industry, promoting the sustainable development of high-temperature industries
