In modern industry, the extensive application of high-temperature furnaces and kilns has put forward high requirements for refractory materials. an important type of refractory material, insulating bricks play an indispensable role in various industrial fields with their excellent thermal insulation performance and energy-saving effects. This paper will introduce detail the properties, classification, application, and the important position of insulating bricks in industrial energy conservation.

I. Properties of Insulating Bricks

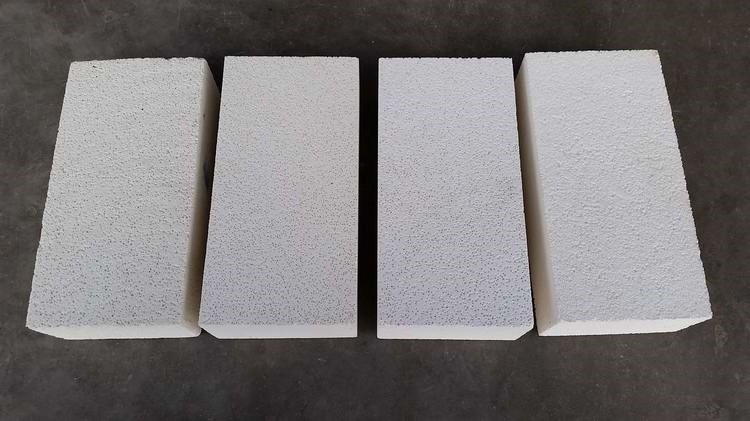

Insulating bricks, also as light-weight refractory bricks, are a kind of light-weight thermal insulation refractory material. They have significant characteristics such as low density, low thermal conductivity, high refractoriness. These properties enable them to effectively reduce heat transfer in high-temperature environments, thereby reducing energy consumption. Specifically, the main properties of insulating bricks include:

Low thermal conductivity: The thermal conductivity of insulating bricks is much lower than that of traditional heavy refractory bricks, which means they can more effectively block heat transfer and reduce heat loss furnaces and kilns.

High refractoriness: The refractoriness of insulating bricks is usually between 1610-1780 degrees Celsius, can withstand the long-term test of high-temperature environments without melting or deformation.

Low specific heat: Due to their low-density characteristics, insulating bricks require less energy to absorb and release heat, which makes the furnace or kiln heat up or cool down more quickly, further improving the efficiency of energy use.

Good thermal shock resistance: Insulating can maintain structural stability when rapidly switching between high and low temperatures without cracking or peeling off due to temperature changes.

High strength and corrosion resistance: Insulating bricks have high mechanical, which can withstand mechanical impacts and chemical erosion in the furnace, extending the service life.

II. Classification of Insulating Bricks

Insulating bricks are typically divided into three series, A,, and C, based on their performance and the temperature range in which they are used. Each series is further subdivided into multiple models according to different temperature and density requirements meet the needs of different industrial scenarios.

A Series Insulating Bricks

The A series insulating bricks are mainly used for the insulation layer of medium and low-temperature furnaces Their characteristics include:

A reheating temperature range between 900-1500 degrees Celsius, which can meet the needs of most industrial furnaces.

lower density, usually between 0.50-0.75 grams/cubic centimeter, providing good insulation properties.

A cold compression strength between 5-0 kilograms/square centimeter, able to withstand a certain amount of mechanical pressure.

B Series Insulating Bricks

The B series insulating bricks are suitable for the insulation of medium and high-temperature furnaces, with higher density and strength. Their characteristics include:

A reheating temperature range between 900-1500 degreeselsius, similar to the A series, but with a higher density, usually between 0.70-1.00 grams/cubic centimeter.

A cold strength between 25-30 kilograms/square centimeter, able to withstand greater mechanical pressure.

A lower thermal conductivity, maintaining good insulation performance in high-temperature.

C Series Insulating Bricks

The C series insulating bricks are high-end products in the insulating brick category, suitable for the insulation layer of high-temperature furnaces Their characteristics include:

A reheating temperature range between 1300-1500 degrees Celsius, able to withstand extremely high temperatures.

A higher density usually between 1.10-1.25 grams/cubic centimeter, providing higher strength and better insulation properties.

A cold compression strength between 50100 kilograms/square centimeter, able to withstand extreme mechanical pressure.

An extremely low thermal conductivity, maintaining optimal insulation performance in high-temperature environments.

III Application of Insulating Bricks

Insulating bricks are widely used in the insulation layer and lining of various industrial furnaces, with their main application areas including:

Metallurgical

During the production of steel, insulating bricks are widely used in the insulation layer of equipment such as blast furnaces, converter furnaces, and heating furnaces. They can effectively heat loss, improve the energy utilization efficiency of the furnace, and reduce production costs. For example, the use of insulating bricks in the insulation layer of blast furnaces can reduce the transfer to the furnace wall, thereby reducing the temperature of the furnace wall and extending the service life of the furnace wall.

Building Materials Industry

In cement production, insulating bricks used in the insulation layer of rotary kilns. They can effectively reduce heat loss, improve the thermal efficiency of rotary kilns, and reduce energy consumption. In addition, bricks are also used in the insulation layer of glass furnaces, which can effectively reduce the heat transfer to the outside of the furnace, improving the energy utilization efficiency of the glass furnace

Ceramics Industry

During the firing process of ceramics, insulating bricks are used in the insulation layer of kilns. They can effectively reduce heat loss, improve thermal efficiency of the kiln, and reduce energy consumption. At the same time, insulating bricks can also protect the lining of the kiln, extending the service life of the kil.

Chemical Industry

In chemical production, insulating bricks are used in the insulation layer of various reactors and cracking furnaces. They can effectively reduce heat loss, improve the efficiency of the furnace, and reduce energy consumption. In addition, insulating bricks can also withstand corrosive gases generated during chemical reactions, extending the service life of the furnace

IV. The Significant Role of Insulation Bricks in Industrial Energy Saving

In the context of today' energy-strained background, industrial energy saving has become an important topic. As an efficient insulation material, insulation bricks can significantly reduce heat loss in furnaces and kilns, improve efficiency of energy utilization, and thus play an important role in industrial energy saving. According to relevant research, the use of insulation bricks in furnaces can reduce heat loss by 3%-50% compared to traditional furnaces, which means a significant amount of energy is saved. In addition, insulation bricks have a long service life and can continue to play a in energy saving over a long period of use, bringing significant economic benefits to enterprises.

V. Production and Quality Control of Insulation Bricks

The production of insulation requires a strict quality control system to ensure the performance and quality of the products. During the production process, it is necessary to strictly screen the raw materials to ensure that their chemical composition physical properties meet the requirements. At the same time, it is necessary to strictly inspect the products' size, density, strength and other indicators during the production process to ensure that they the standards. In addition, the appearance of the product needs to be checked to ensure that it is smooth, crack-free, and defect-free.

VI. The Development of Insulation Bricks

With the continuous development of industrial technology, the application range of insulation bricks will continue to expand. In the future, insulation bricks will achieve further development the following aspects:

Research and development of high-performance insulation bricks: With the continuous progress of high-temperature furnace technology, the performance requirements for insulation bricks will be higher higher. In the future, insulation bricks with higher refractoriness, lower thermal conductivity, and higher strength will be developed to meet the needs of industrial development.

Development of-friendly insulation bricks: In the context of increasingly stringent environmental policies, the development of environmental-friendly insulation bricks will become the future development trend. Environmental-friendly insulation bricks will use-free raw materials and will not produce harmful gases and waste during the production process, meeting environmental requirements.

Application of intelligent insulation bricks: With the continuous development of intelligent technology intelligent insulation bricks will become the future development direction. Intelligent insulation bricks will have functions such as temperature sensing and automatic adjustment and will be able to automatically adjust the insulation effect according to temperature change of the furnace, further improving the energy utilization efficiency.

In summary, as an important refractory material, insulation bricks play an irreplaceable role in high- industries. Its excellent insulation performance and energy-saving effect make it have an important position in industrial energy saving. With the continuous progress of technology, insulation bricks will be more widely and developed in the future, making greater contributions to industrial energy saving and sustainable development.
