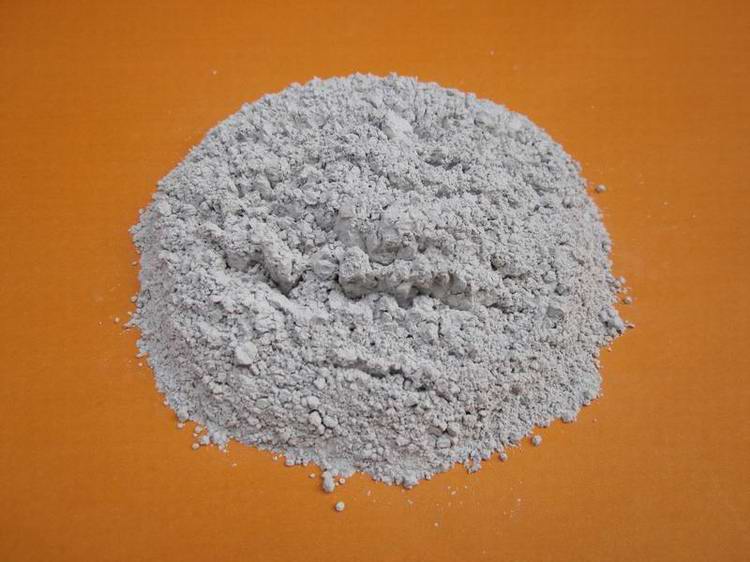

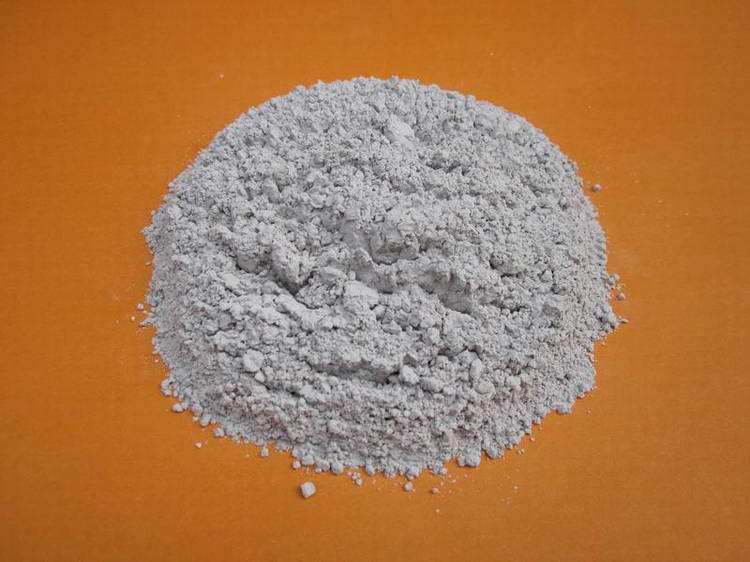

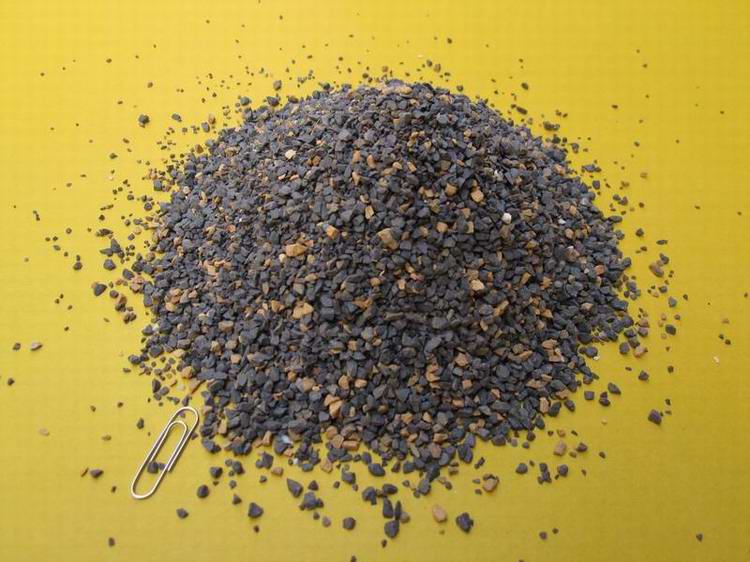

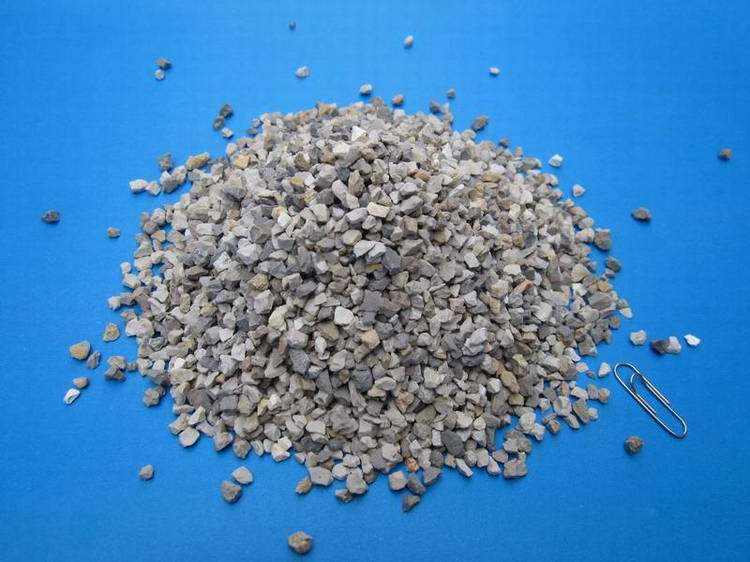

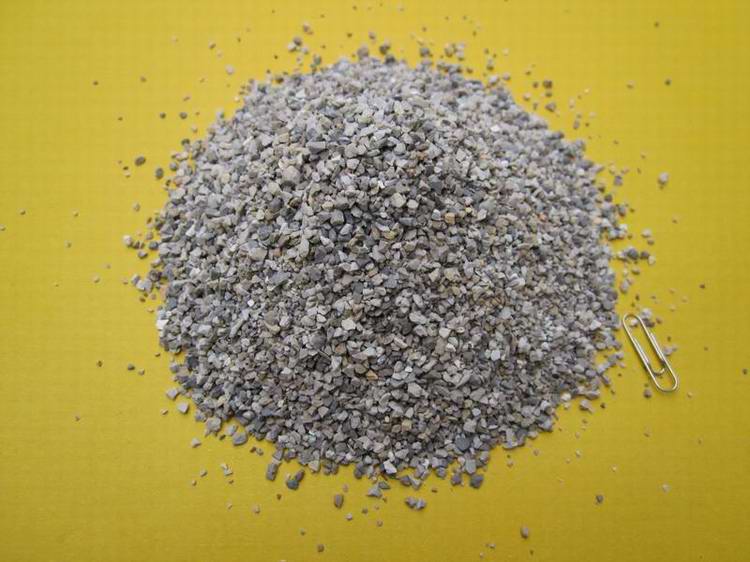

Sintered Mullite Is A High-quality Refractory Raw Material
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
1. High mullite phase.
2. Low porosity.
3. High refractoriness.
Features：
1 .Good thermal shock resistance .
2. High-temperature creep is small.
3. Load softening temperature is high.
4. High mullite phase.
5. Volume density high, high hardness.
6. Uniform expansion.
7. Low porosity.
8. High refractoriness.
9. Anti chemical corrosive good.
Physical and chemical indexes:

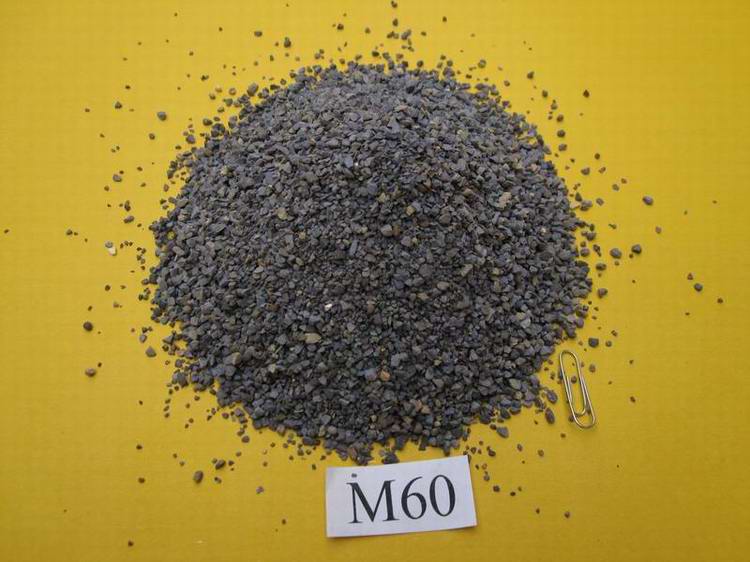

Item/Grade | M45 | M47 | M60 | M70 |
Al2O3 (%, MIN.) | 45 | 47 | 60 | 70 |
Fe2O3 (%, MAX.) | 1.0 | 1.20 | 1.35 | 1.30 |
SiO2 (%,MAX) | 52 | 50 | 37 | 27 |
TiO2 (%) | 0.8 | 1.0 | 1.80 | 0.80 |
K2O (%) | 0.08 | 0.08 | 0.10 | 0.10 |
Na2O (%) | 0.08 | 0.08 | 0.08 | 0.10 |
MgO (%) | 0.10 | 0.10 | 0.10 | 0.10 |
CaO (%) | 0.30 | 0.30 | 0.35 | 0.35 |
Buld density (g/cm3) | 2.55 | 2.64 | 2.78 | 2.80 |
Refractoriness (deg .C, MIN.) | 1750 | 1790 | 1820 | 1850 |
Apparent porosity (%, MAX.) | 2.0 | 2.0 | 2.8 | 2.8 |
Mullite (%, MIN.) | 55 | 65 | 78 | 78 |
Application:
Sintered mullite is a high-quality refractory raw material, Can be used in the manufacture high quality refractory products.
In order to ensure to provide you with the products and services that best meet your needs, please provide the following specific customization requirements before confirming your order:
I. Product specification requirements
Chemical composition requirements:
Please specify the chemical composition range of the required products, especially the specific requirements of Fe₂O₃, SiO₂, Al₂O₃, TiO₂, KO, Na₂O, MgO, CaO and other indicators.
If you have any special ingredient requirements, please specify.
Physical performance requirements:
Bulk density (g/cm)
Apparent porosity (%)
Fire resistance (℃)
Mullite phase content (%)
Other special physical performance requirements (such as thermal shock stability, high-temperature creep performance, load softening temperature, etc.).
II. product granularity requirements

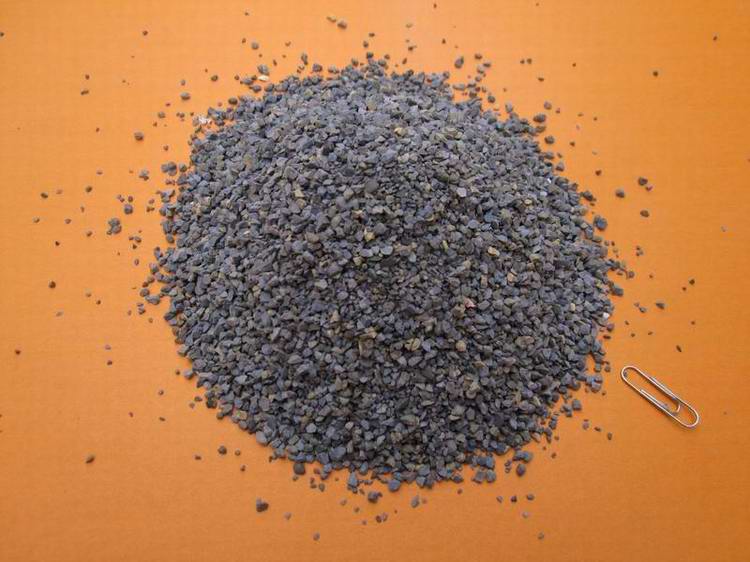

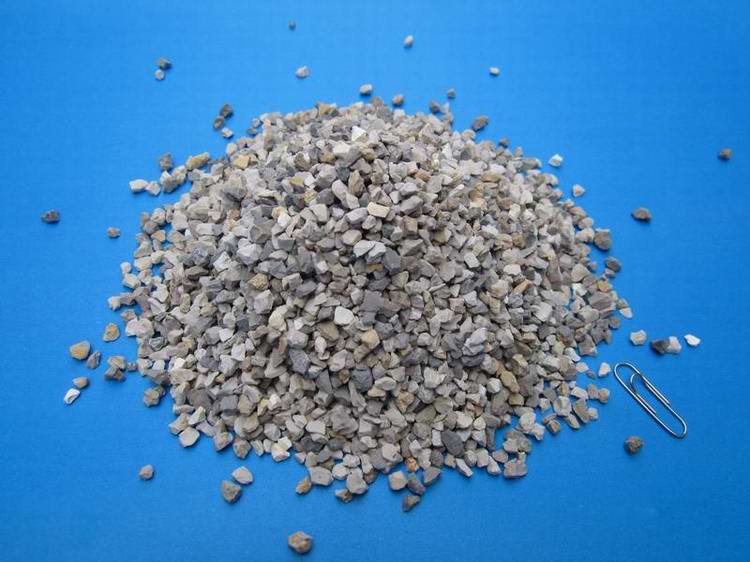

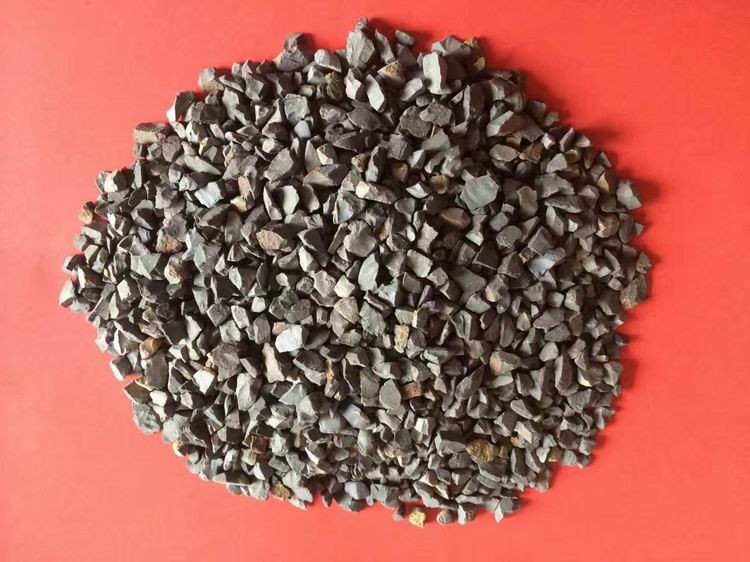

Please specify the size distribution range or specific size specifications (such as 0-1mm, 1-3mm, 3-5mm, etc.) of the required products, so that we can carry out accurate production.
III. Requirements for packaging methods
Please confirm the required packaging method (such as 25kg plastic woven bag or kraft paper bag, or ton bag packaging) and whether pallet packaging or special packaging marks are needed.
IV. Transportation and delivery requirements
Please specify the port of delivery, mode of transportation (such as sea, land or air) and delivery time requirements, so that we can arrange production and logistics reasonably.
V. Other special requirements
If you have other special requirements (such as product inspection report, third-party inspection, special identification, product use description, etc.), please let us know.
Please provide the above detailed information so that we can accurately evaluate and provide you with the best products and services. If you have any questions or need further communication, please feel free to contact us.
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Particle size distribution.
2. Chemical analysis.
3. Physical properties.
4. Mineralogical composition.
5. PH value.
Packaging & shipping:
Packaging:

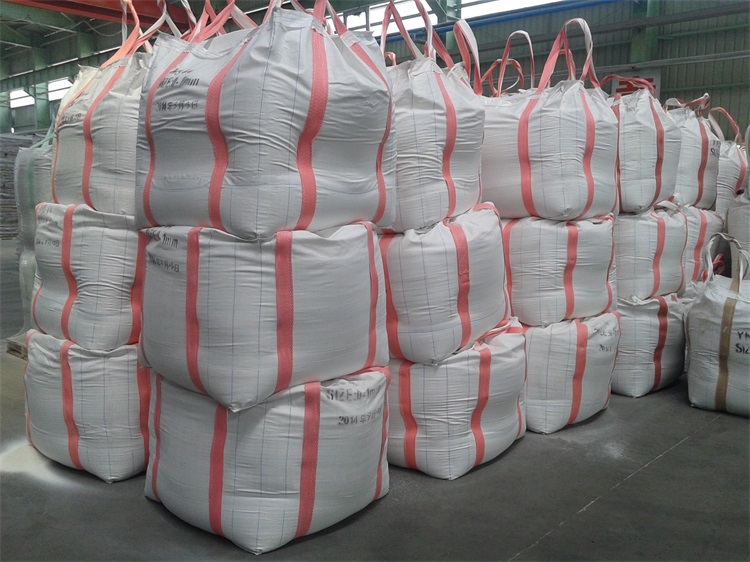

1. 25kg plastic woven bag or kraft paper bag in 1000-1500kg big bag.

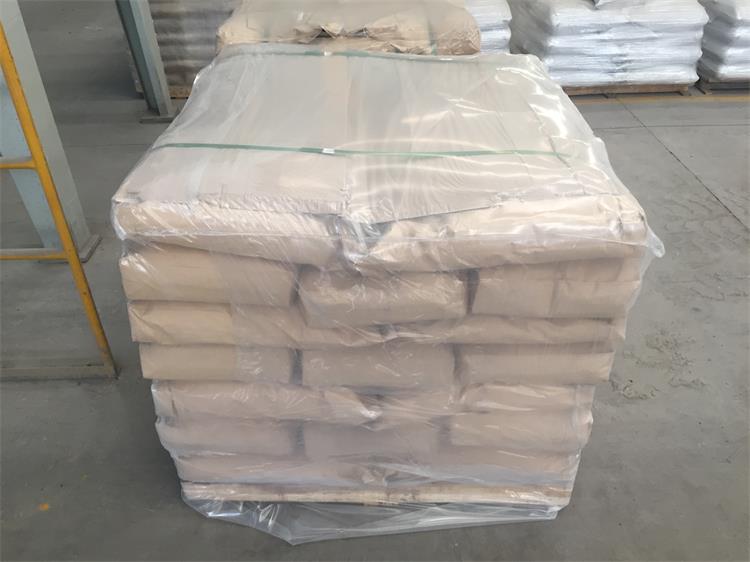

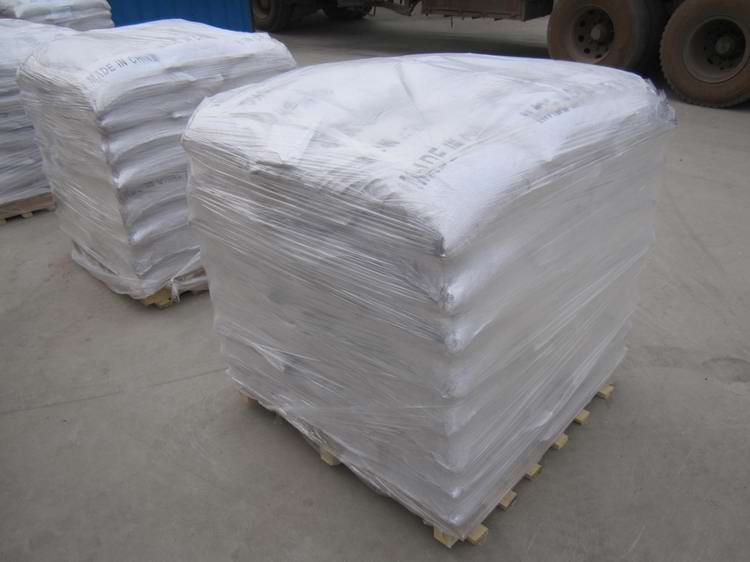

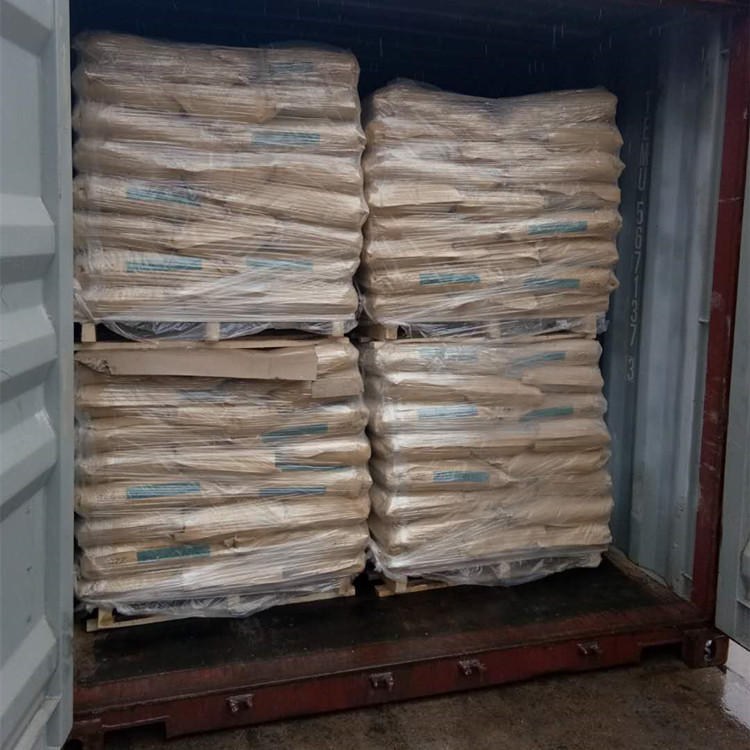

2. 25kg plastic woven bag or kraft paper bag on pallet and covering by plastic films.
Shipping:

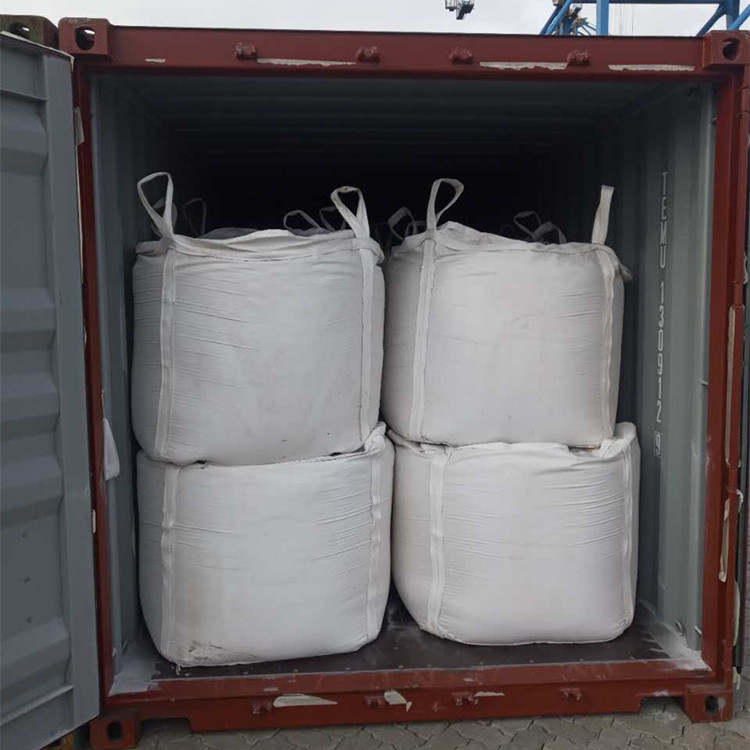

20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data,Quantity, Application and Port of discharge etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
About our company:
Our company is the specialized manufacturer and exporter of refractory materials and refractory raw materials in China. Our products mainly include Refractory castable, Synthetic sintered mullite, Calcined flint clay, Calcined kaolin ,Primarily export to UK,Korea,Greece,Spain,Italy,Australia,Mexico Indonesia, Iraq, Jordan, Iran,Malaysia and Russia etc.
