High Temperature Binder for Refractory Bricks
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:

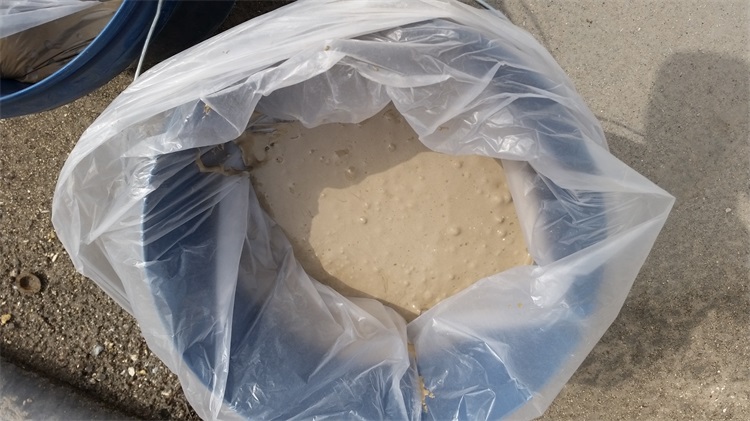

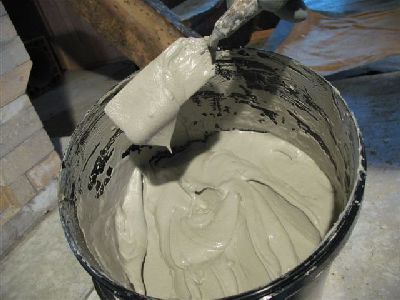

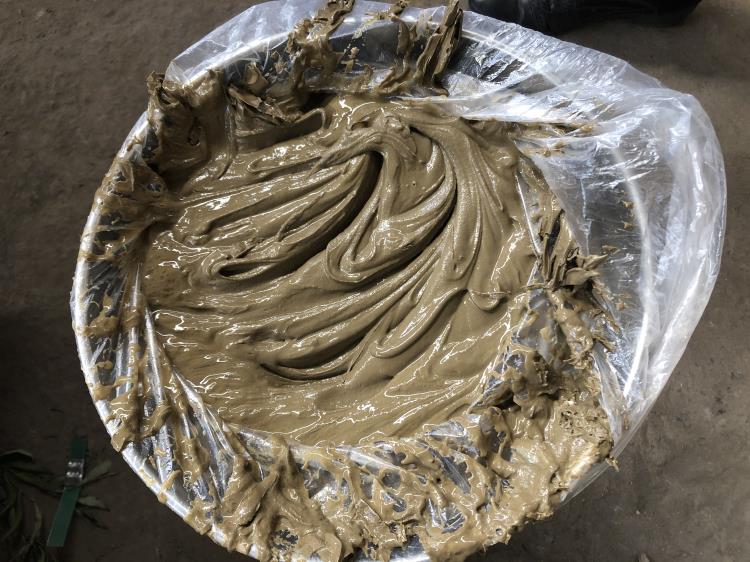

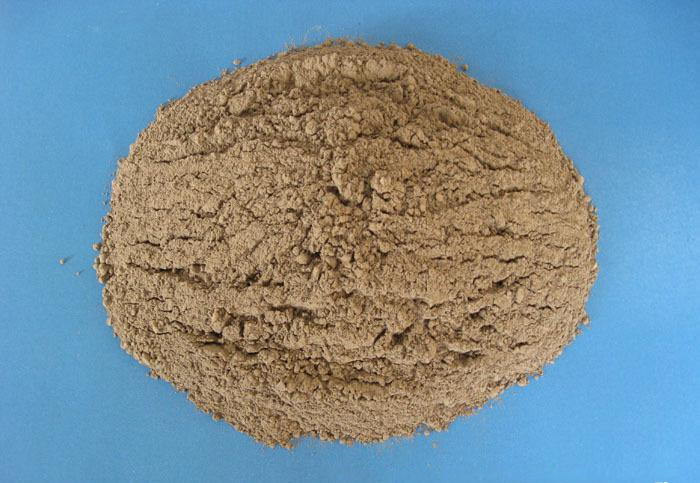

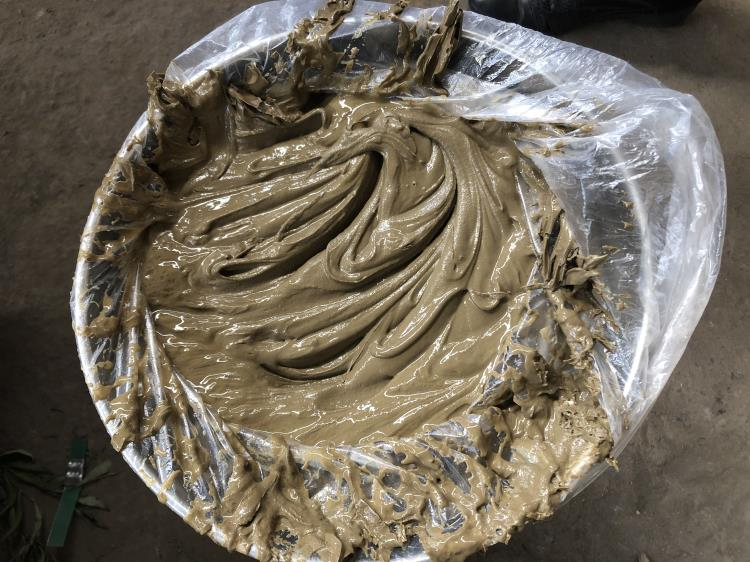

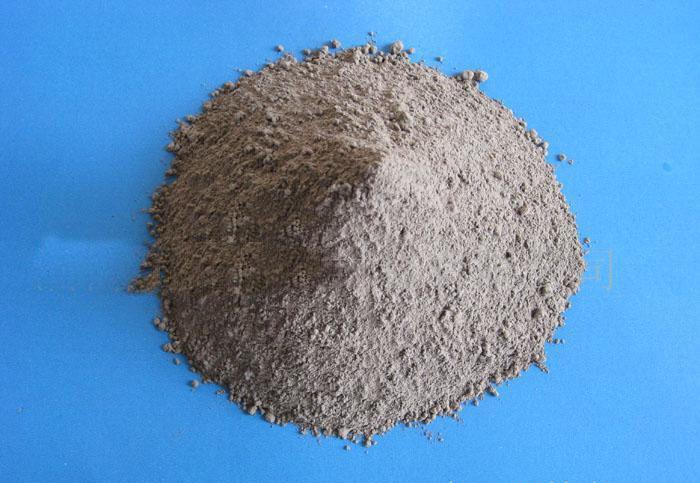

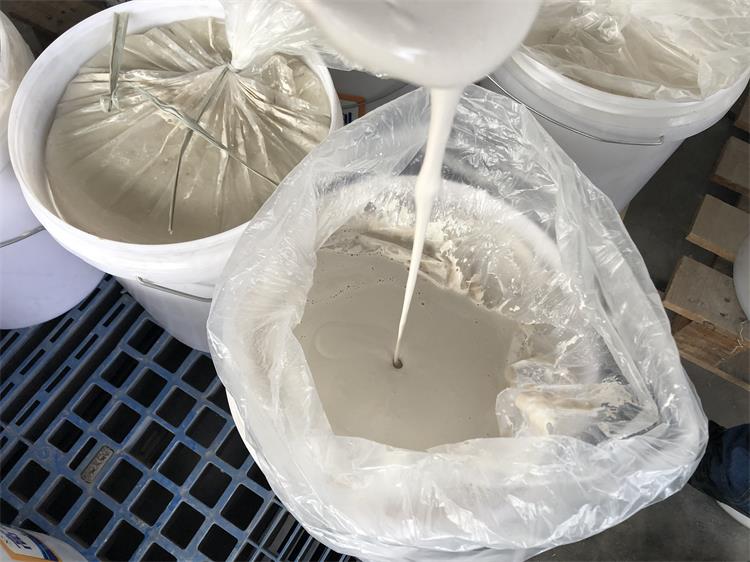

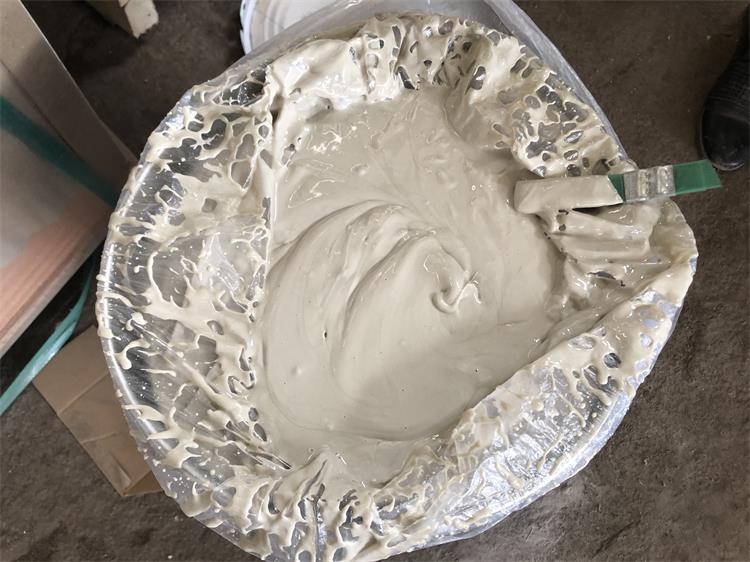

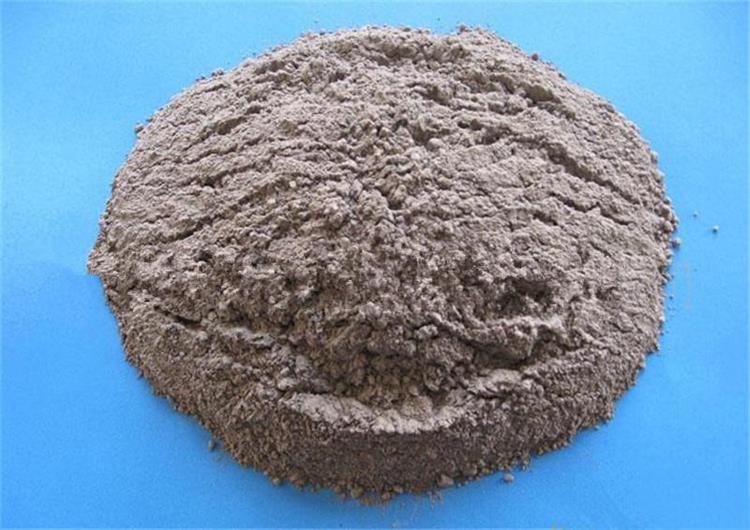

The refractory mortar is an amorphous refractory material used for laying refractory bricks and coat lining high temperature kiln. Its quality directly determines the construction quality and service life of the kiln. Therefore, the choice of refractory mortar is crucial.
Characteristics：
1. High adhesive strength.
2. Thermal expansion coefficient is low.
3. Heating linear change small.
4. Granularity standard.
5. Construction performance is strong.
Teachnical Data:
Items/Type | Fire clay refractory mortar | High aluminum refractory mortar | ||||||
Class | CM-38 | CM-42 | CM-45 | HM-55 | HM-65 | HM-75 | HM-85 | |
Chemical composition,% | AL2O3, ≥ | 38 | 42 | 45 | 55 | 65 | 75 | 85 |
Refractoriness °C ≥ | 1710 | 1730 | 1750 | 1770 | 1790 | 1800 | 1850 | |
Bonding time ,min | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
Modulus of rupture, MPa ≥ | 110°C×24h | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
°C | 1200×3h | 1300×3h | 1300×3h 4 | 1400×3h | 1400×3h | 1500×3h 5 | 1500×3h 5 | |
Particle size,% | -1.0mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
+0.5mm ,≤ | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
-0.074mm,≥ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Using temperature, | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1650 | |
Application:

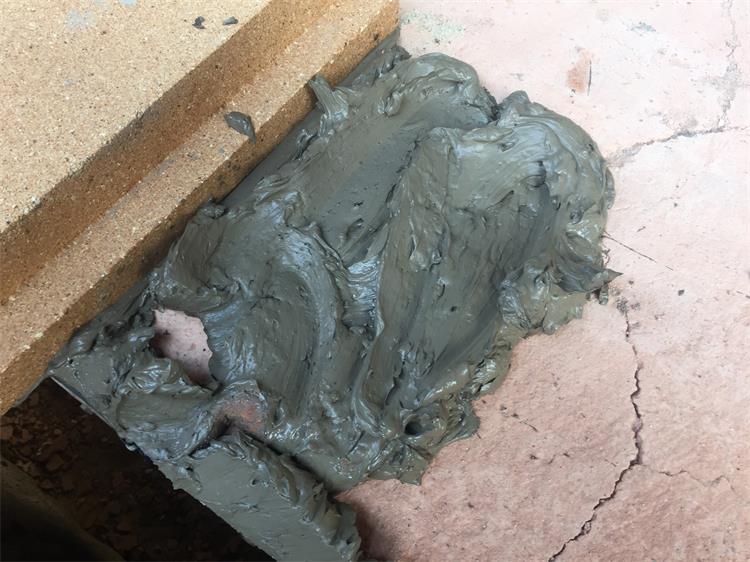

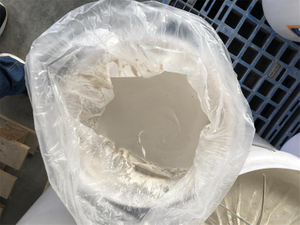

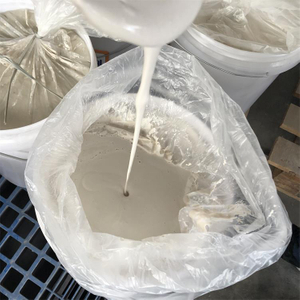

Refractory mortar is mainly used for laying refractory bricks, Insulation brick and repair of furnace lining.
Customization requirements of high temperature cement:
I. Product specifications and performance requirements
(1) chemical composition requirements
Clearly specify the range of aluminum content (Al₂O₃), for example, you want the aluminum content of the product to reach 50%-60%. Aluminum content will affect the key characteristics of products, such as fire resistance and bond strength, and different usage scenarios have different requirements for aluminum content.
If there are specific requirements for other chemical components (such as SiO₂, Fe₂O₃, etc.), please also let us know to ensure the stability of the product in a specific chemical environment.
(2) Fire resistance temperature requirements
According to the highest working temperature of the equipment you use, define the fire-resistant temperature that the high-temperature cement needs to reach. For example, if the highest temperature of your industrial furnace is 1500℃, you need to customize high-temperature cement with a fire-resistant temperature not lower than 1500℃ to ensure that there will be no phenomena such as melting and decomposition that affect the structural stability in high-temperature environment.
(3) Bond strength requirements
Describe the bond strength requirements of products at different temperatures. For example, the bond strength should reach X Mpa at room temperature and above Y Mpa at high temperature (such as 1200℃). Bonding strength is directly related to the fixing effect of high-temperature cement on refractory bricks and other materials, which is very important for the stability of furnace structure.
(4) granularity requirements
Specify the particle size range, such as all particles pass through the 1.0mm sieve, and the particle content of +0.5mm is not more than 2%, and the particle content of -0.074mm is not less than 50%. Appropriate particle size distribution is helpful to improve the construction performance and filling effect of the product, ensure that the mortar can fully fill the brick joints, and enhance the sealing and strength of the overall structure.
II. Construction performance requirements
(1) the construction time requirements
State your expected construction time range, for example, you want the construction time of high-temperature cement to be between 10 and 15 minutes. Too short a construction time may lead to insufficient operation by construction personnel, while too long a construction time may affect the production progress. It is necessary to determine the appropriate construction time according to your actual construction conditions and technological process.
(2) Adaptability of construction environment
Describe the conditions such as temperature and humidity of the construction environment. For example, the temperature range of the construction environment is 5℃-35℃, and the humidity does not exceed 80%. Different construction environments will affect the hardening process and final performance of high-temperature cement. We need to adjust the formula according to the environmental conditions to ensure that the product can be constructed normally and achieve the expected performance in a specific environment.
III. Packaging and Transportation Requirements
(1) Packaging specifications
Determine the weight and size of the package, such as 25kg/ bag, plastic woven bag or kraft paper bag, whether pallet packaging is needed and pallet specifications. Appropriate packaging specifications are convenient for your warehousing and handling operations, and can also ensure the integrity of products during transportation.
(2)Mode and conditions of transportation
Specify the mode of transportation (such as road, railway, sea, etc.), and explain the requirements of temperature and moisture prevention during transportation. For example, it is required that the temperature should not be lower than 0℃ during transportation, so as to avoid the product from caking due to moisture and affect its performance.
IV. Quality Standards and Certification Requirements
（1）quality standard
Clarify the quality standards that the products are expected to meet, such as one or more international standards such as KS, JIS, ASTM, ASME, AMS and DIN. Different quality standards correspond to different performance indicators and testing methods. Choosing the appropriate standards can ensure the universality and reliability of products in the international market.
(2) Certification requirements
If your project or market needs specific certification, such as CE certification and ISO certification, please let us know in advance, so that we can carry out quality control and document preparation according to the requirements of corresponding certification in the production process to ensure that the products can enter the target market smoothly.
V. Other special requirements
(1) color requirements
If you have specific requirements for the color of high-temperature cement (for example, to facilitate inspection or beauty after construction), please indicate the desired color, and we can meet your needs by adding pigments.
(2) Environmental protection requirements
If your usage scenario has strict requirements on environmental protection, such as the product cannot contain some harmful substances (such as heavy metals), please clearly point out that we will use raw materials that meet environmental protection standards for production.
(3) Special requirements of usage scenarios
Describe in detail what kind of equipment or parts the high-temperature cement will be used in, for example, building the furnace body of a glass melting furnace, repairing the lining of a ceramic firing kiln, etc. Different use scenarios may have different requirements on the corrosion resistance and thermal shock stability of the product, so that we can adjust the formula accordingly.
In order to ensure the accuracy and timeliness of customized products, please provide the above requirements as detailed as possible. If you have any questions or need further communication, please feel free to contact us. With the professional technical team and rich production experience, we will tailor high-quality high-temperature cement products for you to meet your individual needs and help your project go smoothly.
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
Professional quality testing.
① Chemical analysis.②Physical properties.
Packaging & shipping:

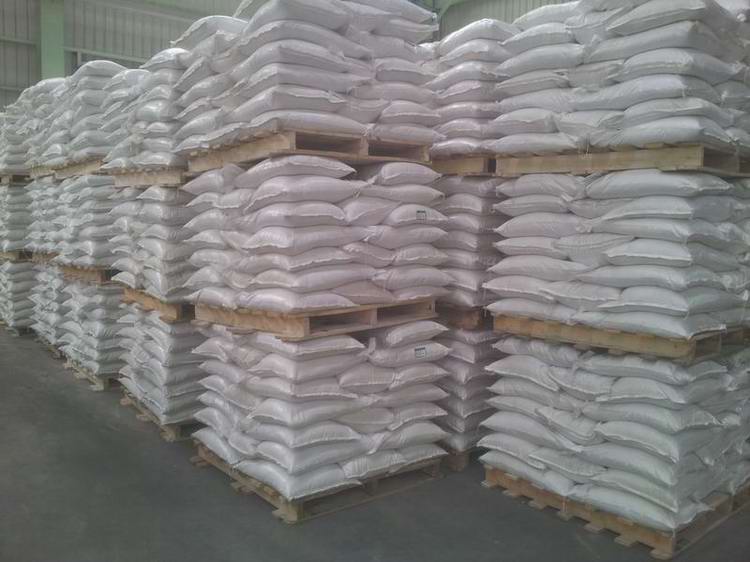

Packaging:

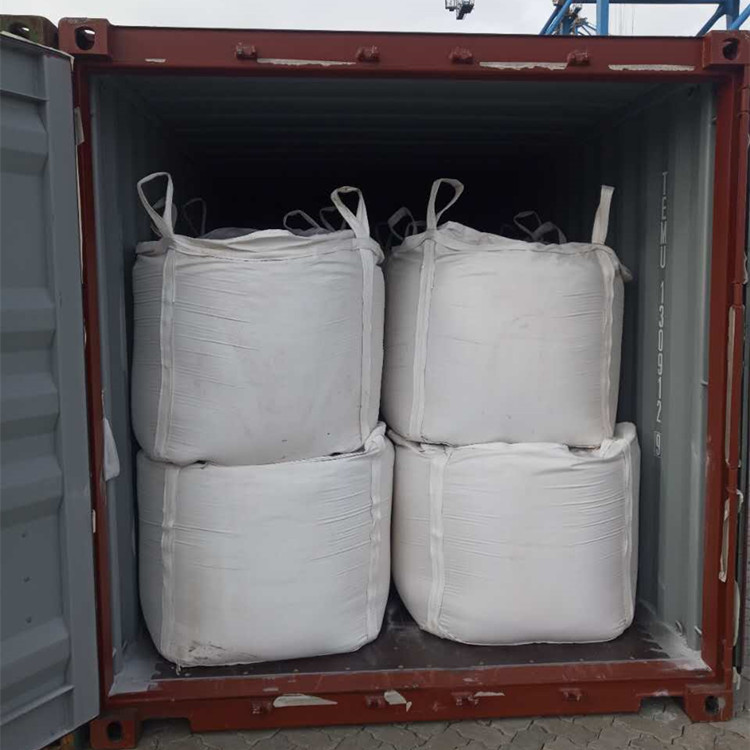

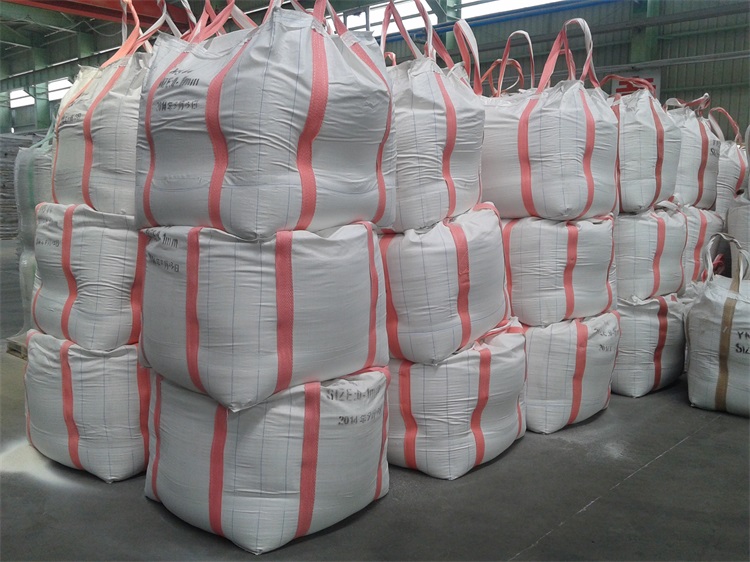

1. 25kg plastic woven bag or kraft paper bag in 1000-1500kg big bag.

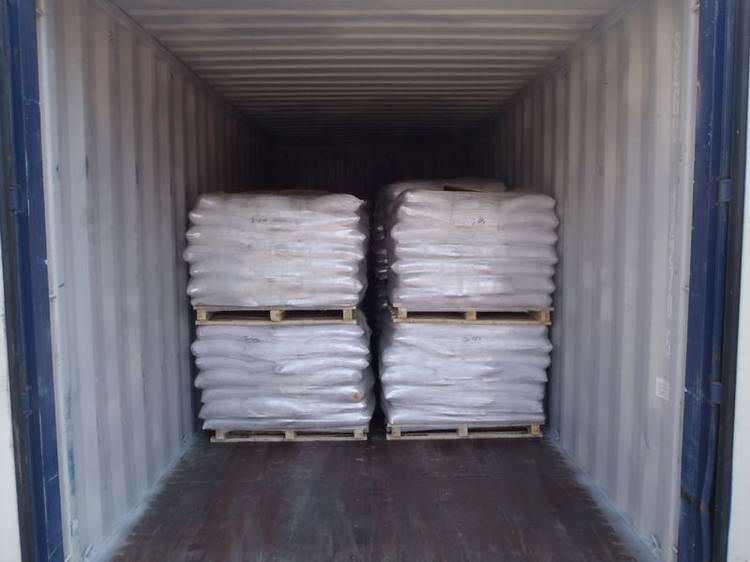

2. 25kg plastic woven bag or kraft paper bag on pallet and covering by plastic films.
Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory mortar, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
