In the field of precision casting, sprue cup, as a basic and vital component, plays an irreplaceable role. It is not only the key channel for liquid metal to enter the mold cavity, but also the core component to ensure the smooth casting process. In this paper, the characteristics, application, manufacturing and related advantages of the sprue cup will be discussed in depth to help readers fully understand the core components of this precision casting technology.

I. Definition and classification of sprue cup

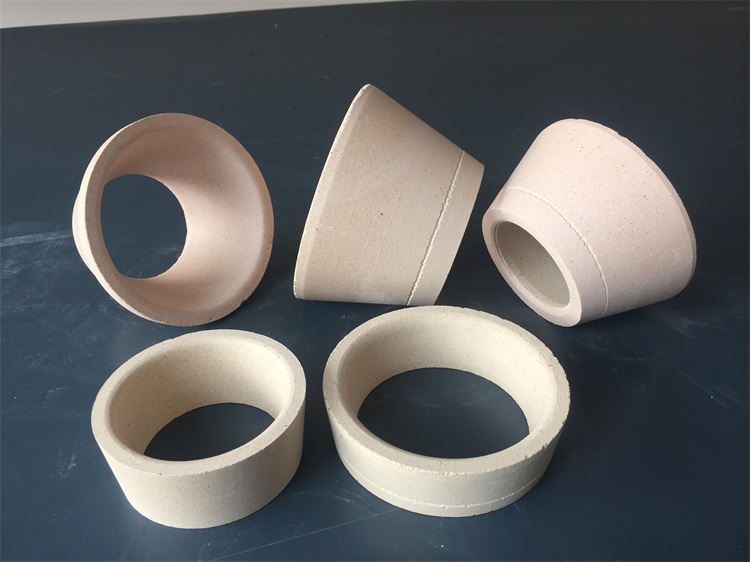

Pouring cup is a kind of container used to guide liquid metal to flow into the mold cavity. It is usually made of refractory materials, with high refractoriness, high strength and good thermal shock resistance. According to different application scenarios and design requirements, Sprue cups have various names and classifications, such as sprue, Casting cup, Investment casting cup and so on. Although these names are different, their core function is the same, that is, to provide a stable inflow channel for liquid metal and ensure that metal can fill the mold cavity smoothly and evenly.

II. Characteristics of Gate Cup

(1) High temperature stability

The sprue cup is made of refractory raw materials with fire resistance of 1670℃ to 1770℃ and sintered at high temperature. This material has excellent high-temperature stability, and can keep its structure intact in extreme high-temperature environment without peeling or deformation. This is very important to ensure the smooth flow of liquid metal at high temperature, because the instability of any material may lead to the obstruction of metal flow, which in turn affects the quality of castings.

(2) Thermal shock resistance

During the casting process, the sprue cup will undergo a rapid temperature change, from room temperature to high temperature, and then from high temperature to room temperature. This drastic temperature change puts forward extremely high requirements for the thermal shock resistance of materials. The material used in the sprue cup has good thermal shock resistance, which can effectively resist the thermal stress caused by rapid temperature change, thus prolonging the service life and reducing the damage caused by thermal shock.

(3) High strength and wear resistance

The sprue cup will be impacted and washed by liquid metal during use, so it needs high strength and wear resistance. The refractory material used in the tundish has high mechanical strength and wear resistance after high-temperature sintering, can withstand the strong impact of liquid metal without cracking, and can also resist the erosion of liquid metal, reduce wear and ensure the service life of the sprue cup.

(4) Slag resistance and high temperature corrosion resistance

In the casting process, liquid metal often carries some dross, which will corrode the inner wall of the sprue cup. In addition, chemical reactions in high temperature environment may also lead to corrosion of materials. The material of the sprue cup has good slag resistance and high temperature corrosion resistance, which can effectively resist the corrosion of slag and high temperature chemical reaction, thus ensuring the smooth inner wall of the sprue cup, reducing the resistance of molten metal flow and improving the quality of castings.

(5) High temperature thermoplasticity

The sprue cup has good thermoplasticity at high temperature, which can buffer thermal stress and reduce slag sticking. This feature enables the sprue cup to better adapt to the shape and size changes of the mold at high temperature, and at the same time, it can reduce the cracks and deformation caused by thermal stress, thus improving the quality and production efficiency of the casting.

III. Application of Gate Cup

The sprue cup is the basic component of precision casting technology and is widely used in various precision casting fields. Its main function is to guide the liquid metal to flow into the mold cavity and ensure that the metal can fill the mold smoothly and evenly. In practical application, the sprue cup is usually installed at the top or side of the mold, and liquid metal is introduced into the mold cavity by connecting with the gating system. The design and manufacture of sprue cup need to be optimized according to different casting shapes, sizes and material requirements to ensure that it can meet the specific casting process requirements.

In the field of automobile manufacturing, sprue cups are used to produce precision castings such as engine cylinder block and cylinder head. These castings require high precision and quality. The high temperature stability and thermal shock resistance of the sprue cup can ensure the stable flow of molten metal at high temperature, thus improving the quality and production efficiency of castings. In the aerospace field, sprue cups are used to manufacture key components such as turbine blades and engine cases. The manufacture of these parts requires extremely high precision and quality control. The high strength and wear resistance of the sprue cup can meet these demanding technological requirements and ensure the high quality and high performance of the castings.

In the field of mechanical manufacturing, sprue cups are widely used to produce various mechanical parts, such as gears, crankshafts and connecting rods. The manufacture of these parts needs accurate size and shape control. The slag resistance and high temperature corrosion resistance of the sprue cup can ensure the purity and fluidity of molten metal at high temperature, thus improving the quality and service life of castings. In addition, the sprue cup is also used in the fields of electronics, medical instruments, precision instruments and so on, which provides reliable technical support for precision casting in these industries.

IV. Manufacture of Gate Cup

The production and manufacture of sprue cup is a complex process, involving many links and processes. First of all, it is necessary to choose suitable refractory raw materials, which need to have high refractoriness, high strength, good thermal shock resistance and slag resistance. Common refractory raw materials include high alumina clay, zircon sand and mullite. After careful screening and proportioning, these materials are made into the blank of the sprue cup by mechanical pressure forming technology.

The formed sprue cup blank needs to be sintered at high temperature to improve its strength and fire resistance. The sintering temperature is usually above 1600℃, and the specific temperature depends on the refractories used. During the sintering process, the organic matter and impurities in the material are burned off, and the combination between particles is closer, thus forming a finished sprue cup with high strength and high refractoriness. The sintered sprue cup needs to undergo strict size detection and quality inspection to ensure its size accuracy and quality meet the requirements.

In the production process, the size of the sprue cup can be customized according to the customer's requirements or the drawings provided. The dimensional tolerance of finished products can be controlled within 1%, which provides reliable dimensional guarantee for precision casting. In addition, the appearance of the sprue cup will be inspected during the production process, including dimensional tolerance, deformation, cracks, edge defects, molten holes and colors, so as to ensure the appearance quality and service performance of the product.

V. Packaging and Transportation of Gate Cup

The sprue cups are usually packed in cartons and wooden pallet or wooden cases. This packaging method can effectively protect the product from damage during transportation, and is convenient for loading, unloading and handling. In the process of transportation, it is necessary to choose a suitable mode of transportation, such as sea transportation, land transportation or air transportation, to ensure that the products can reach customers safely and on time. Common transport ports include Qingdao Port and Tianjin Port. These ports have perfect logistics facilities and rich transport experience, which can facilitate the export of products.

VI. Market advantages of sprue cups

(1) Quality control

The production enterprises of sprue cups usually have a perfect quality control system, and quality inspectors will conduct sampling inspection on all products, and unqualified products are strictly prohibited from leaving the factory. Quality inspection items include professional quality inspection, such as chemical analysis, physical performance test, and appearance inspection, such as dimensional tolerance, deformation, cracks, edge defects, melting holes and colors. This strict quality control measures can ensure that the quality and performance of products meet the requirements of customers and provide reliable guarantee for customers.

(2) Production capacity

The production enterprises of sprue cups usually have large production scale and capacity. Take an enterprise as an example, its annual production capacity exceeds 50,000 tons, and it has two sets of sprue cup production lines, three sets of mullite sand production lines and three sets of mullite powder production lines. This powerful production capacity can meet the order requirements of different customers and ensure the timely supply of products.

(3) Market coverage

The products of the sprue cup cover a wide market and are exported to many countries and regions, such as Korea, Germany, Japan, Indonesia, Italy, the United States, Vietnam, Israel, Turkey and Taiwan, China. This extensive market coverage not only shows that the quality and performance of products have been recognized by the international market, but also provides a broad space for the international development of enterprises.

(4) After-sales service

The manufacturers of sprue cups usually provide customers with comprehensive after-sales service, including product quality consultation, usage guidance and so on. If the product has quality problems, the enterprise will negotiate with the customer and compensate according to the evidence. This perfect after-sales service can enhance the trust and satisfaction of customers and lay a good foundation for the long-term development of enterprises.

VII. Future development of sprue cup

With the continuous development of precision casting technology, the market demand for sprue cups will continue to grow. In the future, the manufacturing of sprue cup will pay more attention to the research and development of materials and the innovation of technology. On the one hand, the enterprise will devote itself to developing higher-performance refractories to meet the casting needs under higher temperature and more complicated working conditions; On the other hand, enterprises will continue to optimize production technology, improve product quality and performance, reduce production costs and enhance market competitiveness.

In addition, with the enhancement of environmental awareness, the production and manufacture of sprue cups will pay more attention to environmental protection and sustainable development. Enterprises will adopt more environmentally friendly production technologies and materials, reduce pollution emissions in the production process and realize green production. At the same time, the enterprise will also strengthen the recycling of waste sprue cups, improve the utilization rate of resources and reduce the impact on the environment.

VIII. Conclusion

As a key component of precision casting technology, the sprue cup has excellent characteristics such as high temperature stability, thermal shock resistance, high strength, wear resistance, slag resistance, high temperature corrosion resistance and high temperature thermoplasticity. It has been widely used in automobile manufacturing, aerospace, machinery manufacturing, electronics, medical equipment and other fields. The production and manufacture of sprue cup is a complex process, involving many links such as raw material selection, molding, sintering and testing. Its production enterprises provide customers with high-quality and high-performance products through perfect quality control system, strong production capacity, wide market coverage and perfect after-sales service. In the future, with the development of precision casting technology and the enhancement of environmental awareness, the production and manufacture of sprue cups will pay more attention to material research and development, process innovation and environmental protection and sustainable development, providing more powerful support for the development of precision casting industry.
