In the field of precision casting, although the sprue cup is a relatively small component, its importance can not be underestimated. It is not only the "gateway" for liquid metal to enter the mold, but also the cornerstone to ensure the smooth casting process and the quality of the casting. This paper will deeply discuss many aspects of casting sprue cup, including its definition, function, material selection, production technology, quality control and its application and development prospect in modern casting industry.

I. Definition and basic function of casting sprue cup

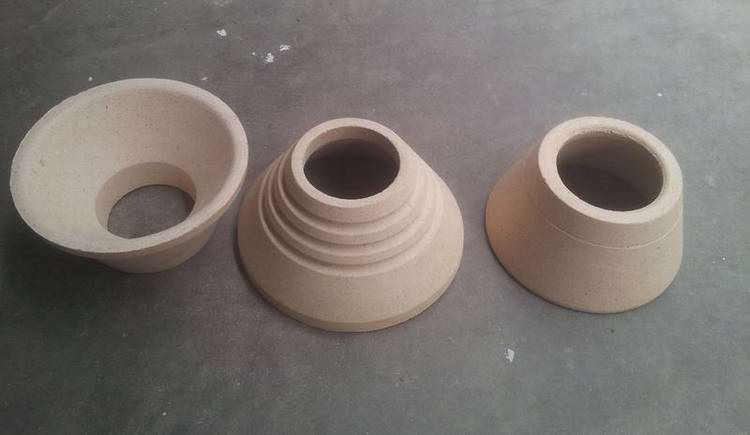

Casting gate cup is a kind of special equipment used in precision casting process, and its main function is to guide liquid metal to flow smoothly into the mold cavity. It is usually located at the front end of the gating system and connected with the gate, which plays a role in buffering, distributing and stabilizing the metal flow. By reasonably designing the shape and size of the sprue cup, the velocity, direction and filling process of molten metal can be effectively controlled, thus reducing the turbulence, splash and oxidation of molten metal during filling process and improving the quality and surface smoothness of castings.

II. Material Selection and Characteristics

The material selection of the pouring cup is very important, because it needs to withstand the scouring, erosion and thermal stress of high-temperature molten metal. Common materials include high alumina clay, zircon sand and mullite. These materials have the following excellent characteristics:

(1) High temperature stability

The sprue cup needs to withstand high temperature environment during use, so the material must have good high temperature stability and will not be deformed, cracked or softened at high temperature. For example, the sprue cup made of high alumina clay can be kept stable at high temperature of 1670℃ to 1770℃, ensuring its structural integrity in the casting process.

(2) Thermal shock resistance

During the casting process, the sprue cup will undergo a rapid temperature change, from normal temperature to high temperature, and then from high temperature to room temperature. Therefore, materials need to have good thermal shock resistance, and can withstand such severe temperature fluctuations without cracking or peeling. This is helpful to prolong the service life of the sprue cup and reduce the production cost.

(3) High strength and wear resistance

Liquid metal will have a strong scouring effect on the sprue cup during the filling process, so the material needs to have high strength and wear resistance to resist the erosion and wear of molten metal. For example, the sprue cup made of zircon sand has high hardness and wear resistance, which can effectively resist the erosion of molten metal and maintain the shape and dimensional accuracy of the sprue cup.

(4) Slag resistance

In the casting process, molten metal may be mixed with some slag and impurities. The sprue cup should have good slag resistance, which can prevent slag from adhering to its surface, thus ensuring the purity of molten metal and reducing the possibility of surface defects and internal inclusions of castings.

III. Production Technology and Quality Control

The production process of casting sprue cup usually includes the following steps:

(1) Preparation of raw materials

Select suitable raw materials according to product requirements, such as high alumina clay and zircon sand, and carry out strict screening and testing to ensure the quality of raw materials meets the standards.

(2) Forming

The prepared raw materials are made into the blank of the sprue cup by mechanical pressure forming technology. It is necessary to accurately control the parameters such as pressure, temperature and time in the forming process to ensure the uniform density and accurate size of the blank.

(3) high-temperature sintering

The formed blank is put into a high-temperature kiln for sintering. It is very important to control the sintering temperature and time. Too high or too low temperature will affect the quality of the sprue cup. By high temperature sintering, the organic matter in the raw materials can be volatilized, and the combination between particles is closer, thus improving the strength and fire resistance of the sprue cup.

(4) Quality inspection

After firing, the sprue cup needs to undergo strict quality inspection, including appearance inspection, size measurement, strength test, fire resistance test and so on. Visual inspection mainly checks whether there are cracks, deformation, pores and other defects on the surface of the sprue cup; The dimension measurement ensures that it meets the design requirements, and the dimension tolerance is controlled within 1%; Strength test and fire resistance test verify whether it has enough strength and high temperature resistance. Only the sprue cups that have passed all the quality inspection can be sold at the factory.

IV. Application in Precision Casting

The sprue cup is widely used in precision casting, covering almost all metal parts that need to be produced by precision casting process. For example, in the aerospace field, many key components such as engine blades and turbine disks cannot be manufactured without high-quality sprue cups; In the automobile manufacturing industry, the casting of engine cylinder block, crankshaft, connecting rod and other parts also needs to use appropriate sprue cups to ensure the quality and performance of castings. In addition, the sprue cup also plays an indispensable role in the fields of machinery manufacturing, medical equipment and electronic equipment.

V. Future development trend

With the continuous progress of science and technology and the increasingly refined industrial manufacturing, the casting sprue cup is also developing and innovating. In the future, its development trend is mainly reflected in the following aspects:

(1) research and development of high-performance materials

Researchers are working hard to develop new materials with higher fire resistance, stronger thermal shock resistance and better slag resistance to meet the increasingly stringent casting process requirements. For example, by adding some special additives or adopting composite technology, the performance of the sprue cup can be further improved.

(2) Intelligent production

With the help of advanced sensor technology and automatic control system, the intelligence and automation of sprue cup production are realized. By real-time monitoring various parameters in the production process, such as temperature, pressure and molding speed, and accurately controlling them, production efficiency, product quality and consistency can be improved, and production costs and manual intervention can be reduced.

(3) Environmental protection and sustainable development

Under the background of increasingly strict environmental protection policies, the foundry industry is also seeking more environmentally friendly production methods. For the production of sprue cups, more recyclable materials, energy-saving production equipment and more environmentally friendly production processes may be used in the future to reduce the impact on the environment and achieve sustainable development.

VI. Conclusion

Although the pouring cup is small, its importance in the field of precision casting is self-evident. It is not only related to the quality and performance of castings, but also directly affects the efficiency and cost of the whole casting process. By deeply understanding the material characteristics, production technology, quality control and application fields of the sprue cup, we can make better use of this key component and promote the development of the precision casting industry. In the future, with the continuous progress and innovation of technology, the casting sprue cup is expected to make greater breakthroughs in performance and application scope, and make greater contributions to the high-quality development of industrial manufacturing.
