The design of sprue cup has an extremely important influence on the quality of castings, which is embodied in the following aspects:

I. Shape and size of sprue cup

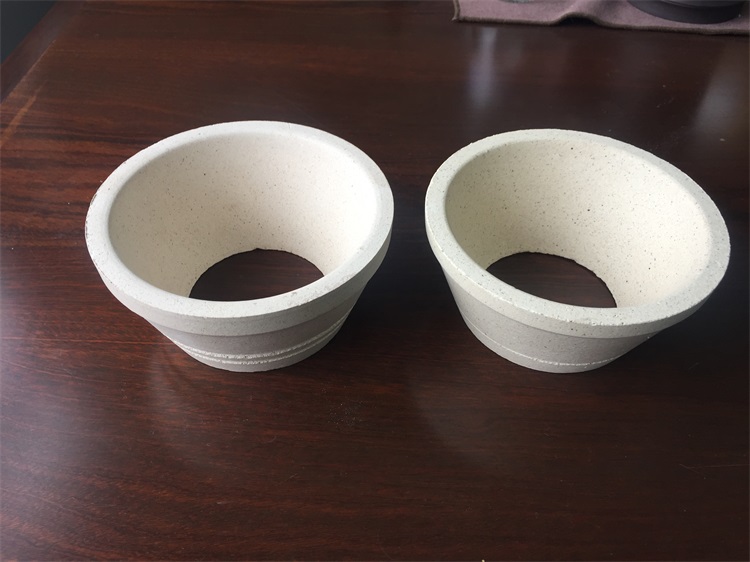

Buffering and flow rate control: the pouring cup is usually funnel-shaped, which can effectively buffer the flow rate of molten metal and reduce the splash and impact of molten metal during mold filling. If the size design of the sprue cup is unreasonable, it may lead to too fast or too slow flow rate of molten metal, which may lead to casting defects.

Filling stability: the size and shape of the sprue cup will affect the filling stability of molten metal. For example, the large sprue cup can reduce the consumption of molten metal, shorten the pouring time, make the filling speed more uniform, and avoid the phenomenon of sand washing caused by too fast flow rate.

II. Material and structure of sprue cup

Fire resistance: the material of the sprue cup must have good high-temperature stability and thermal shock resistance to prevent deformation or cracking at high temperature. For example, the use of high alumina clay or zircon sand can significantly improve the fire resistance of the sprue cup.

Slag resistance: the inner surface design and material selection of the sprue cup can reduce the slag in the molten metal from entering the mold. Some new sprue cups are designed with filtering function, which can effectively remove inclusions in molten metal, thus reducing slag inclusion and inclusion defects.

III. Installation and cooperation of sprue cup

Coordination with the gating system: The sprue cup needs to be closely coordinated with the gating system (such as sprue and runner) to ensure that molten metal can flow into the cavity smoothly. If it is not properly matched, it may lead to the disturbance of molten metal, and then lead to defects such as sand holes and blowholes.

Installation stability: The installation of the sprue cup must be firm to avoid position deviation caused by vibration or impact during pouring. In some designs, legs with adjustable height are used to ensure the stability of the sprue cup.

IV. Optimal design of sprue cup

Adjustable design: some new sprue cups are designed with adjustable liquid outlets, which can flexibly adjust the flow and velocity of molten metal according to different pouring requirements. This design can significantly improve the quality of castings and the flexibility of production.

Computer simulation and optimization: By optimizing the design of sprue cup through computer simulation technology (such as MAGMA software), the filling process and temperature distribution of molten metal can be predicted, thus reducing the defects of castings.

V. Specific impact on casting quality

Reduce defects: A reasonably designed sprue cup can reduce the phenomena of secondary oxidation, gas entrainment and sand washing of molten metal, thus significantly reducing the defects such as porosity, slag inclusion and cold insulation of castings.

Improve the utilization rate of metal: the optimized design of sprue cup can reduce the waste of molten metal, improve the utilization rate of molten metal, and thus reduce the production cost.

Improve production efficiency: the design of large sprue cup can shorten pouring time, improve production efficiency, and reduce production delay caused by improper gating system design.

VI. Summary

The design of sprue cup has a direct and far-reaching influence on the quality of castings. By optimizing the shape, size, material and installation mode of sprue cup, casting defects can be significantly reduced, and metal utilization rate and production efficiency can be improved. Therefore, in the casting process design, the design of sprue cup must be paid full attention to.
