Mullite sand is an important material widely used in the field of precision casting, which provides reliable support for casting process with its excellent physical and chemical characteristics. This paper will introduce in detail the performance characteristics of mullite sand, its application in precision casting and its advantages.

I. Characteristics of Mullite Sand

Mullite sand is mainly composed of mullite minerals, and its chemical composition mainly includes alumina (ALO) and silica (SiO₂), but also contains a small amount of impurities such as iron oxide (Fe₂O₃) and titanium oxide (TiO₂). According to different grades, the alumina content of mullite sand is usually between 42% and 45%, while the silica content is around 50% and 53%. These chemical compositions give mullite sand excellent fire resistance and chemical stability.

Mullite sand has a high fire resistance, and its minimum fire resistance temperature can reach above 1700℃, and some high-grade products can even reach 1770℃. This high refractoriness makes it stable in high temperature environment without melting or deformation, thus ensuring the integrity and accuracy of the casting mold. In addition, the hardness of mullite sand is high, and the Mohs hardness is between 7 and 8, which means that it has good wear resistance and corrosion resistance, and can withstand the impact and friction of molten metal during casting.

The bulk density of mullite sand is also relatively high, generally between 2.45 and 2.60 g/cm³. High density not only helps to improve the strength and stability of the mold, but also reduces the amount of materials and production costs to a certain extent. At the same time, the dust content of mullite sand is extremely low, with the maximum not exceeding 0.1%, which is not only conducive to improving the working environment of foundry, reducing dust pollution, but also avoiding the adverse effects of dust on casting quality, such as sand holes, air holes and other defects.

The thermal expansion coefficient of mullite sand is small, which means that it will not change too much when the temperature changes, thus ensuring the dimensional accuracy and stability of the mold. This is especially important for precision casting, because precision casting requires extremely high dimensional accuracy of castings, and any slight dimensional deviation may lead to unqualified castings. These properties of mullite sand make it an ideal shell and molding material in precision casting.

II. application of mullite sand in precision casting

Mullite sand is mainly used as shell and molding material in precision casting, especially in lost wax casting, silica sol casting and other processes. In these processes, mullite sand is used to make the outer layer of casting mold, and its fire resistance and stability can ensure that the mold remains intact during the pouring process of high-temperature molten metal without cracking or deformation.

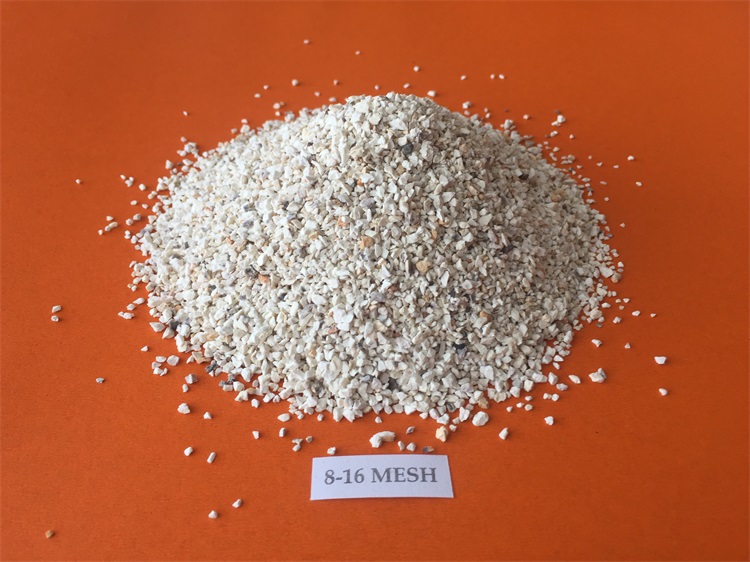

The particle size distribution of mullite sand also has an important influence on casting quality. According to different casting requirements, the grain size of mullite sand can range from coarse 8-16 mesh to fine -325 mesh. Coarse-grained mullite sand (such as 16-30 mesh and 30-60 mesh) is usually used to make molds for large castings, because they can provide enough strength and permeability to ensure the smooth flow of molten metal and exhaust gas during pouring. Fine-grained mullite sand (for example, -200 mesh and -325 mesh) is suitable for manufacturing small precision castings. These fine-grained sand grains can fill the fine parts of the mold and improve the surface accuracy and detail expression ability of the mold.

The application of mullite sand in precision casting is not limited to making molds, but also can be used to make casting coatings. Casting coating can further improve the surface quality and fire resistance of mold, reduce the adhesion between molten metal and mold, and thus improve the surface smoothness and quality of castings. In addition, mullite sand can also be used to make casting filler and fill some parts of the mold to improve the structure and performance of the mold.

Mullite sand is suitable for precision casting of various metals, including stainless steel, alloy steel, carbon steel, heat-resistant steel, titanium alloy, nickel alloy, aluminum alloy, cast iron and cast copper. Mullite sand can meet the casting requirements for both large castings and small precision castings, ensuring the quality and accuracy of castings.

III. Advantages of Mullite Sand

Mullite sand has many advantages in precision casting, which are not only reflected in improving the quality of castings, but also improving production efficiency and economic benefits.

First of all, the high refractoriness and stability of mullite sand enable the mold to maintain good performance at high temperature, reduce the damage and deformation of the mold, and thus improve the service life of the mold. This means that in the production process, enterprises do not need to change molds frequently, which reduces the use cost of molds and the risk of production interruption.

Secondly, the low dust content and good air permeability of mullite sand are helpful to improve the casting quality. Low dust content reduces the occurrence of casting defects such as sand holes and air holes, and improves the surface quality and internal quality of castings. Good air permeability ensures that molten metal can discharge gas smoothly during pouring, avoids the formation of air holes, and further improves the quality and performance of castings.

In addition, the high density and strength of mullite sand make the die have better dimensional accuracy and stability. This is especially important for precision casting, because precision casting requires extremely high dimensional accuracy of castings. The mold made of mullite sand can ensure the dimensional accuracy of castings within the allowable range, reduce the subsequent processing and dressing work, and improve production efficiency.

The thermal expansion coefficient of mullite sand is small, which means that the size of the mold changes little when the temperature changes, which further ensures the dimensional accuracy and stability of the casting. This is especially important for the production of large precision castings, because large castings require higher dimensional accuracy and are more susceptible to temperature changes during production.

Finally, the production technology of mullite sand is mature and the product quality is stable, which can meet the needs of different customers. At the same time, the supply of mullite sand is sufficient and the price is relatively stable, which provides reliable raw material supply guarantee for enterprises and reduces production costs and risks.

IV. Development trend of mullite sand

With the continuous development of precision casting technology, mullite sand is also constantly improving and innovating. On the one hand, researchers are trying to improve the refractoriness and purity of mullite sand to meet the requirements of higher temperature and more complicated casting process. By optimizing the selection of raw materials and production process, the impurity content in mullite sand can be further reduced and its fire resistance and chemical stability can be improved.

On the other hand, the particle size distribution of mullite sand is constantly optimized. With the improvement of precision casting requirements for the dimensional accuracy and surface quality of castings, the demand for fine-grained mullite sand will continue to increase. At the same time, researchers are also exploring the development of mullite sand with special particle size distribution to meet the requirements of different casting processes and casting shapes.

In addition, more and more attention has been paid to the environmental protection performance of mullite sand. In the production process, enterprises are striving to reduce dust and waste water emissions and adopt more environmentally friendly production processes and equipment. At the same time, researchers are also exploring the development of recyclable mullite sand to reduce resource waste and environmental pollution.

V. Conclusion

Mullite sand, as an important precision casting material, plays an irreplaceable role in the field of precision casting because of its excellent performance, wide application and obvious advantages. With the continuous development of precision casting technology and the improvement of casting quality requirements, the performance and application of mullite sand will continue to expand and deepen. In the future, mullite sand will play a greater role in improving casting quality, reducing production cost and protecting environment, and make greater contributions to the development of precision casting industry.
