Refractory clay brick plays an indispensable role in modern industrial high temperature furnaces. This special building material provides a reliable guarantee for various industrial production processes with its excellent high temperature resistance, corrosion resistance and good thermal stability. This paper will introduce the characteristics, classification, application and production process of refractory clay brick in detail.

I. Characteristics of refractory clay brick

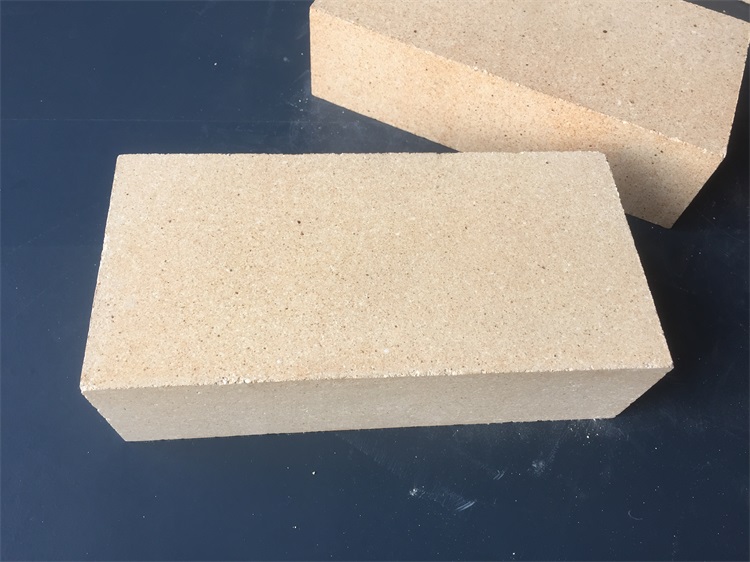

Refractory clay brick is a kind of refractory material with clay as the main raw material and fired at high temperature. It has the following remarkable characteristics:

(1) High temperature resistance

Fire-resistant clay bricks can remain stable in extremely high temperature environment, and their fire resistance is usually between 1580℃ and 1770℃. This feature enables it to withstand the erosion of high-temperature flames and molten substances in industrial furnaces.

(2) Corrosion resistance

In high temperature environment, many chemicals will become extremely active, causing serious corrosion to ordinary building materials. Because of its special chemical composition and structure, refractory clay brick can effectively resist the corrosion of acid, alkali and other chemicals, thus prolonging the service life of the furnace.

(3) Thermal stability

Fire-resistant clay brick has good thermal stability, can keep the structure intact under the condition of rapid temperature change, and is not prone to hot cracking or peeling. This characteristic is especially important for furnaces that need to be started and stopped frequently or have large temperature fluctuations.

(4) Wear resistance

In high temperature furnaces, material erosion and wear are common problems. The high hardness and wear resistance of refractory clay bricks enable them to effectively resist the wear of materials and reduce the loss of furnace lining.

II. Classification of refractory clay bricks

Refractory clay bricks can be classified according to different standards:

(1) Classification by chemical composition

Ordinary clay brick: the main component is clay, and the Al₂O₃ content is between 30% and 45%. This kind of brick has relatively low refractoriness and is suitable for general high temperature furnaces.

High alumina clay brick: The Al₂O₃ content is between 45% and 85%, which has higher fire resistance and better corrosion resistance, and is suitable for high temperature and high corrosion environment.

(2) Classification by shape

Straight brick: regular shape, used for straight parts such as furnace wall.

Arch brick: used for furnace top or arch structure, which can withstand greater pressure.

Wedge brick: used for furnace bottom or other parts that need special shape.

(3) Classification by purpose

Furnace wall brick: used for masonry of furnace wall, which plays the role of heat insulation and protection of furnace body.

Furnace top brick: used for building furnace top, which needs to withstand high temperature and pressure.

Furnace bottom brick: used for furnace bottom, it needs to have good wear resistance and corrosion resistance.

III. Application of refractory clay brick

Refractory clay bricks are widely used in various industrial fields. The following are some typical application scenarios:

(1) Iron and steel industry

In ironmaking blast furnace, steel-making converter, ladle and other equipment, refractory clay brick is used to build furnace lining, which can withstand the erosion and erosion of high-temperature molten metal.

(2) Non-ferrous metal industry

In smelting furnaces and refining furnaces of nonferrous metals such as copper, aluminum and zinc, refractory clay bricks can resist the corrosion of molten metal and prolong the service life of the furnace body.

(3) Building materials industry

In cement rotary kiln, glass melting kiln, ceramic kiln and other equipment, refractory clay brick is used for masonry of furnace wall, top and bottom, and can withstand high temperature and chemical erosion.

(4) Energy industry

In coke ovens, boilers, garbage incinerators and other equipment, refractory clay bricks are used to build furnace linings, which can withstand the erosion of high-temperature flames and smoke.

(5) Civil field

In domestic fireplaces, ovens and other equipment, refractory clay bricks are used for masonry of furnace walls and furnace bottoms, which can withstand high temperatures and provide good heat insulation effect.

IV. Production process of refractory clay brick

The production process of refractory clay brick includes the following main steps:

(1) Preparation of raw materials

The main raw material is clay, in addition, appropriate additives, such as limestone and dolomite, need to be added to improve the performance of bricks.

(2) batching and mixing

Mix all kinds of raw materials evenly according to a certain proportion to ensure that the chemical composition and physical properties of bricks meet the requirements.

(3) Forming

The mixed raw materials are put into a mold and pressed by a high-pressure forming machine to form a green brick.

(4) drying

Put the formed brick blank into a drying kiln for drying to remove excess water and prevent cracks during firing.

(5) firing

The dried green bricks are fired in a high-temperature kiln, and the temperature is usually between 1300℃ and 1500℃. During the firing process, the organic matter in the clay is burned off and the brick body gradually hardens.

(6) cooling and inspection

After firing, the bricks are taken out of the kiln and cooled naturally or quickly by air cooling. The cooled bricks need to undergo strict quality inspection to ensure that their performance meets the standards.

V. Future development of refractory clay brick

With the continuous progress of industrial technology, the performance requirements of refractory clay bricks are getting higher and higher. In the future, the development direction of refractory clay brick will include:

(1) high performance

By improving the raw material formula and production process, the fire resistance, corrosion resistance and thermal stability of refractory clay bricks are further improved.

(2) Energy conservation and environmental protection

Develop more energy-saving production processes to reduce energy consumption and environmental pollution.

(3) Multifunctional

Develop fire-resistant clay bricks with multi-functions such as heat insulation, thermal insulation and thermal shock resistance to meet the needs of different industrial scenes.

As an important refractory material, refractory clay brick plays an irreplaceable role in industrial production. With the continuous progress of technology, its performance and application scope will be further expanded, providing more reliable guarantee for industrial production.
