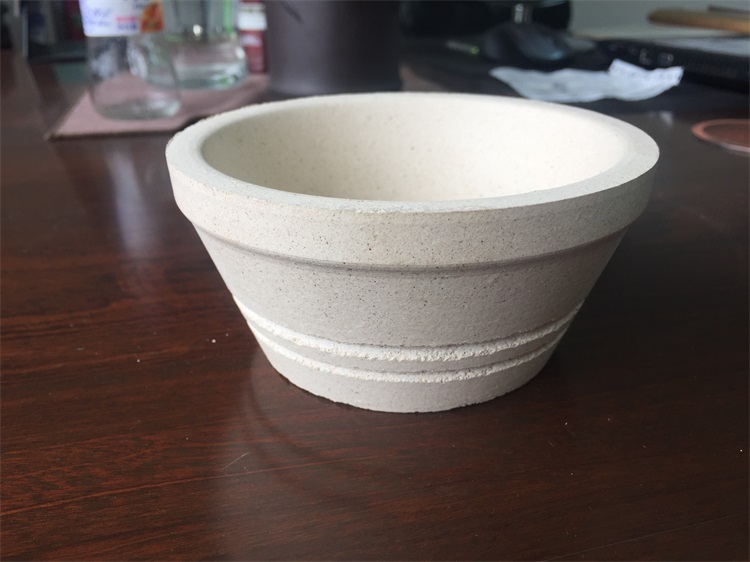

The sprue cup plays an important role in the casting process. It is the key channel for liquid metal to enter the mold cavity, and its design and performance directly affect the quality and production efficiency of castings. The following are the specific functions of the sprue cup in the casting process:

I, guiding molten metal to flow into a mold

The sprue cup is the first barrier for liquid metal to enter the mold. It smoothly introduces the molten metal poured from the ladle into the pouring system of the mold (such as sprue, runner, etc.) to ensure that the molten metal can fill the mold cavity smoothly and evenly. If there is no sprue cup, molten metal may splash, oxidize or turbulent due to direct impact on the mold, resulting in surface defects or internal quality problems of the casting.

II. Impact of buffered molten metal

Liquid metal has high temperature and kinetic energy in the pouring process, and direct impact on the mold may cause damage to the mold, and even cause the mold to crack or deform. The sprue cup can effectively buffer the impact of molten metal, reduce the direct impact on the mold and protect the integrity of the mold, thus improving the quality and production efficiency of the casting.

III. Stabilizing the flow of molten metal

The design of the sprue cup can control the flow rate and direction of molten metal, so that it can keep a steady flow when entering the mold. By reasonably designing the shape and size of the sprue cup, unstable phenomena such as vortex, splash or turbulence can be avoided when molten metal flows into the mold, thus ensuring that molten metal can evenly fill the mold cavity and reducing casting defects such as blowholes and slag inclusion.

IV. Filtering impurities in molten metal

In the casting process, some impurities (such as dross, scale, etc.) may be entrained in the liquid metal. The sprue cup can preliminarily filter the molten metal through its internal structure (such as filter screen, ceramic filter, etc.) to remove some impurities, thus improving the purity of molten metal, reducing slag inclusion defects in castings and improving the internal quality of castings.

V. Adjusting the temperature of molten metal

The material of sprue cup usually has high heat capacity and good thermal conductivity. When the molten metal flows into the sprue cup, the sprue cup can absorb some heat, so that the temperature of the molten metal is slightly reduced, thus reducing the thermal shock of the molten metal when it enters the mold. This temperature regulation is helpful to improve the uniformity of cooling rate of castings and reduce the occurrence of defects such as hot cracks.

VI. Controlling the pouring amount of molten metal

The capacity of the sprue cup can be designed according to the size of the casting and the requirements of the pouring process. By controlling the capacity of the sprue cup, the amount of metal liquid poured each time can be accurately controlled to avoid too much or too little metal liquid, thus ensuring the filling quality of castings. This is especially important for the production of large castings or castings with complex shapes.

VII. Preventing splashing and oxidation of molten metal

Splashing and oxidation of molten metal are common problems during pouring. The sprue cup can reduce the contact area between molten metal and air through its shape and structure design, thus reducing the oxidation degree of molten metal. At the same time, the buffer effect of the sprue cup can also reduce the splash of molten metal, improve the utilization rate of molten metal and reduce waste.

VIII. Protecting the safety of operators

The use of sprue cup can also protect the safety of operators to a certain extent. Because the pouring cup can buffer the impact of molten metal and reduce splashing, the danger faced by operators in the pouring process will be greatly reduced, thus improving the safety of casting production.

IX. Summary

The sprue cup plays an important role in many aspects in the casting process, including guiding the molten metal into the mold, buffering the impact, stabilizing the flow, filtering impurities, adjusting the temperature, controlling the pouring amount, preventing splashing and oxidation, and protecting the safety of operators. These functions together ensure the smooth casting process and improve the quality and production efficiency of castings. Therefore, the sprue cup is an indispensable key component in precision casting technology.
