In modern industrial production, precision casting technology plays a vital role, and zircon sand, as a key raw material, provides a solid foundation for the realization of this technology. This paper will introduce in detail the characteristics, application and importance of zircon sand in industrial field.

I. Introduction of zircon sand

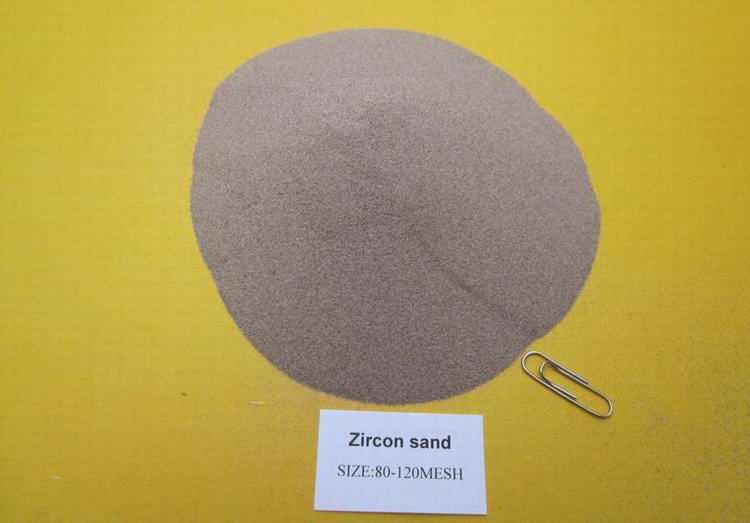

Zircon Sand is a natural mineral material with zirconium dioxide (ZrSiO₄) as the main component. Its particle size is usually between 80 and 120 meshes, and it has high purity, high specific gravity, high hardness and excellent fire resistance. Performance zircon sand has a specific gravity of about 4.68-4.71, a hardness of 7.8 Mohs hardness and a melting point of 2,550℃ (4,000 F), which makes it show excellent stability in high temperature environment.

II. Characteristics of zircon sand

(1) High purity

The purity of zircon sand is one of its most important characteristics. High-purity zircon sand can effectively reduce the influence of impurities on the casting process and improve the quality and accuracy of castings. For example, the content of ZrO+₂HfO₂ in its chemical composition can reach more than 66%, while the contents of impurities such as Fe₂O₃ and TiO₂ are strictly controlled at a low level.

(2) High fire resistance

Zircon sand has a very high melting point and can withstand the test of extreme high temperature. In the process of precision casting, castings often need to be molded at high temperature. The high fire resistance of zircon sand can ensure that it does not change chemically at high temperature, thus ensuring the dimensional accuracy and surface quality of castings.

(3) Good physical properties

Zircon sand has a high bulk density (170-180 lb/ft; 2700 kg/m) and low angle of repose (30 degrees), which makes it evenly distributed in the casting process and forms a stable molding sand structure. In addition, the refractive index of zircon sand is between 1.93 and 2.01, which makes it potentially valuable in some optical applications.

III. Application of zircon sand

(1) Precision casting

Zirconium sand is widely used in the field of precision casting. It is mainly used to manufacture molding sand and core sand of castings, which can provide good dimensional accuracy and surface smoothness for castings. For example, in aerospace, automobile manufacturing and other industries, many complex metal parts need to be produced by precision casting. Zircon sand is an ideal molding sand material because of its high purity and high fire resistance.

(2) Casting coating

In addition to being used as molding sand material, zircon sand can also be used to make casting coatings. Casting coating can protect the casting surface and prevent the direct contact between molten metal and molding sand, thus reducing the defects and sand holes on the casting surface. The high purity and good physical properties of zircon sand make it perform well in casting coating, which can effectively improve the quality and service life of castings.

(3) Special refractory materials

The high fire resistance and chemical stability of zircon sand make it also have important applications in the field of special refractories. It can be used to manufacture refractory products such as high-temperature furnace lining and refractory bricks, and can withstand the double tests of extreme high temperature and chemical corrosion. For example, in high-temperature equipment such as glass melting furnaces and ceramic firing kilns, refractories made of zircon sand can effectively protect the furnace body and prolong the service life of the equipment.

(4) Ceramic industry

In the ceramic industry, zircon sand can be used to make ceramic glaze and ceramic body. Its high purity and good physical properties can improve the quality and performance of ceramic products. For example, when manufacturing high-end ceramic products, adding proper amount of zircon sand can improve the gloss, wear resistance and thermal shock resistance of ceramics.

IV. Quality control of zircon sand

In order to ensure the quality of zircon sand, manufacturers usually establish a strict quality control system. Quality inspectors will sample each batch of products, including particle size distribution, chemical analysis, physical properties, mineral composition and pH value. Only products that pass strict inspection can leave the factory, thus ensuring that users can obtain high-quality and high-performance zircon sand products.

V. Packaging and Transportation of Zircon Sand

Zirconium sand is usually packaged in 25kg plastic woven bags or kraft paper bags, and can also be packaged in large bags (1000-1500kg bags) according to customer requirements. During transportation, a 20-foot container can carry 24 tons and a 40-foot container can carry 28 tons. This packaging and transportation method can effectively protect zircon sand and ensure that it is not damaged during transportation.

VI. Market and development trend of zircon sand

With the continuous development of global industry, the demand for zircon sand in the fields of precision casting, special refractories and ceramic industry continues to grow. Especially in aerospace, automobile manufacturing and other high-end manufacturing industries, the demand for high-quality zircon sand is more urgent. In the future, zircon sand market will develop towards high purity, high performance and environmental protection. Manufacturers need to constantly improve product quality and optimize production technology to meet the market demand for high-quality zircon sand.

VII. Conclusion

As an important industrial material, zircon sand plays an irreplaceable role in the fields of precision casting, special refractories and ceramic industry. Its high purity, high fire resistance, good physical properties and strict quality control system make it an ideal casting material. With the continuous progress of industrial technology, the application scope of zircon sand will be further expanded, and its market prospect will be broader.
